Android - 过滤器相干

热度:42   发布时间:2016-04-28 01:26:19.0
Android -- 过滤器相关

我们来看一个配置间的配置内容,AndroidManifest.xml

<?xml version="1.0" encoding="utf-8"?><manifest xmlns:android="http://schemas.android.com/apk/res/android"    package="com.example.intent"    android:versionCode="1"    android:versionName="1.0" >    <uses-sdk        android:minSdkVersion="8"        android:targetSdkVersion="21" />    <application        android:allowBackup="true"        android:icon="@drawable/ic_launcher"        android:label="@string/app_name"        android:theme="@style/AppTheme" >        <activity            android:name=".MainActivity"            android:label="@string/app_name" >            <intent-filter>                <action android:name="android.intent.action.MAIN" />                <category android:name="android.intent.category.LAUNCHER" />            </intent-filter>        </activity>        <activity            android:name=".BMainActivity"            android:exported="false"            android:label="@string/title_activity_bmain" >            <intent-filter>                <category android:name="android.intent.category.DEFAULT" />                <action android:name="com.example.intent.BMainActivity" />            </intent-filter>        </activity>        <activity            android:name=".BMainActivity1"            android:label="@string/title_activity_bmain_activity1" >            <intent-filter >                <category android:name="android.intent.category.DEFAULT"/>                <action android:name="com.example.intent.BMainActivity" />            </intent-filter>        </activity>    </application></manifest>

看过上一篇博客后http://blog.csdn.net/gaopeng0071/article/details/45077203,你会发现这里的隐式Intent是不是配置的有问题啊,你看41行与32行的android:name配置相同唉~~,是的是相同,那么我们就来看看,同一android:name跳转不同的activity时,会是什么样子的呢,我们运行下程序,如图。
这里写图片描述

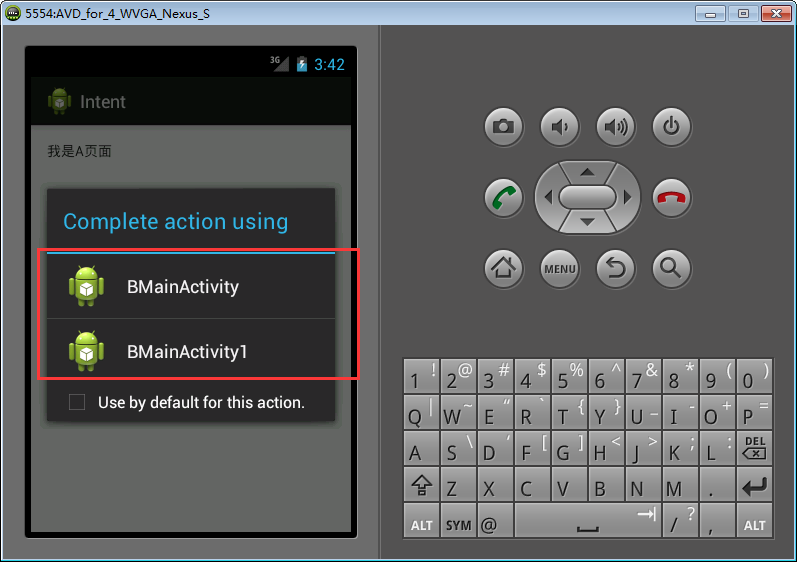

看到了图片中,Android平台为我们弹窗了2个activity,让我们去选择跳转哪一个。嘿嘿,这么用没错~~~

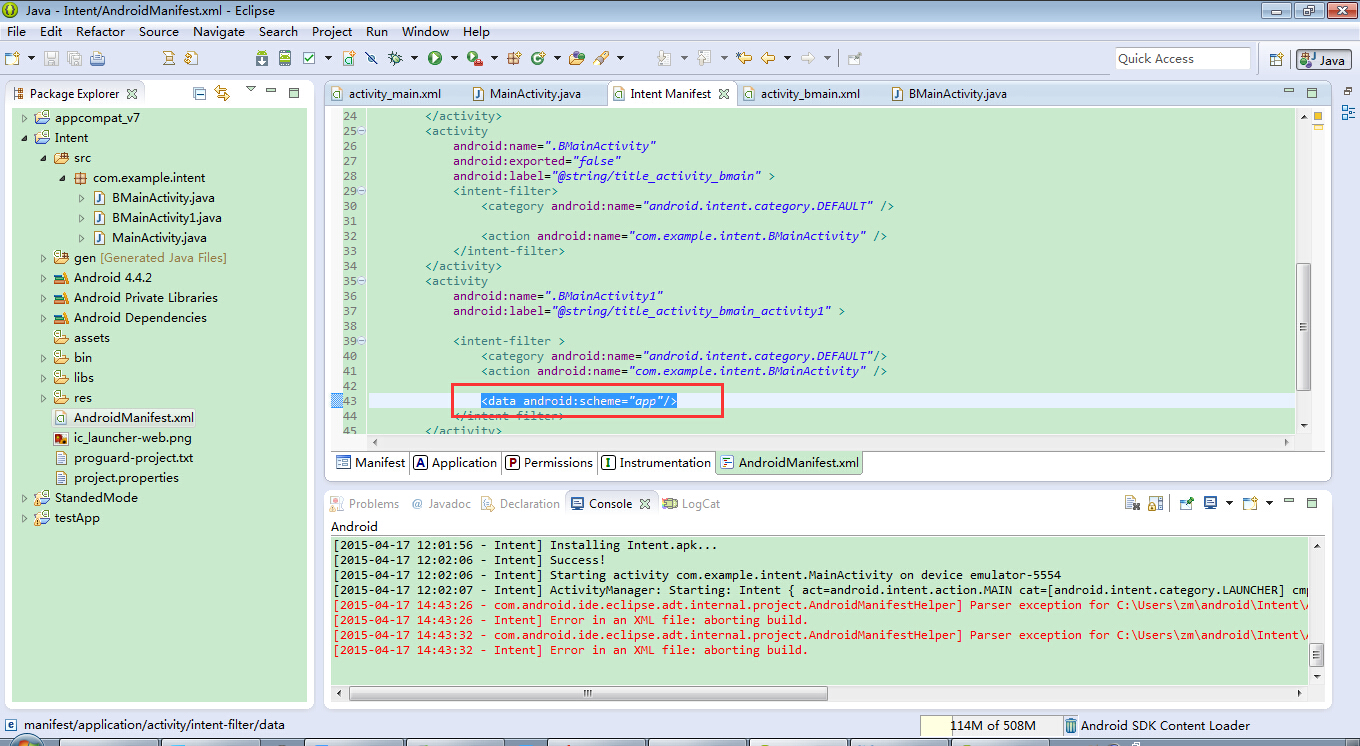

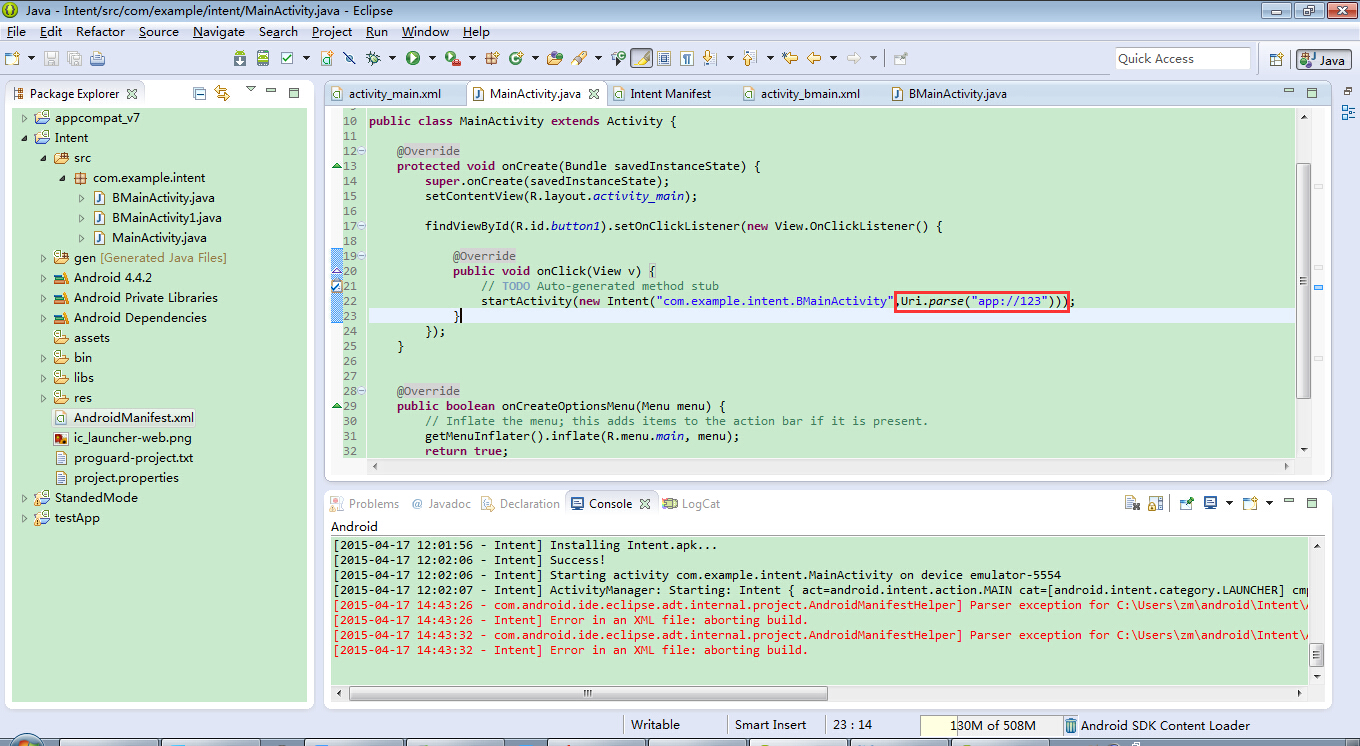

那如果我们想在后台指定一个怎么做呢,在不修改android:name的前提下,这里就引入了data,进行匹配(类似正则表达式的匹配)。
这里写图片描述,
这里写图片描述
这时我们再条点击跳转的时候,会默认跳转到按照规则匹配到的activity。

Data用法

<data android:host="string"      android:mimeType="string"      android:path="string"      android:pathPattern="string"      android:pathPrefix="string"      android:port="string"      android:scheme="string" />

API描述

Adds a data specification to an intent filter. The specification can be just a data type (the mimeType attribute), just a URI, or both a data type and a URI. A URI is specified by separate attributes for each of its parts:
scheme://host:port/path or pathPrefix or pathPattern
These attributes are optional, but also mutually dependent: If a scheme is not specified for the intent filter, all the other URI attributes are ignored. If a host is not specified for the filter, the port attribute and all the path attributes are ignored.

更多内容详见 Android API
