- 主题:用户界面之SeekBar(拖动条)
-
SeekBar拖动条(实例):
activity_main.xml:
<?xml version="1.0" encoding="utf-8"?> <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android" android:orientation="vertical" android:layout_width="fill_parent" android:layout_height="fill_parent" > <SeekBar android:id="@+id/seek" android:layout_width="fill_parent" android:layout_height="wrap_content" android:max="100" android:progress="50" /> <TextView android:id="@+id/progress" android:layout_width="fill_parent" android:layout_height="wrap_content" /> <TextView android:id="@+id/tracking" android:layout_width="fill_parent" android:layout_height="wrap_content" /> </LinearLayout>
MainActivity.java:
import android.app.Activity;import android.os.Bundle;import android.widget.SeekBar;import android.widget.SeekBar.OnSeekBarChangeListener;import android.widget.TextView;public class MainActivity extends Activity { SeekBar mSeekBar; TextView mProgressText; TextView mTrackingText; @Override public void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.activity_main); //取得SeekBar对象 mSeekBar = (SeekBar) findViewById(R.id.seek); mSeekBar.setOnSeekBarChangeListener(new Listener()); mProgressText = (TextView) findViewById(R.id.progress); mTrackingText = (TextView) findViewById(R.id.tracking); } class Listener implements OnSeekBarChangeListener{ public void onProgressChanged(SeekBar seekBar, int progress, boolean fromUser) { //progress为当前数值的大小 mProgressText.setText("当前值:" + progress); } @Override //在拖动中会调用此方法 public void onStartTrackingTouch(SeekBar seekBar) { mTrackingText.setText("正在调节"); } @Override //停止拖动 public void onStopTrackingTouch(SeekBar seekBar) { mTrackingText.setText("停止调节"); } }}

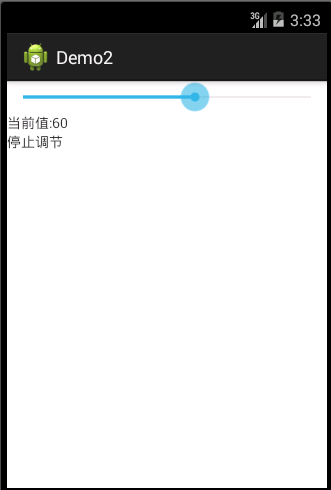

运行结果:
