本文参考Android应用程序组件Content Provider在应用程序之间共享数据的原理分析http://blog.csdn.net/luoshengyang/article/details/6967204和《Android系统源代码情景分析》，作者罗升阳。

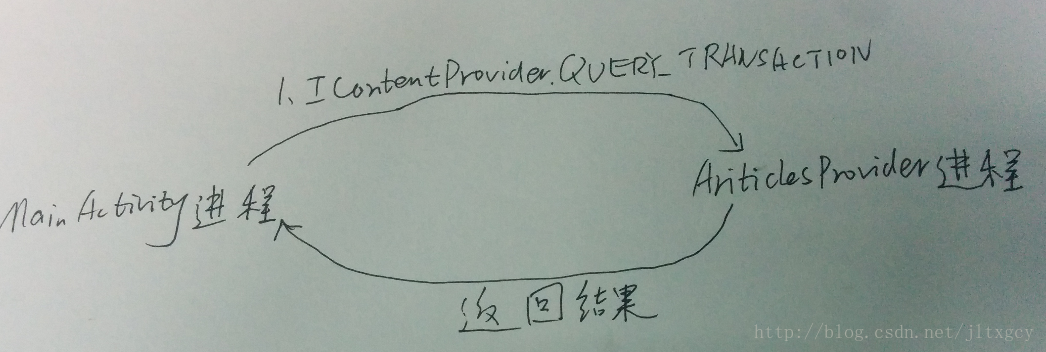

0、总图流程图如下：

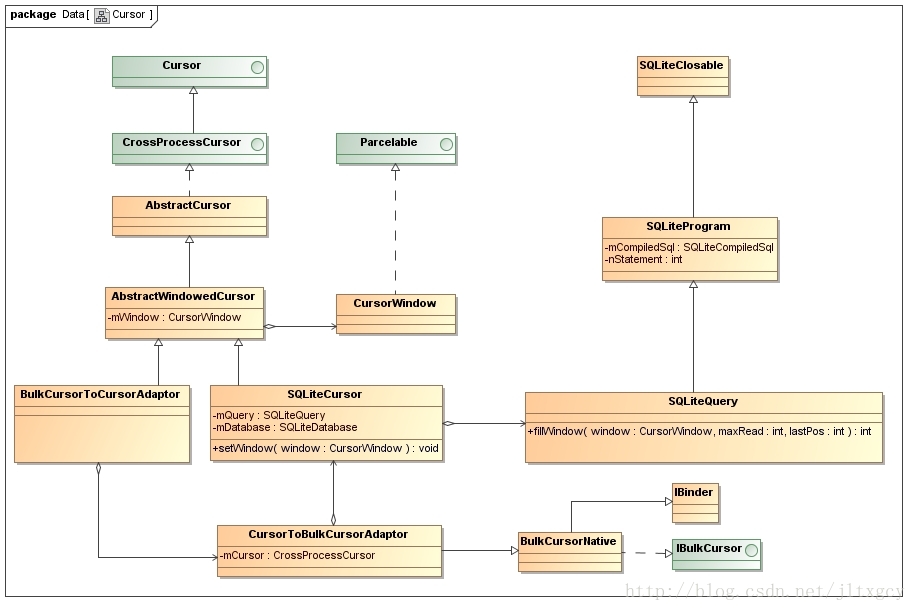

总体类图：
1、MainActivity进程向AriticlesProvider进程发送IContentProvider.QUERY_TRANSACTION

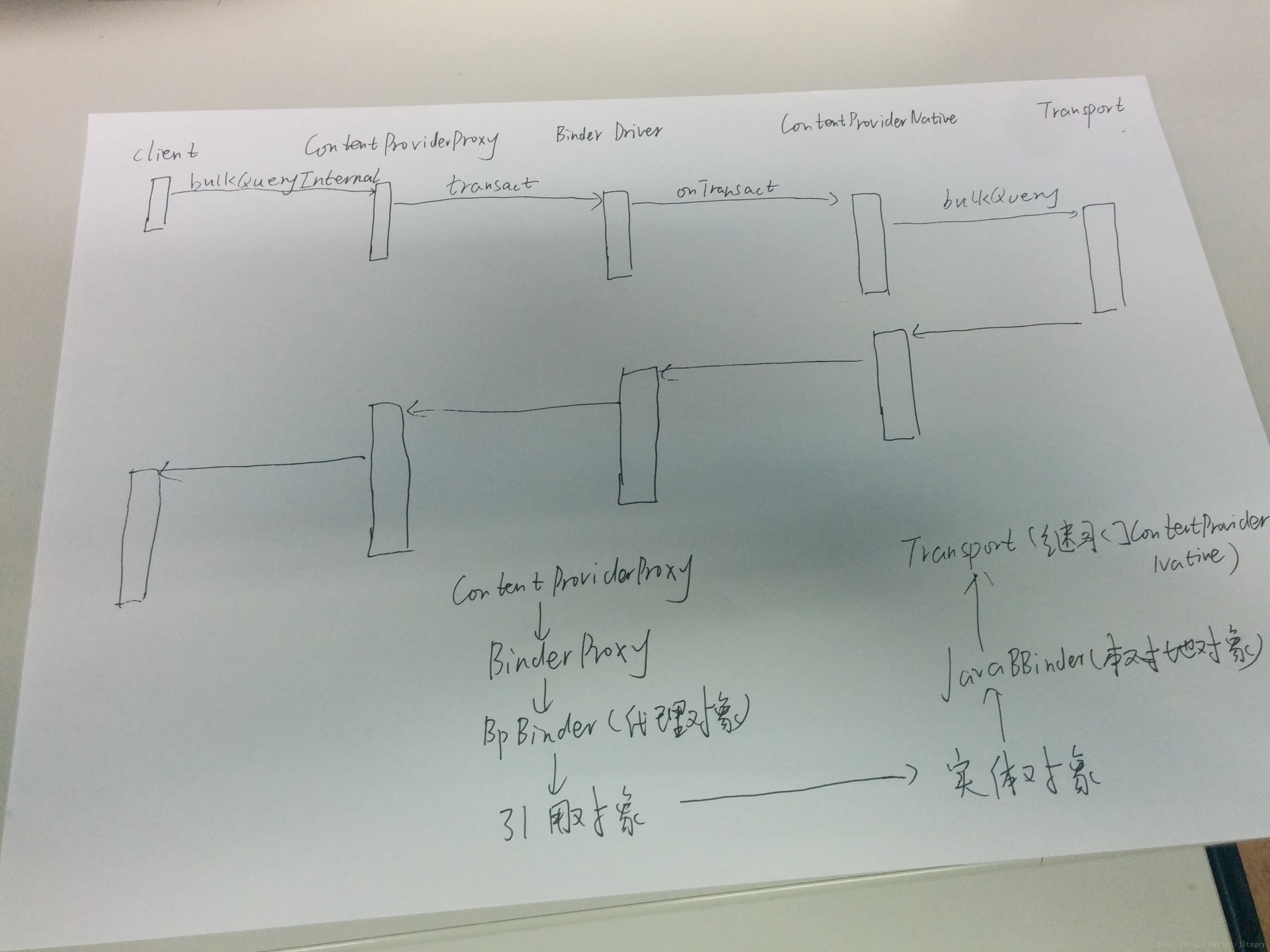

如图：第一步
~/Android/frameworks/base/core/java/android/content
----ContentProviderNative.java
final class ContentProviderProxy implements IContentProvider { ...... public Cursor query(Uri url, String[] projection, String selection, String[] selectionArgs, String sortOrder) throws RemoteException { //TODO make a pool of windows so we can reuse memory dealers CursorWindow window = new CursorWindow(false /* window will be used remotely */); BulkCursorToCursorAdaptor adaptor = new BulkCursorToCursorAdaptor(); IBulkCursor bulkCursor = bulkQueryInternal( url, projection, selection, selectionArgs, sortOrder, adaptor.getObserver(), window, adaptor); if (bulkCursor == null) { return null; } return adaptor; } ...... （1）创建了CursorWindow对象。 （2）创建类BulkCursorToCursorAdaptor对象。
（3）调用bulkQueryInternal。
~/Android/frameworks/base/core/java/android/content
----ContentProviderNative.java
final class ContentProviderProxy implements IContentProvider{ ...... private IBulkCursor bulkQueryInternal( Uri url, String[] projection, String selection, String[] selectionArgs, String sortOrder, IContentObserver observer, CursorWindow window, BulkCursorToCursorAdaptor adaptor) throws RemoteException { Parcel data = Parcel.obtain(); Parcel reply = Parcel.obtain(); data.writeInterfaceToken(IContentProvider.descriptor); url.writeToParcel(data, 0); int length = 0; if (projection != null) { length = projection.length; } data.writeInt(length); for (int i = 0; i < length; i++) { data.writeString(projection[i]); } data.writeString(selection); if (selectionArgs != null) { length = selectionArgs.length; } else { length = 0; } data.writeInt(length); for (int i = 0; i < length; i++) { data.writeString(selectionArgs[i]); } data.writeString(sortOrder); data.writeStrongBinder(observer.asBinder()); window.writeToParcel(data, 0); // Flag for whether or not we want the number of rows in the // cursor and the position of the "_id" column index (or -1 if // non-existent). Only to be returned if binder != null. final boolean wantsCursorMetadata = (adaptor != null); data.writeInt(wantsCursorMetadata ? 1 : 0); mRemote.transact(IContentProvider.QUERY_TRANSACTION, data, reply, 0); DatabaseUtils.readExceptionFromParcel(reply); IBulkCursor bulkCursor = null; IBinder bulkCursorBinder = reply.readStrongBinder(); if (bulkCursorBinder != null) { bulkCursor = BulkCursorNative.asInterface(bulkCursorBinder); if (wantsCursorMetadata) { int rowCount = reply.readInt(); int idColumnPosition = reply.readInt(); if (bulkCursor != null) { adaptor.set(bulkCursor, rowCount, idColumnPosition); } } } data.recycle(); reply.recycle(); return bulkCursor; } ......} 我们这里只关注window.writeToParcel(data, 0)。详细解释请看对应的博客或者图书。 如图：第二步，省略binder_transaction传输过程，因为上面已经分析过了。
如图：第三步
~/Android/frameworks/base/core/java/android/content
----ContentProviderNative.java
abstract public class ContentProviderNative extends Binder implements IContentProvider { ...... @Override public boolean onTransact(int code, Parcel data, Parcel reply, int flags) throws RemoteException { try { switch (code) { case QUERY_TRANSACTION: { data.enforceInterface(IContentProvider.descriptor); Uri url = Uri.CREATOR.createFromParcel(data); // String[] projection int num = data.readInt(); String[] projection = null; if (num > 0) { projection = new String[num]; for (int i = 0; i < num; i++) { projection[i] = data.readString(); } } // String selection, String[] selectionArgs... String selection = data.readString(); num = data.readInt(); String[] selectionArgs = null; if (num > 0) { selectionArgs = new String[num]; for (int i = 0; i < num; i++) { selectionArgs[i] = data.readString(); } } String sortOrder = data.readString(); IContentObserver observer = IContentObserver.Stub. asInterface(data.readStrongBinder()); CursorWindow window = CursorWindow.CREATOR.createFromParcel(data); // Flag for whether caller wants the number of // rows in the cursor and the position of the // "_id" column index (or -1 if non-existent) // Only to be returned if binder != null. boolean wantsCursorMetadata = data.readInt() != 0; IBulkCursor bulkCursor = bulkQuery(url, projection, selection, selectionArgs, sortOrder, observer, window); reply.writeNoException(); if (bulkCursor != null) { reply.writeStrongBinder(bulkCursor.asBinder()); if (wantsCursorMetadata) { reply.writeInt(bulkCursor.count()); reply.writeInt(BulkCursorToCursorAdaptor.findRowIdColumnIndex( bulkCursor.getColumnNames())); } } else { reply.writeStrongBinder(null); } return true; } ...... } } catch (Exception e) { DatabaseUtils.writeExceptionToParcel(reply, e); return true; } return super.onTransact(code, data, reply, flags); } ......} 其中，CursorWindow window = CursorWindow.CREATOR.createFromParcel(data);详细解释请看博客或者书。 如图：第四步
~/Android/frameworks/base/core/java/android/content
----ContentProvider.java
public abstract class ContentProvider implements ComponentCallbacks { ...... class Transport extends ContentProviderNative { ...... public IBulkCursor bulkQuery(Uri uri, String[] projection, String selection, String[] selectionArgs, String sortOrder, IContentObserver observer, CursorWindow window) { ...... Cursor cursor = ContentProvider.this.query(uri, projection, selection, selectionArgs, sortOrder); ...... return new CursorToBulkCursorAdaptor(cursor, observer, ContentProvider.this.getClass().getName(), hasWritePermission(uri), window); } ...... } ......} 主要做了以下几件事：（1）调用AriticlesProvider的query方法，获取了SQLiteCursor对象。
（2）由cursor和window对象，形成CursorToBulkCursorAdaptor对象。
如图，第五步
if (bulkCursor != null) { reply.writeStrongBinder(bulkCursor.asBinder()); if (wantsCursorMetadata) { reply.writeInt(bulkCursor.count()); reply.writeInt(BulkCursorToCursorAdaptor.findRowIdColumnIndex( bulkCursor.getColumnNames())); }} 传递CursorToBulkCursorAdaptor对象，如下图：
如图：第六步，省略binder_transaction传输过程，因为上面已经分析过了。
如图：第七步
~/Android/frameworks/base/core/java/android/content
----ContentProviderNative.java
IBulkCursor bulkCursor = null;IBinder bulkCursorBinder = reply.readStrongBinder();if (bulkCursorBinder != null) { bulkCursor = BulkCursorNative.asInterface(bulkCursorBinder); if (wantsCursorMetadata) { int rowCount = reply.readInt(); int idColumnPosition = reply.readInt(); if (bulkCursor != null) { adaptor.set(bulkCursor, rowCount, idColumnPosition); } }} bulkCursor为BulkCursorProxy对象如下：
adaptor.set(bulkCursor, rowCount, idColumnPosition);把BulkCursorProxy对象放入到BulkCursorToCursorAdaptor对象的句柄变量mBulkCursor中。
如图：第八步
return new CursorWrapperInner(qCursor, provider);最后返回了这个对象，qCursor是BulkCursorToCursorAdaptor对象，provider为ContentProviderProxy对象。
至此，我们形成了下图：
进程间通信结束了，下面我们分析如何应用匿名共享内存来传输数据。
在前面的一篇文章Android Content Provider的启动过程源代码分析http://blog.csdn.net/jltxgcy/article/details/37725749，最后获取了ContentProviderProxy对象，通过进程间通信来传递数据。
public class ArticlesAdapter { ...... private ContentResolver resolver = null; public ArticlesAdapter(Context context) { resolver = context.getContentResolver(); } ...... public Article getArticleByPos(int pos) { Uri uri = ContentUris.withAppendedId(Articles.CONTENT_POS_URI, pos); String[] projection = new String[] { Articles.ID, Articles.TITLE, Articles.ABSTRACT, Articles.URL }; Cursor cursor = resolver.query(uri, projection, null, null, Articles.DEFAULT_SORT_ORDER); if (!cursor.moveToFirst()) { return null; } int id = cursor.getInt(0); String title = cursor.getString(1); String abs = cursor.getString(2); String url = cursor.getString(3); return new Article(id, title, abs, url); }} 我们不分析详细过程，首先BulkCursorToCursorAdaptor对象里面的成员变量mBulkCursor通过进程间通信的方式，找到CursorToBulkCursorAdaptor对象，通过里面的成员函数mCursor查询出数据，并且保存在mWindows所指向的匿名共享内存。
而BulkCursorToCursorAdaptor通过成员变量mWindow来访问相同的匿名共享内存的。这样MainActivity就获取了数据。
