今天工作中又碰到个小问题，项目需要用到像Java Swing的JPanel一样带标题边框的布局，Android里没有类似控件，想到这个也不难，自己画了一个，是继承LinearLayout的一个自定义布局，当然，可以根据需要继承其他布局，基本都是一样的过程。
当然这个自定义布局有点瑕疵，就是标题占用了布局的一部分高度，子控件需要调整在布局中的垂直位置来避免和标题边框靠得过紧。
------------------本博客如未明正声明转载，皆为原创，转载请注明出处！------------------
下面贴代码：
/** * 一个像java swing的JPanel控件一样可以带标题边框的布局，可以指定标题位置、颜色、字体大小。 * 另外还可以控制边框大小和边框的颜色。但是，子控件指定垂直布局适应的时候，子控件看起来并不在布局中间， * 因为标题高度占用了布局的一部分垂直空间，使用时子控件需要指定Margin Top，否则可能和标题重叠。 * * This is a layout with title border, you can set a title just like Java-Swing JPanel. * and you can control the position, the color and the size of the title. In addition, * the border's color and size are always controlled. * * !FIXME: The title has its own height, so when the children's gravity set as [email protected] Gravity#CENTER} * or [email protected] Gravity#CENTER_VERTICAL} do not work well. * * @date 2013/09/24 * @author Wison */public class TitleBorderLayout extends LinearLayout { /** 默认情况下标题在总长度的1/10处显示 */ private static float DEFAULT_TITLE_POSITION_SCALE = 0.1f; public static int DEFAULT_BORDER_SIZE = 1; public static int DEFAULT_BORDER_COLOR = Color.GRAY; public static int DEAFULT_TITLE_COLOR = Color.BLACK; /** 边框面板的高度 */ private int mBorderPaneHeight ; private Paint mBorderPaint; private float mBorderSize; private TextPaint mTextPaint; private CharSequence mTitle; private int mTitlePosition; public TitleBorderLayout(Context context) { this(context, null); } /** * Construct a new TitleBorderLayout with default style, overriding specific style * attributes as requested. * @param context * @param attrs */ public TitleBorderLayout(Context context, AttributeSet attrs) { super(context, attrs); setWillNotDraw(false); mBorderPaint = new Paint(Paint.ANTI_ALIAS_FLAG); mTextPaint = new TextPaint(Paint.ANTI_ALIAS_FLAG); Resources res = getResources(); mTextPaint.density = res.getDisplayMetrics().density; TypedArray a = context.obtainStyledAttributes(attrs, R.styleable.TitleBorderLayout); mTitle = a.getText(R.styleable.TitleBorderLayout_title); int titleColor = a.getColor(R.styleable.TitleBorderLayout_titleTextColor, DEAFULT_TITLE_COLOR); mTextPaint.setColor(titleColor); float titleTextSize = a.getDimension(R.styleable.TitleBorderLayout_titleTextSize, 0); if (titleTextSize > 0) { mTextPaint.setTextSize(titleTextSize); } mTitlePosition = a.getDimensionPixelSize(R.styleable.TitleBorderLayout_titlePosition, -1); mBorderSize = a.getDimensionPixelSize(R.styleable.TitleBorderLayout_borderSize, DEFAULT_BORDER_SIZE); int borderColor = a.getColor(R.styleable.TitleBorderLayout_borderColor, DEFAULT_BORDER_COLOR); mBorderPaint.setColor(borderColor); a.recycle(); } /** * Get the color of border. * @return */ public int getBorderColor() { return mBorderPaint.getColor(); } /** * Set the color of border. * @param borderColor */ public void setBorderColor(int borderColor) { mBorderPaint.setColor(borderColor); requestLayout(); } /** * Get the size of border. * @return */ public float getBorderSize() { return mBorderSize; } /** * Set the size of border. * @param borderSize */ public void setBorderSize(float borderSize) { mBorderSize = borderSize; requestLayout(); } /** * Get the color of title. * @return */ public int getTitleColor() { return mTextPaint.getColor(); } /** * Set the color of title. * @param titleColor */ public void setTitleColor(int titleColor) { mTextPaint.setColor(titleColor); requestLayout(); } /** * Get the size of title. * @return */ public float getTitleTextSize() { return mTextPaint.getTextSize(); } /** * Set the size of title. * @param titleTextSize */ public void setTitleTextSize(float titleTextSize) { mTextPaint.setTextSize(titleTextSize); requestLayout(); } /** * Get the title. * @return */ public CharSequence getTitle() { return mTitle; } /** * Set the title which will be shown on the top of border pane. * @param title */ public void setTitle(CharSequence title) { mTitle = title; requestLayout(); } /** * Get the position of title. * @return */ public int getTitlePosition() { return mTitlePosition; } /** * Set the position of title where the paint will start to draw. * @param titlePosition */ public void setTitlePosition(int titlePosition) { mTitlePosition = titlePosition; requestLayout(); } /** * Get the height of border pane, it's different from the layout height! * @return */ public int getBorderPaneHeight() { return mBorderPaneHeight; } /** * Draw the title border * @param canvas */ @Override protected void onDraw(Canvas canvas) { super.onDraw(canvas); FontMetrics fm = mTextPaint.getFontMetrics(); final float titleHeight = fm.descent - fm.ascent; final CharSequence titleText = (mTitle == null) ? "" : mTitle; final float titleWidth = Layout.getDesiredWidth(titleText, mTextPaint); final int width = getWidth(); final int height = getHeight(); if (mTitlePosition <= 0 || mTitlePosition + titleWidth > width) { mTitlePosition = (int) (DEFAULT_TITLE_POSITION_SCALE * width); } final float topBorderStartY = titleHeight / 3f - mBorderSize / 2; mBorderPaneHeight = (int) Math.ceil(height - topBorderStartY); /* 画标题边框 */ // 上 canvas.drawRect(0, topBorderStartY, mTitlePosition, topBorderStartY + mBorderSize, mBorderPaint); canvas.drawText(titleText.toString(), mTitlePosition, titleHeight / 3 * 2f, mTextPaint); // 标题 canvas.drawRect(mTitlePosition + titleWidth, topBorderStartY, width, topBorderStartY + mBorderSize, mBorderPaint); // 左 canvas.drawRect(0, topBorderStartY, mBorderSize, height, mBorderPaint); // 右 canvas.drawRect(width - mBorderSize, topBorderStartY, width, height, mBorderPaint); // 下 canvas.drawRect(0, height - mBorderSize, width, height, mBorderPaint); } }
<declare-styleable name="TitleBorderLayout"> <!-- The title of BorderTitleLayout. --> <attr name="title" format="string" /> <!-- The size of title. --> <attr name="titleTextSize" format="dimension" /> <!-- The title start postion. --> <attr name="titlePosition" format="dimension" /> <!-- The color of title. --> <attr name="titleTextColor" format="reference|color" /> <!-- The size of border. --> <attr name="borderSize" format="dimension" /> <!-- The color of border. --> <attr name="borderColor" format="reference|color" /> </declare-styleable>

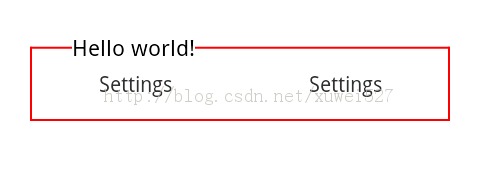

下面是效果图：
