Android-SlidingDrawer的应用介绍

Android--SlidingDrawer的使用介绍
SlidingDrawer类使用的时候主要包括两点：
1：handle：单击的按钮

2：content：抽屉中的内容，单击按钮时，抽屉的内容隐藏或显示

下面这段xml布局是摘自Google SDK帮助文档：

<SlidingDrawer     android:id="@+id/drawer"     android:layout_width="match_parent"     android:layout_height="match_parent"     android:handle="@+id/handle"     android:content="@+id/content">     <ImageView         android:id="@id/handle"         android:layout_width="88dip"         android:layout_height="44dip" />     <GridView         android:id="@id/content"         android:layout_width="match_parent"         android:layout_height="match_parent" /> </SlidingDrawer>

下面给出一个实例

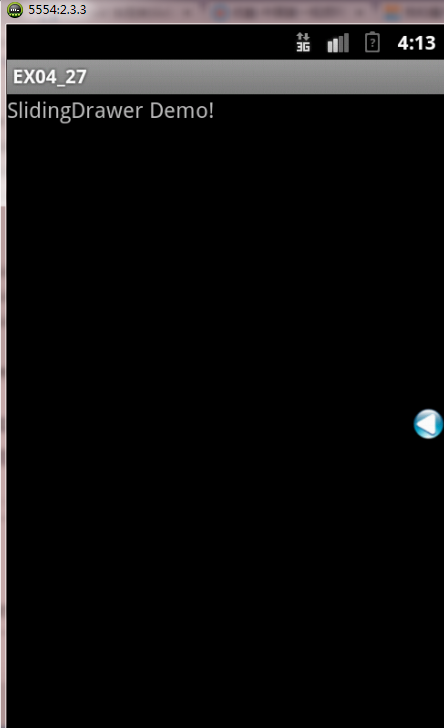

首先实例的实现截图如下：

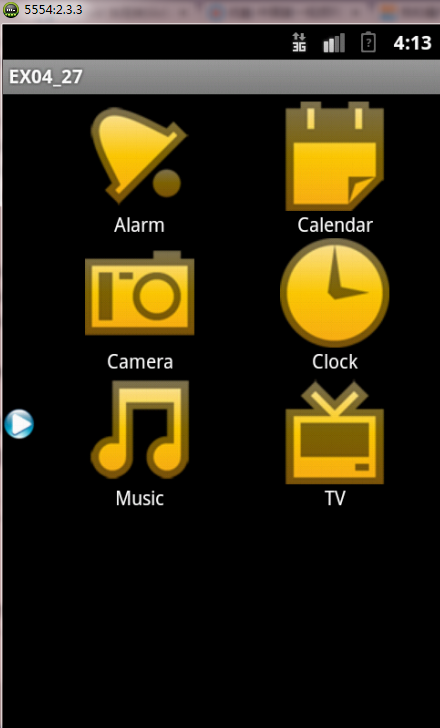

实现滑动效果

给出如下实现代码：

1.总体布局文件的代码

<?xml version="1.0" encoding="utf-8"?> <RelativeLayout    xmlns:android="http://schemas.android.com/apk/res/android"   android:layout_width="fill_parent"   android:layout_height="fill_parent">  <TextView    android:layout_width="fill_parent"    android:layout_height="wrap_content"    android:text="@string/hello"    android:textSize="16sp"  />  <SlidingDrawer     android:id="@+id/drawer1"     android:layout_width="fill_parent"     android:layout_height="fill_parent"         android:handle="@+id/layout1"     android:content="@+id/myContent1"         android:orientation="horizontal"  >    <LinearLayout       android:id="@id/layout1"       android:layout_width="35px"       android:layout_height="fill_parent"      android:background="@drawable/black"      android:gravity="center"     >      <ImageView        android:id="@+id/myImage1"         android:layout_width="wrap_content"         android:layout_height="wrap_content"         android:src="@drawable/open"      />    </LinearLayout>    <GridView       android:id="@id/myContent1"       android:layout_width="wrap_content"       android:layout_height="wrap_content"       android:numColumns="2"      android:background="@drawable/black"       android:gravity="center"    />         </SlidingDrawer></RelativeLayout>

2.GridView中的布局代码

<?xml version="1.0" encoding="utf-8"?><LinearLayout  xmlns:android="http://schemas.android.com/apk/res/android"  android:orientation="vertical"  android:layout_width="fill_parent"  android:layout_height="fill_parent">  <ImageView     android:id="@+id/icon"    android:layout_width="wrap_content"    android:layout_height="wrap_content"    android:layout_gravity="center"  />  <TextView     android:id="@+id/text"    android:layout_width="fill_parent"    android:layout_height="20sp"    android:gravity="center"    android:textColor="@drawable/white"  /></LinearLayout>

3.BaseAdapter的子类实现（为GridView提供数据）

/* 自定义Adapter，继承BaseAdapter */public class MyGridViewAdapter extends BaseAdapter {   private Context _con;  private String[] _items;  private int[] _icons;  /* 构造符 */  public MyGridViewAdapter(Context con,String[] items,int[] icons)   {    _con=con;    _items=items;    _icons=icons;  }  @Override  public int getCount()  {    return _items.length;  }  @Override  public Object getItem(int arg0)  {    return _items[arg0];  }  @Override  public long getItemId(int position)  {    return position;  }  @Override  public View getView(int position, View convertView, ViewGroup parent)  {    LayoutInflater factory = LayoutInflater.from(_con);    /* 使用grid.xml为每几个item的Layout */    View v = (View) factory.inflate(R.layout.grid, null);    /* 取得View */    ImageView iv = (ImageView) v.findViewById(R.id.icon);    TextView tv = (TextView) v.findViewById(R.id.text);    /* 设定显示的Image与文? */    iv.setImageResource(_icons[position]);    tv.setText(_items[position]);    return v;  } }

4.主程序的实现

public class EX04_27 extends Activity{  private GridView gv;  private SlidingDrawer sd;  private ImageView im;  private int[] icons={R.drawable.alarm,R.drawable.calendar,                       R.drawable.camera,R.drawable.clock,                       R.drawable.music,R.drawable.tv};  private String[] items={"Alarm","Calendar","Camera","Clock","Music","TV"};      /** Called when the activity is first created. */  @Override  public void onCreate(Bundle savedInstanceState)  {    super.onCreate(savedInstanceState);    /* 加载main.xml Layout */    setContentView(R.layout.main);    /* 初始化对象 */    gv = (GridView)findViewById(R.id.myContent1);     sd = (SlidingDrawer)findViewById(R.id.drawer1);    im=(ImageView)findViewById(R.id.myImage1);        /* 使用告定义的MyGridViewAdapter设置GridView里面的item内容 */    MyGridViewAdapter adapter=new MyGridViewAdapter(this,items,icons);    gv.setAdapter(adapter);        /* 设定SlidingDrawer被打开的事件处理 */    sd.setOnDrawerOpenListener(new SlidingDrawer.OnDrawerOpenListener()    {      @Override      public void onDrawerOpened()      {        im.setImageResource(R.drawable.close);      }    });    /* 设置SlidingDrawer被关闭的事件处理 */    sd.setOnDrawerCloseListener(new SlidingDrawer.OnDrawerCloseListener()    {      @Override      public void onDrawerClosed()      {        im.setImageResource(R.drawable.open);      }    });  }}
