二、横向增加Item的ListView

热度:46   发布时间:2016-05-01 13:11:43.0
Android中HorizontalListView的实现

一、横向滑动的ListView

        首先是一篇关于能够横向滑动的ListView的实现,作者是大牛农民伯伯,地址http://www.cnblogs.com/over140/archive/2011/12/07/2275207.html,这篇文章介绍了一种能够在ListView非常宽,而屏幕显示不下的情况下能够左右滑动的解决方案。这种方案比较复杂自定义支持横向滚动的ListView。

        我们有更好的方案,不用自定义组件,只要在布局文件里将ListView放在HorizontalScrollView即可,不用使用自定义组件。代码如下:

 <HorizontalScrollView            android:layout_width="wrap_content"            android:layout_height="wrap_content" >            <LinearLayout                android:layout_width="wrap_content"                android:layout_height="wrap_content"                android:orientation="vertical" >		<!--head title-->                <TableLayout                    android:layout_width="wrap_content"                    android:layout_height="wrap_content" >                    <TableRow style="@style/biaotou" >                        <TextView                            style="@style/ListView_TextView_200dp"                            android:text="@string/weihucishu" />                        <View style="@style/list_item_cell_seperator_layout" />                        <TextView                            style="@style/ListView_TextView_200dp"                            android:text="@string/baoyangriqi" />                        <View style="@style/list_item_cell_seperator_layout" />                        <TextView                            style="@style/ListView_TextView_300dp"                            android:text="@string/weixiuchejian" />                        <View style="@style/list_item_cell_seperator_layout" />                    </TableRow>                </TableLayout>                <ListView                    android:id="@+id/listview"                    android:layout_width="wrap_content"                    android:layout_height="wrap_content"                    android:cacheColorHint="#00000000" />            </LinearLayout>        </HorizontalScrollView>

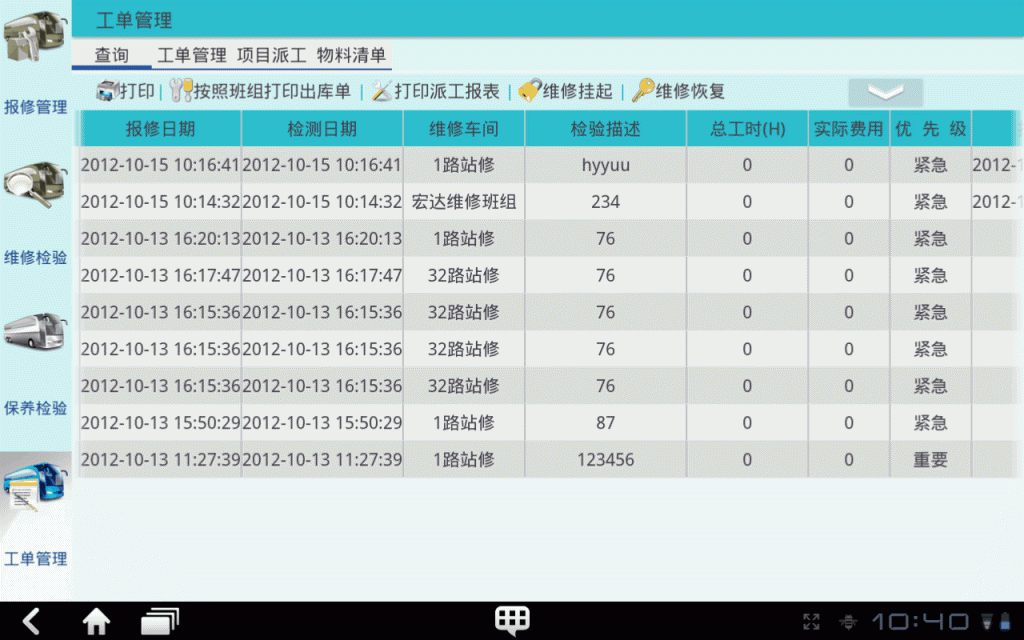

效果图如下:(竟然不支持gif图片!!!!)示例图片下载地址



二、横向增加Item的ListView

        第一种情况是按照ListView原本的属性每次增加条目都是在下方,而有时候我们需要的是一种可以横向增加条目的ListView

        在此我们需要感谢大神的巨作,HorizontalListView

        组件下载地址:https://github.com/dinocore1/DevsmartLib-Android

        组件介绍地址:http://www.dev-smart.com/archives/34
