Android运用ViewPager实现左右滑动效果

使用ViewPager用使用android的兼容包，android-support-v4.jar。

工程源代码下载：点击下载

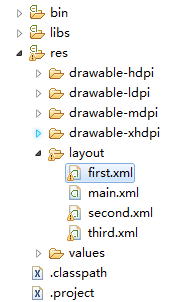

在res/layout下建立三个文件first.xml,second.xml,third.xml，随便加入一些控件

main.xml文件的布局如下：

<?xml version="1.0" encoding="utf-8"?><FrameLayout xmlns:android="http://schemas.android.com/apk/res/android"    android:layout_width="fill_parent"    android:layout_height="fill_parent"    android:orientation="vertical" >    <android.support.v4.view.ViewPager        android:id="@+id/viewpager"        android:layout_width="wrap_content"        android:layout_height="wrap_content"        android:layout_gravity="center"        />   <RelativeLayout        android:layout_width="fill_parent"       android:layout_height="wrap_content"       >    <LinearLayout        android:id="@+id/group"        android:layout_width="fill_parent"        android:layout_height="wrap_content"        android:layout_alignParentBottom="true"          android:layout_marginBottom="30dp"        android:orientation="horizontal"        android:gravity="center_horizontal"       />             </RelativeLayout></FrameLayout>

在LinaerLayout外面套一个RelativeLayout是为了使得

android:layout_alignParentBottom="true" 这行代码有用

LinaerLayout主要是布局下面的小圆点。要使用两张图片R.drawable.page_indicator_focused和R.drawable.page_indicator。

在主Activity中的代码没什么好说的直接贴上来

package com.zhycheng.viewpage;import java.util.ArrayList;import android.app.Activity;import android.os.Bundle;import android.os.Parcelable;import android.support.v4.view.PagerAdapter;import android.support.v4.view.ViewPager;import android.support.v4.view.ViewPager.OnPageChangeListener;import android.view.LayoutInflater;import android.view.View;import android.view.ViewGroup;import android.view.ViewGroup.LayoutParams;import android.widget.ImageView;import android.widget.LinearLayout;import android.widget.Toast;public class ViewPageActivity extends Activity implements OnPageChangeListener {		ViewPager mvp;	ImageView []images;	ImageView iv;	LinearLayout ll;	ViewGroup vg;	    public void onCreate(Bundle savedInstanceState) {        super.onCreate(savedInstanceState);        //        final ArrayList<View> aViews=new ArrayList<View>();        LayoutInflater lf=LayoutInflater.from(this);        vg=(ViewGroup) lf.inflate(R.layout.main, null);        View v1=lf.inflate(R.layout.first, null);        View v2=lf.inflate(R.layout.second, null);        View v3=lf.inflate(R.layout.third, null);        aViews.add(v1);        aViews.add(v2);        aViews.add(v3);        mvp=(ViewPager) vg.findViewById(R.id.viewpager);        ll=(LinearLayout) vg.findViewById(R.id.group);                       images=new ImageView[aViews.size()];        for(int i=0;i<images.length;i++)        {        	iv=new ImageView(this);        	iv.setLayoutParams(new LayoutParams(20,20));        	iv.setPadding(20, 0, 20, 0);        	if(i==0)        	{        		iv.setBackgroundResource(R.drawable.page_indicator_focused);        	}        	else        	{        		iv.setBackgroundResource(R.drawable.page_indicator);        	}        	images[i]=iv;        	ll.addView(images[i]);        }                                               PagerAdapter pa=new PagerAdapter(){			@Override			public int getCount() {				// TODO Auto-generated method stub				return aViews.size();			}			@Override			public void destroyItem(View container, int position, Object object) {				// TODO Auto-generated method stub				((ViewPager)container).removeView(aViews.get(position));			}						@Override			public boolean isViewFromObject(View arg0, Object arg1) {				// TODO Auto-generated method stub				return arg0==arg1;			}			@Override			public void finishUpdate(View arg0) {				// TODO Auto-generated method stub							}			@Override			public Object instantiateItem(View arg0, int arg1) {				// TODO Auto-generated method stub				((ViewPager)arg0).addView(aViews.get(arg1),0);				return aViews.get(arg1);			}			@Override			public void restoreState(Parcelable arg0, ClassLoader arg1) {				// TODO Auto-generated method stub							}			@Override			public Parcelable saveState() {				// TODO Auto-generated method stub				return null;			}			@Override			public void startUpdate(View arg0) {				// TODO Auto-generated method stub							}};			setContentView(vg);        mvp.setAdapter(pa);        mvp.setOnPageChangeListener(this);     }	@Override	public void onPageScrollStateChanged(int arg0) {		// TODO Auto-generated method stub		//Toast.makeText(this, "onPageScrollStateChanged"+arg0, 1000).show();			}	@Override	public void onPageScrolled(int arg0, float arg1, int arg2) {		// TODO Auto-generated method stub		//Toast.makeText(this, "onPageScrolled", 1000).show();	}	@Override	public void onPageSelected(int arg0) {		// TODO Auto-generated method stub		for(int i=0;i<images.length;i++)		{			if(i==arg0)			{				images[i].setBackgroundResource(R.drawable.page_indicator_focused);			}			else			{				images[i].setBackgroundResource(R.drawable.page_indicator);			}		}	}}
