android音乐播放器拖放播发进度设计

热度:64   发布时间:2016-05-01 20:17:38.0
android音乐播放器拖放播放进度设计
android音乐播放器拖放播放进度设计

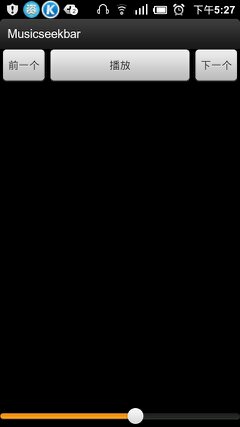

效果图:



播放器设计中需要显示播放进度,并随着播放的进行,进度条要走动。当我们直接拖放播放进度条,也能调整播放进度。这里我们使用了SeekBar来完成这个任务。
下面直接上代码:

界面布局不多说
main.xml
<?xml version="1.0" encoding="utf-8"?><LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"    android:layout_width="fill_parent"    android:layout_height="fill_parent"    android:orientation="vertical" >    <RelativeLayout        android:id="@+id/relativeLayout1"        android:layout_width="match_parent"        android:layout_height="match_parent" >        <SeekBar            android:id="@+id/seekBar1"            android:layout_width="match_parent"            android:layout_height="wrap_content"            android:layout_alignParentBottom="true" />        <Button            android:id="@+id/previous"            android:layout_width="wrap_content"            android:layout_height="wrap_content"            android:layout_alignParentLeft="true"            android:layout_alignParentTop="true"            android:text="前一个" />        <Button            android:id="@+id/next"            android:layout_width="wrap_content"            android:layout_height="wrap_content"            android:layout_alignParentTop="true"            android:layout_alignParentRight="true"            android:text="下一个" />        <Button            android:id="@+id/play"            android:layout_width="wrap_content"            android:layout_height="wrap_content"            android:layout_alignParentTop="true"            android:layout_toLeftOf="@id/next"            android:layout_toRightOf="@id/previous"            android:text="播放" />    </RelativeLayout></LinearLayout>


在前台的界面,只设置了播放操作,可以看到点击播放后,我们启动了service播放音乐,这里我们要注意看到SeekBarReceiver这个。我们是通过接收受service发过来的广播,并调整进度条的。还有这个SeekBarListener,我们通过它设置了SeekBar的拖放操作
MusicseekbarActivity.java
package org.hwq.music.seekbar;import android.app.Activity;import android.content.BroadcastReceiver;import android.content.Context;import android.content.Intent;import android.content.IntentFilter;import android.os.Bundle;import android.view.View;import android.view.View.OnClickListener;import android.widget.Button;import android.widget.SeekBar;import android.widget.SeekBar.OnSeekBarChangeListener;public class MusicseekbarActivity extends Activity implements OnClickListener{	Button pre,play,next;	SeekBar seekbar;	SeekBarReceiver receiver;    /** Called when the activity is first created. */    @Override    public void onCreate(Bundle savedInstanceState) {        super.onCreate(savedInstanceState);        setContentView(R.layout.main);        pre = (Button) findViewById(R.id.previous);        play = (Button) findViewById(R.id.play);        next = (Button) findViewById(R.id.next);        seekbar = (SeekBar) findViewById(R.id.seekBar1);        pre.setOnClickListener(this);        play.setOnClickListener(this);        next.setOnClickListener(this);        seekbar.setOnSeekBarChangeListener(new SeekBarListener());    }    @Override    protected void onStart() {    	super.onStart();    	//注册receiver接受service中发送过来的广播    	receiver = new SeekBarReceiver();    	this.registerReceiver(receiver, new IntentFilter("org.hwq.receiver.seekbar"));    }    @Override    protected void onDestroy() {    	super.onStop();    	Intent intent = new Intent(this,PlayService.class);    	stopService(intent);    	PlayService.isrunning = false;    	this.unregisterReceiver(receiver);    	super.onDestroy();    }    //是否正在进行拖放(没设置这个的话,在拖放的过程中会出现点小小不爽的效果,自己可以测试下)    boolean seekbarTrackTouch = false;    //SeekBar拖放事件处理了    class SeekBarListener implements OnSeekBarChangeListener{		public void onProgressChanged(SeekBar seekBar, int progress,				boolean fromUser) {					}		public void onStartTrackingTouch(SeekBar seekBar) {			seekbarTrackTouch = true;		}		public void onStopTrackingTouch(SeekBar seekBar) {			seekbarTrackTouch = false;			int currentPosition = seekBar.getProgress();			Intent intent = new Intent("org.hwq.music.seekbar.seekto");			intent.putExtra("currentPosition", currentPosition);			sendBroadcast(intent);		}    }	public void onClick(View v) {		switch(v.getId()){		case R.id.previous:			playPrevious();			break;		case R.id.play:			play();			break;		case R.id.next:			playNext();			break;		}	}	private void playNext() {			}	private void play() {		System.out.println("play()被点击");		Intent intent = new Intent(this,PlayService.class);		intent.putExtra("op", "play");		startService(intent);	}	private void playPrevious() {			}	class SeekBarReceiver extends BroadcastReceiver{		@Override		public void onReceive(Context context, Intent intent) {			int currentPosition = intent.getIntExtra("currentPosition", 0);			int duration = intent.getIntExtra("duration", 0);			System.out.println("activity收到一个广播:currentPosition="+currentPosition+" duration="+duration);			if(!seekbarTrackTouch){				seekbar.setProgress(currentPosition*100/duration);				seekbar.invalidate();			}		}	}}


播放service,播放过程中通过发出广播,影响前台的SeekBar的播放进度。并接收前台SeekBar的拖放事件广播,调整音乐播放进度。
PlayService.java
package org.hwq.music.seekbar;import java.util.List;import android.app.Service;import android.content.BroadcastReceiver;import android.content.Context;import android.content.Intent;import android.content.IntentFilter;import android.media.MediaPlayer;import android.net.Uri;import android.os.Bundle;import android.os.IBinder;public class PlayService extends Service implements Runnable {	private MediaPlayer player;	private List<Music> musicList;	private SeekbarReceiver receiver ;	public static boolean isrunning = true;	@Override	public void onCreate() {		player = new MediaPlayer();		musicList = MusicList.getMusicData(this);		new Thread(this).start();		receiver = new SeekbarReceiver();		registerReceiver(receiver, new IntentFilter("org.hwq.music.seekbar.seekto"));	}	@Override	public IBinder onBind(Intent intent) {		// TODO Auto-generated method stub		return null;	}		@Override	public void onDestroy() {		if(player != null){			player.release();			player = null;		}		unregisterReceiver(receiver);		super.onDestroy();	}	@Override	public void onStart(Intent intent, int startId) {		Bundle extras = intent.getExtras();		String op = extras.getString("op");		if("play".equals(op)){			play();		}	}	private void play() {		System.out.println("service中的play执行");		Music m = musicList.get(0);		Uri uri = Uri.parse(m.getUrl());		try{			player.setDataSource(this,uri);			player.prepare();			player.start();		}catch (Exception e) {			e.printStackTrace();		}	}	public void run() {		while(isrunning){			try{				Thread.sleep(100);			}catch (Exception e) {							}			if(player!=null){				int currentPosition = player.getCurrentPosition();				int duration = player.getDuration();				Intent intent = new Intent("org.hwq.receiver.seekbar");				intent.putExtra("currentPosition", currentPosition);				intent.putExtra("duration", duration);				System.out.println("发出一个广播:currentPosition="+currentPosition);				sendBroadcast(intent);			}		}	}	//接收前台拖放的进度,并调整歌曲的播放进度	class SeekbarReceiver extends BroadcastReceiver{		public void onReceive(Context context, Intent intent) {			int currentPosition = intent.getIntExtra("currentPosition", 0);			System.out.println("seekbar拖放了currentPosition="+currentPosition);			player.seekTo(player.getDuration()*currentPosition/100);			player.start();		}	}}


大致就讲完。这里想起一个网上看到的题目,没有activity,能否启动一个运用。答案是可以的:首先,我们得添加权限<uses-permission android:name="android.permission.RECEIVE_BOOT_COMPLETED"/>  ,然后注册一个receiver侦听<action android:name="android.intent.action.BOOT_COMPLETED" />,并在receiver来启动一个service或一个activity就ok了。

下面是这个demo:
