c#中如何拖动自己画图的内容

热度:11   发布时间:2016-05-05 03:50:50.0
c#中怎么拖动自己画图的内容?
写了一个用鼠标实现画图的程序:
        private System.Drawing.Point p1, p2;//定义两个点(启点,终点)
        private static bool drawing = false;

        private void draw_MouseDown(object sender, System.Windows.Forms.MouseEventArgs e)
        {
            p1 = new System.Drawing.Point(e.X, e.Y);
            p2 = new System.Drawing.Point(e.X, e.Y);
            drawing = true;

        }

        private void draw_MouseUp(object sender, System.Windows.Forms.MouseEventArgs e)
        {
            drawing = false;
        }

        private void draw_MouseMove(object sender, System.Windows.Forms.MouseEventArgs e)
        {
            Graphics g = pictureBox1.CreateGraphics();
            if (e.Button == MouseButtons.Left)
            {
                if (drawing)
                {
                    //drawing = true;
                    System.Drawing.Point currentPoint = new System.Drawing.Point(e.X, e.Y);
                    g.SmoothingMode = System.Drawing.Drawing2D.SmoothingMode.AntiAlias;//消除锯齿
                    g.DrawLine(new System.Drawing.Pen(System.Drawing.Color.Blue, 2), p2, currentPoint);

                    p2.X = currentPoint.X;
                    p2.Y = currentPoint.Y;
                }

            }
        }

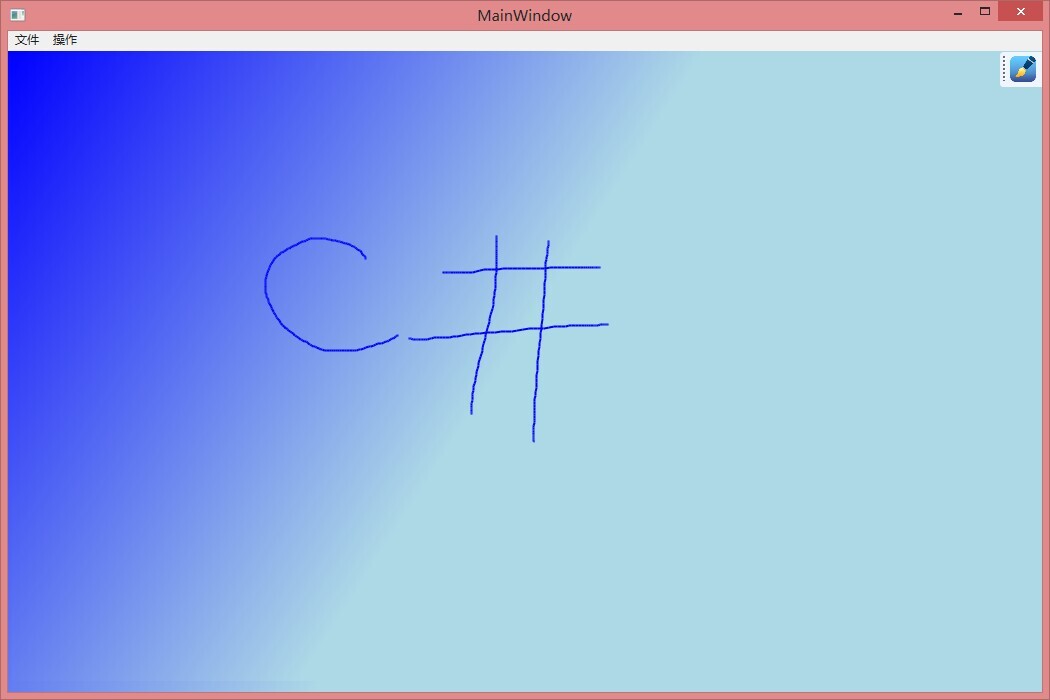

实现功能如下:

我现在想要把我鼠标写画的部分(即c#)可以用鼠标自由的拖动到任何位置,怎么才能实现。。。

------解决思路----------------------
你需要用一个数据结构,比如List<List<Point>>记录下你绘制的线条(每个线条由点构成)
鼠标拖动的时候判断所处的是哪个线条,将它对应的坐标全部减去或者加上一个值
Paint事件只管画图
