arcgis for android访问arcgis server上自己制作部署的地图服务

本项目的开发环境是eclipse3.5 + ADT11插件+arcgis for andorid 插件 + arcgis server java9.3.1版本

1.制作arcgis地图

地图的坐标是WGS_1984_Web_Mercator，如果是别的手机端不能正常显示。

2把图片部署到arcgis server

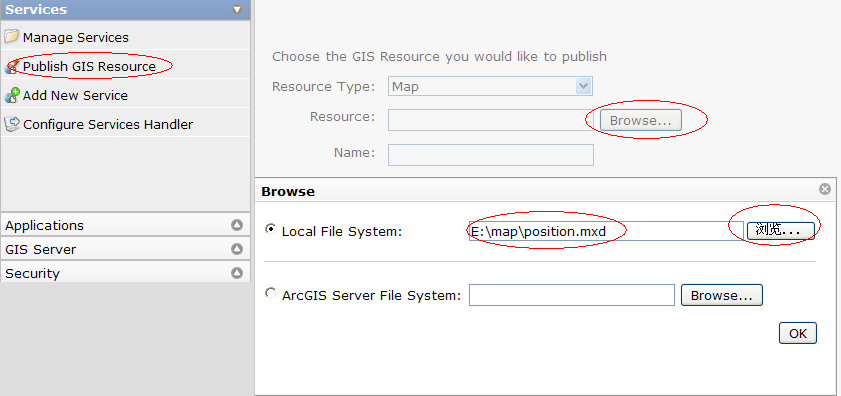

安装图上标注的选择自己制作好的地图如下图

注意路径问题，有的默认路径就是c盘fakepath目录下，把这个改成自己的实际地图路径，如下图

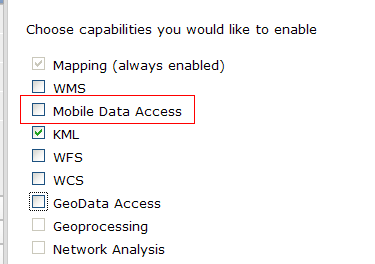

这里一定要选择Mobile Data Access这一项，其余的可以看自己项目的需求，如下图

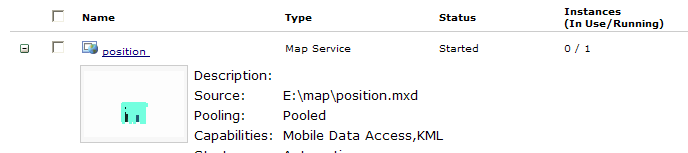

最后点击左边的Manage Services 可以看到自己部署的地图是否正常运行如下图

3.android端访问服务

说下地图服务url的

http://本机:8399/arcgis/rest/services访问这个地址你就可以看到已经部署在这个arcgis server上的地图

选择我们需要的http://本机:8399/arcgis/rest/services/position/MapServer

就以arcgis for android的自带的helloworld项目为例

main.xml代码如下

<com.esri.android.map.MapView
		xmlns:android="http://schemas.android.com/apk/res/android"
		android:id="@+id/map"
		android:layout_width="fill_parent"
		android:layout_height="fill_parent"
		initExtent="82.7000573134345 -209.49929219769712 473.75006718843446 -213.21179229144713">


	<com.esri.android.map.ags.ArcGISDynamicMapServiceLayer
     url="http://192.168.16.235:8399/arcgis/rest/services/position/MapServer"/>
		<com.esri.android.map.GraphicsLayer android:id="@+id/gLayer" />
	</com.esri.android.map.MapView>

?注意initExtent坐标不能为空；

注意ArcGISDynamicMapServiceLayer? 默认的helloword中的是ArcGISTiledMapServiceLayer，要改下否则访问不成功。

java代码不要做修改

public void onCreate(Bundle savedInstanceState) {
		super.onCreate(savedInstanceState);
		setContentView(R.layout.main);
		map = (MapView) findViewById(R.id.map);

		//Retrieve the non-configuration instance data that was previously returned.
		Object init = getLastNonConfigurationInstance();
		if (init != null) {
			map.restoreState((String) init);
		}
	}

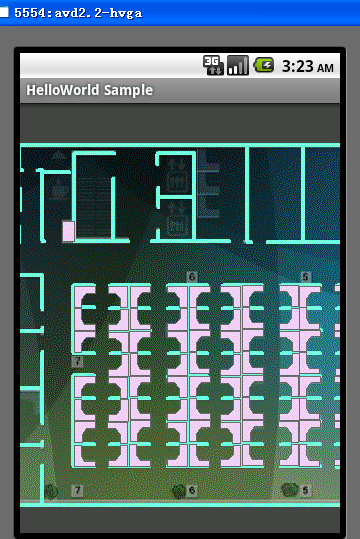

?运行结果如下：

本人是最近菜开始学gis开发，开发中遇到不少问题，希望这篇文章能帮助新手少走弯路。

1 楼 luckyaoyun 2012-01-03

请问博主，我的Android手机就是连接不上自己ArcGIS Server发布的地图该怎么办呢？

2 楼 jianzhao880502 2012-03-01

为什么我的总是crash？？？？？
03-01 16:59:24.562: ERROR/AndroidRuntime(4911): FATAL EXCEPTION: main
03-01 16:59:24.562: ERROR/AndroidRuntime(4911): java.lang.RuntimeException: Unable to start activity ComponentInfo{com.esri.arcgis.android.samples.helloworld/com.esri.arcgis.android.samples.helloworld.HelloWorld}: android.view.InflateException: Binary XML file line #13: Error inflating class com.esri.android.map.ags.ArcGISDynamicMapServiceLayer
03-01 16:59:24.562: ERROR/AndroidRuntime(4911):     at android.app.ActivityThread.performLaunchActivity(ActivityThread.java:2663)
03-01 16:59:24.562: ERROR/AndroidRuntime(4911):     at android.app.ActivityThread.handleLaunchActivity(ActivityThread.java:2679)
03-01 16:59:24.562: ERROR/AndroidRuntime(4911):     at android.app.ActivityThread.access$2300(ActivityThread.java:125)
03-01 16:59:24.562: ERROR/AndroidRuntime(4911):     at android.app.ActivityThread$H.handleMessage(ActivityThread.java:2033)
03-01 16:59:24.562: ERROR/AndroidRuntime(4911):     at android.os.Handler.dispatchMessage(Handler.java:99)
03-01 16:59:24.562: ERROR/AndroidRuntime(4911):     at android.os.Looper.loop(Looper.java:123)
03-01 16:59:24.562: ERROR/AndroidRuntime(4911):     at android.app.ActivityThread.main(ActivityThread.java:4627)
03-01 16:59:24.562: ERROR/AndroidRuntime(4911):     at java.lang.reflect.Method.invokeNative(Native Method)
03-01 16:59:24.562: ERROR/AndroidRuntime(4911):     at java.lang.reflect.Method.invoke(Method.java:521)
03-01 16:59:24.562: ERROR/AndroidRuntime(4911):     at com.android.internal.os.ZygoteInit$MethodAndArgsCaller.run(ZygoteInit.java:871)
03-01 16:59:24.562: ERROR/AndroidRuntime(4911):     at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:629)
03-01 16:59:24.562: ERROR/AndroidRuntime(4911):     at dalvik.system.NativeStart.main(Native Method)
03-01 16:59:24.562: ERROR/AndroidRuntime(4911): Caused by: android.view.InflateException: Binary XML file line #13: Error inflating class com.esri.android.map.ags.ArcGISDynamicMapServiceLayer
03-01 16:59:24.562: ERROR/AndroidRuntime(4911):     at android.view.LayoutInflater.createView(LayoutInflater.java:503)
03-01 16:59:24.562: ERROR/AndroidRuntime(4911):     at android.view.LayoutInflater.createViewFromTag(LayoutInflater.java:565)
03-01 16:59:24.562: ERROR/AndroidRuntime(4911):     at android.view.LayoutInflater.rInflate(LayoutInflater.java:618)
03-01 16:59:24.562: ERROR/AndroidRuntime(4911):     at android.view.LayoutInflater.rInflate(LayoutInflater.java:621)
03-01 16:59:24.562: ERROR/AndroidRuntime(4911):     at android.view.LayoutInflater.inflate(LayoutInflater.java:407)
03-01 16:59:24.562: ERROR/AndroidRuntime(4911):     at android.view.LayoutInflater.inflate(LayoutInflater.java:320)
03-01 16:59:24.562: ERROR/AndroidRuntime(4911):     at android.view.LayoutInflater.inflate(LayoutInflater.java:276)
03-01 16:59:24.562: ERROR/AndroidRuntime(4911):     at com.android.internal.policy.impl.PhoneWindow.setContentView(PhoneWindow.java:210)
03-01 16:59:24.562: ERROR/AndroidRuntime(4911):     at android.app.Activity.setContentView(Activity.java:1647)
03-01 16:59:24.562: ERROR/AndroidRuntime(4911):     at com.esri.arcgis.android.samples.helloworld.HelloWorld.onCreate(HelloWorld.java:31)
03-01 16:59:24.562: ERROR/AndroidRuntime(4911):     at android.app.Instrumentation.callActivityOnCreate(Instrumentation.java:1047)
03-01 16:59:24.562: ERROR/AndroidRuntime(4911):     at android.app.ActivityThread.performLaunchActivity(ActivityThread.java:2627)
03-01 16:59:24.562: ERROR/AndroidRuntime(4911):     ... 11 more
03-01 16:59:24.562: ERROR/AndroidRuntime(4911): Caused by: java.lang.NoSuchMethodException: ArcGISDynamicMapServiceLayer(Context,AttributeSet)
03-01 16:59:24.562: ERROR/AndroidRuntime(4911):     at java.lang.Class.getMatchingConstructor(Class.java:660)
03-01 16:59:24.562: ERROR/AndroidRuntime(4911):     at java.lang.Class.getConstructor(Class.java:477)
03-01 16:59:24.562: ERROR/AndroidRuntime(4911):     at android.view.LayoutInflater.createView(LayoutInflater.java:475)
03-01 16:59:24.562: ERROR/AndroidRuntime(4911):     ... 22 more
