Dynamic CRM 2013学习笔记（四十六）容易审批流的实现

热度：586   发布时间：2016-04-24 02:53:20.0
Dynamic CRM 2013学习笔记（四十六）简单审批流的实现

前面介绍过自定义审批流：

Dynamic CRM 2013学习笔记（十九）自定义审批流1 - 效果演示

Dynamic CRM 2013学习笔记（二十一）自定义审批流2 - 配置按钮

Dynamic CRM 2013学习笔记（三十二）自定义审批流3 - 节点及实体配置

Dynamic CRM 2013学习笔记（三十三）自定义审批流4 - 规则节点 -有分支的流程处理

Dynamic CRM 2013学习笔记（三十四）自定义审批流5 - 自动邮件通知

Dynamic CRM 2013学习笔记（三十五）自定义审批流6 - 审批通过后，再审批 - 二次审批

Dynamic CRM 2013学习笔记（三十七）自定义审批流7 - 初始化（整套审批流下载、安装）

虽然灵活，功能强大，不用修改代码，完全用配置就可以搞定。

最近客户需要实现一个很简单的审批流，就有了这篇简单审批流的实现。

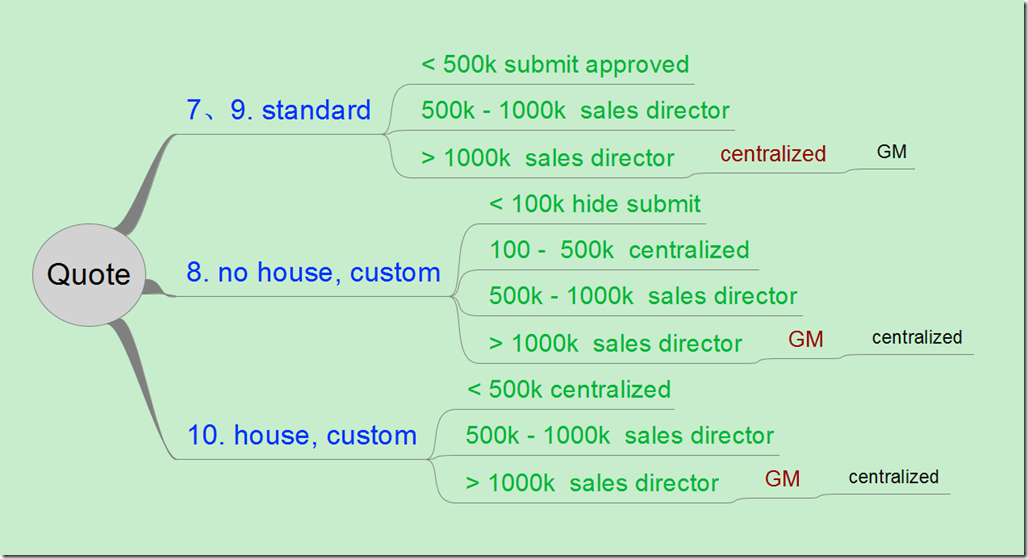

首先根据需求文档分析流程：


功能实现如下：

一、 添加字段

一个是让用户修改的审批状态，如果当前用户是审批人，放开审批状态字段，让用户审批或拒绝；值为 Pending, Approved, Rejected

一个是实体的状态，用户审批后根据业务逻辑来判断实体的状态；值为 Pending, Approved, Rejected

一个审批人字段，提交或用户修改了审批状态后，设置下一个审批人

另外可以设置几个隐藏审批人的字段，方便在插件里一次得出，js里就方便设置了（尽量避免在js里运行大量逻辑），如上图主要是把 sales director, gm 存下来



二. JS控制提交按钮和审批状态字段

1. 提交控制

AllowSubmit: function () {
        var currentUserId = Xrm.Page.context.getUserId();
        var userHasRole = HP.QuoteRibbon.UserHasRole(["Reginal Sales"], currentUserId);
        var Approver = Xrm.Page.getAttribute("tm_approver").getValue();
        var AccountTypeValue = Xrm.Page.getAttribute("wf_accounttype").getValue();
        var QuoteTypeValue = Xrm.Page.getAttribute("tm_quote_type").getValue();
        var TotalAmount = Xrm.Page.getAttribute("tm_total_amount").getValue() / 1000;

        var AccountType = {};
        AccountType.House = 3;

        var QuoteType = {};
        QuoteType.Standard = 1;
        QuoteType.Custom = 2;

        if (userHasRole && Approver == null) {
            if (TotalAmount < 100 && QuoteTypeValue == QuoteType.Custom && AccountTypeValue != AccountType.House) {
                return false;
            }

            return true;
        }
        else {
            return false;
        }
    },

    Submit: function () {
        var AccountTypeValue = Xrm.Page.getAttribute("wf_accounttype").getValue();
        var QuoteTypeValue = Xrm.Page.getAttribute("tm_quote_type").getValue();
        var TotalAmount = Xrm.Page.getAttribute("tm_total_amount").getValue() / 1000;
        var ApproverAttribute = Xrm.Page.getAttribute("tm_approver");
        var Approver = ApproverAttribute.getValue();
        var QuoteStatusAttribute = Xrm.Page.getAttribute("tm_quote_status");
        var ApprovalResultAttribute = Xrm.Page.getAttribute("tm_approval_result");
        var CentralizedValue = Xrm.Page.getAttribute("tm_centralized").getValue();
        var SubmitAttribute = Xrm.Page.getAttribute("tm_submit");
        SubmitAttribute.setSubmitMode("always");
        QuoteStatusAttribute.setSubmitMode("always");
        ApprovalResultAttribute.setSubmitMode("always");
        var AccountType = {};
        AccountType.House = 3;

        var QuoteType = {};
        QuoteType.Standard = 1;
        QuoteType.Custom = 2;

        var QuoteStatus = {};
        QuoteStatus.Pending = 1;
        QuoteStatus.Approved = 2;
        QuoteStatus.Rejected = 3;

        var ApprovalStatus = {};
        ApprovalStatus.Pending = 1;
        ApprovalStatus.Approved = 2;
        ApprovalStatus.Rejected = 3;

        if (QuoteTypeValue == QuoteType.Standard) {
            if (TotalAmount <= 500) {
                QuoteStatusAttribute.setValue(QuoteStatus.Approved);
                ApprovalResultAttribute.setValue(ApprovalStatus.Approved);
            }
            else {
                //var sd = HP.QuoteRibbon.GetSalesDirector();
                //var user = [{ "id": sd.guid, "name": sd.name, "entityType": sd.logicalName }];
                //ApproverAttribute.setValue(user);
                QuoteStatusAttribute.setValue(QuoteStatus.Pending);
                ApprovalResultAttribute.setValue(ApprovalStatus.Pending);
            }
        }
        else {
            if (AccountTypeValue == AccountType.House) {
                if (TotalAmount < 500) {
                    ApproverAttribute.setValue(CentralizedValue);
                    QuoteStatusAttribute.setValue(QuoteStatus.Pending);
                    ApprovalResultAttribute.setValue(ApprovalStatus.Pending);
                }
                else if (TotalAmount >= 500) {
                    //var sd = HP.QuoteRibbon.GetSalesDirector();
                    //var user = [{ "id": sd.guid, "name": sd.name, "entityType": sd.logicalName }];
                    //ApproverAttribute.setValue(user);
                    QuoteStatusAttribute.setValue(QuoteStatus.Pending);
                    ApprovalResultAttribute.setValue(ApprovalStatus.Pending);
                }
            }
            else {
                if (TotalAmount >= 100 && TotalAmount < 500) {
                    ApproverAttribute.setValue(CentralizedValue);
                    QuoteStatusAttribute.setValue(QuoteStatus.Pending);
                    ApprovalResultAttribute.setValue(ApprovalStatus.Pending);
                }
                else if (TotalAmount >= 500) {
                    //var sd = HP.QuoteRibbon.GetSalesDirector();
                    //var user = [{ "id": sd.guid, "name": sd.name, "entityType": sd.logicalName }];
                    //ApproverAttribute.setValue(user);
                    QuoteStatusAttribute.setValue(QuoteStatus.Pending);
                    ApprovalResultAttribute.setValue(ApprovalStatus.Pending);
                }
            }
        }
        SubmitAttribute.setValue("Submit_" + new Date());
        Xrm.Page.data.entity.save();
    },



2. 审批状态修改事件

ApprovalResultChanged: function () {

       var ApprovalStatus = {};
       ApprovalStatus.Pending = 1;
       ApprovalStatus.Approved = 2;
       ApprovalStatus.Rejected = 3;

       var QuoteType = {};
       QuoteType.Standard = 1;
       QuoteType.Custom = 2;

       var QuoteStatus = {};
       QuoteStatus.Pending = 1;
       QuoteStatus.Approved = 2;
       QuoteStatus.Rejected = 3;

       var ApproverAttribute = Xrm.Page.getAttribute("tm_approver");
       var CentralizedValue = Xrm.Page.getAttribute("tm_centralized").getValue();
       var approvalResultValue = Xrm.Page.getAttribute("tm_approval_result").getValue();
       var QuoteStatusAttribute = Xrm.Page.getAttribute("tm_quote_status");
       var ApprovalResultAttribute = Xrm.Page.getAttribute("tm_approval_result");
       var GMValue = Xrm.Page.getAttribute("tm_gmid").getValue();

       var AccountTypeValue = Xrm.Page.getAttribute("wf_accounttype").getValue();
       var QuoteTypeValue = Xrm.Page.getAttribute("tm_quote_type").getValue();
       var TotalAmount = Xrm.Page.getAttribute("tm_total_amount").getValue() / 1000;
       QuoteStatusAttribute.setSubmitMode("always");
       ApproverAttribute.setSubmitMode("always");

       if (approvalResultValue == ApprovalStatus.Approved) {
           if (QuoteTypeValue == QuoteType.Standard) {
               if (TotalAmount >= 500 && TotalAmount < 1000) {
                   QuoteStatusAttribute.setValue(QuoteStatus.Approved);
                   //ApprovalResultAttribute.setValue(ApprovalStatus.Approved);
               }
               else if (TotalAmount >= 1000) {
                   if (HP.QuoteForm.UserHasRole(["General Manager"]) == true) {
                       QuoteStatusAttribute.setValue(QuoteStatus.Approved);
                       //ApprovalResultAttribute.setValue(ApprovalStatus.Approved);
                   }
                   else {
                       if (CentralizedValue && HP.QuoteForm.GuidsisEqual(Xrm.Page.context.getUserId(), CentralizedValue[0].id)) {
                           HP.QuoteForm.SetLookupValue(ApproverAttribute, GMValue);
                       }
                       else {
                           HP.QuoteForm.SetLookupValue(ApproverAttribute, CentralizedValue);
                       }
                       QuoteStatusAttribute.setValue(QuoteStatus.Pending);
                       ApprovalResultAttribute.setValue(ApprovalStatus.Pending);
                   }
               }
           }
           else {
               if (TotalAmount < 1000) {
                   QuoteStatusAttribute.setValue(QuoteStatus.Approved);
                   //ApprovalResultAttribute.setValue(ApprovalStatus.Approved);
               }
               else if (TotalAmount >= 1000) {
                   if (CentralizedValue && HP.QuoteForm.GuidsisEqual(Xrm.Page.context.getUserId(), CentralizedValue[0].id)) {
                       QuoteStatusAttribute.setValue(QuoteStatus.Approved);
                       //ApprovalResultAttribute.setValue(ApprovalStatus.Approved);
                   }
                   else {
                       if (HP.QuoteForm.UserHasRole(["General Manager"]) == true) {
                           HP.QuoteForm.SetLookupValue(ApproverAttribute, CentralizedValue);
                       }
                       else {
                           HP.QuoteForm.SetLookupValue(ApproverAttribute, GMValue);
                       }
                       QuoteStatusAttribute.setValue(QuoteStatus.Pending);
                       ApprovalResultAttribute.setValue(ApprovalStatus.Pending);
                   }
               }
           }
       }
       else if (approvalResultValue == ApprovalStatus.Rejected) {
           ApproverAttribute.setValue(null);
           QuoteStatusAttribute.setValue(QuoteStatus.Rejected);
           //ApprovalResultAttribute.setValue(ApprovalStatus.Rejected);
       }
   },



三、插件设置审批人

为了在js里快速方便地设置下一个审批人，可以通过插件在后台来设置。当提交后，触发插件把下几个审批人放到隐藏字段里以供js快速赋值

if (entity.Contains("tm_submit"))
{
    Entity preImageEntity = (Entity)context.PreEntityImages["PreImage"];
    if (preImageEntity.Contains("tm_approval_result") && ((OptionSetValue)preImageEntity["tm_approval_result"]).Value == 2)
        return;

    CRMConfigHelper.CRMConfig crmConfig = CRMConfigHelper.InitialCRMConfig(context.OrganizationName);
    string sql = string.Format(@"select top 1  op.new_product_line
    from Quote q join Opportunity o on q.OpportunityId = o.OpportunityId
    join wf_opportunityproduct op on o.OpportunityId = op.wf_OpportunityId
    where op.wf_IncludeinForecast = 1 and q.QuoteId = '{0}'", entity.Id);

    var dtPL = SqlHelper.SQLExecuteQuery(crmConfig.CRMSqlConnStr, sql).Tables[0];
    if (dtPL.Rows.Count == 1 && dtPL.Rows[0]["new_product_line"] != null)
    {
        string productLine = dtPL.Rows[0]["new_product_line"].ToString();

        sql = string.Format(@"select top 1 bu.new_nlt_sales_director 'NLTSD', bu.new_tm_sales_director 'TMSD'
            from BusinessUnit bu
            join SystemUser u on bu.BusinessUnitId = u.BusinessUnitId
            where u.SystemUserId = '{0}'", context.UserId);

        var dtSD = SqlHelper.SQLExecuteQuery(crmConfig.CRMSqlConnStr, sql).Tables[0];
        if (dtSD.Rows.Count == 1)
        {
            if (productLine == "1") //TM
            {
                entity["tm_sales_directorid"] = new EntityReference("systemuser", Guid.Parse(dtSD.Rows[0]["TMSD"].ToString()));
            }
            else if (productLine == "2") //NLT
            {
                entity["tm_sales_directorid"] = new EntityReference("systemuser", Guid.Parse(dtSD.Rows[0]["NLTSD"].ToString()));
            }

            //if (preImageEntity["tm_approver"] == null )
            {
                entity["tm_approver"] = entity["tm_sales_directorid"];
            }
        }
    }

    //if (preImageEntity.Contains("tm_gmid") && preImageEntity["tm_gmid"] != null)
    //    return;

    sql = @"select top 1 u.SystemUserId 'GM'
            from SystemUser u
            join SystemUserRoles ur on u.SystemUserId = ur.SystemUserId
            join role r on r.RoleId = ur.RoleId
            where r.Name = 'General Manager'";

    var dtGM = SqlHelper.SQLExecuteQuery(crmConfig.CRMSqlConnStr, sql).Tables[0];
    if (dtGM.Rows.Count == 1 && dtGM.Rows[0]["GM"] != null)
    {
        entity["tm_gmid"] = new EntityReference("systemuser", Guid.Parse(dtGM.Rows[0]["GM"].ToString()));
    }
}



四、公用JS方法

1. 设置Lookup值

SetLookupValue: function (LookupAttribute, LookupValue) {
      var lookupReference = [];
      lookupReference[0] = {};
      lookupReference[0].id = LookupValue[0].id;
      lookupReference[0].entityType = LookupValue[0].entityType;
      lookupReference[0].name = LookupValue[0].name;
      LookupAttribute.setValue(lookupReference);
  },



2. OData查询

ODataRetrieve: function (oDataString) {
        var retrieveReq = new XMLHttpRequest();
        retrieveReq.open("GET", encodeURI(Xrm.Page.context.getClientUrl() + "/XRMServices/2011/OrganizationData.svc/" + oDataString), false);
        retrieveReq.setRequestHeader("Accept", "application/json");
        retrieveReq.setRequestHeader("Content-Type", "application/json;charset=utf-8");
        retrieveReq.send();
        return JSON.parse(retrieveReq.responseText).d;
    },



3. 当前用户是否有指定的角色

UserHasRole: function (roleNames) {
        var ODataResult = HP.QuoteForm.ODataRetrieve("SystemUserSet?$select=systemuserroles_association/Name&$expand=systemuserroles_association&$filter=SystemUserId eq guid'" + Xrm.Page.context.getUserId() + "'");
        if (ODataResult != null && ODataResult.results.length == 1 && ODataResult.results[0].systemuserroles_association.results.length > 0) {
            var oDataRoles = ODataResult.results[0].systemuserroles_association.results;
            for (var i = 0; i < oDataRoles.length; i++) {
                for (var j = 0; j < roleNames.length; j++) {
                    if (oDataRoles[i].Name == roleNames[j]) {
                        return true;
                    }
                }
            }
        }
        return false;
    },



4. 判断两个GUID是相同

GuidsisEqual: function (guid1, guid2) {
      var isEqual = false;
      if (guid1 != null && guid2 != null) {
          isEqual = guid1.replace(/[{}]/g, "").toLowerCase() == guid2.replace(/[{}]/g, "").toLowerCase();
      }
      return isEqual;
  },
