运用 Eclipse 的 Maven 2 插件开发一个 JEE 项目

热度:707   发布时间:2016-04-23 12:17:03.0
使用 Eclipse 的 Maven 2 插件开发一个 JEE 项目
        本文是博客《集成 Maven 2 插件到 Eclipse 的过程》和《将本地开发的 Maven 2 项目部署到 Linux Tomcat 下的步骤》的姊妹篇。本文介绍如何使用已安装好的 Maven 2 插件开发一个 JEE 项目。
        1.新建 Maven 项目

        Eclipse 的 Package Explorer 视图下右击 -> New -> Maven -> Maven Project -> Next -> Select project name and location 对话框直接点 Next -> Select an Archetype 对话框,Catalog 选择 "All Catalogs",Filter 选择 Group Id 为 "org.apache.maven.archetypes"、Artifact Id 为 "maven-archetype-quickstart"、Version 为 "1.1" 的那个,点 Next -> Enter an artifact id 对话框,Group Id 输入项目组 "mia",Artifact Id 输入 "noti-service"(最好是你的项目名),Version 输入版本号 "1.0.0",Package 输入主干包名 "com.defonds.noti",点击 Finish,新的 Maven 项目 noti-service 生成。如下图所示:

新建 Maven 项目

        2.编辑 pom.xml

        根据项目的需要,引入所依赖的包。作者的 pom.xml 示例如下:

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">  <modelVersion>4.0.0</modelVersion>  <groupId>mia</groupId>  <artifactId>noti-service</artifactId>  <version>1.0.0</version>  <packaging>jar</packaging>  <name>noti-service</name>  <url>http://maven.apache.org</url>  <properties>    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>    <spring.version>3.1.2.RELEASE</spring.version>    <httpClient.version>4.1.3</httpClient.version>  </properties>  <dependencies>	    <dependency>      <groupId>junit</groupId>      <artifactId>junit</artifactId>      <version>3.8.1</version>      <scope>test</scope>    </dependency>        <!-- uniform spring version and using new spring MVC annotation begin-->			<dependency>		<groupId>org.springframework</groupId>		<artifactId>spring-core</artifactId>		<version>${spring.version}</version>	</dependency>	<dependency>		<groupId>org.springframework</groupId>		<artifactId>spring-web</artifactId>		<version>${spring.version}</version>	</dependency>	<dependency>		<groupId>org.springframework</groupId>		<artifactId>spring-orm</artifactId>		<version>${spring.version}</version>	</dependency>		<dependency>		<groupId>org.springframework</groupId>		<artifactId>spring-context</artifactId>		<version>${spring.version}</version>	</dependency>	<dependency>		<groupId>org.springframework</groupId>		<artifactId>spring-webmvc</artifactId>		<version>${spring.version}</version>	</dependency>	<dependency>		<groupId>org.springframework</groupId>		<artifactId>spring-tx</artifactId>		<version>${spring.version}</version>	</dependency>	<!-- uniform spring version and using new spring MVC annotation end-->		<dependency>		<groupId>org.codehaus.jackson</groupId>		<artifactId>jackson-mapper-asl</artifactId>		<version>1.9.2</version>	</dependency>		<dependency>		<groupId>org.codehaus.jackson</groupId>		<artifactId>jackson-core-asl</artifactId>		<version>1.9.2</version>	</dependency>		<dependency>		<groupId>log4j</groupId>		<artifactId>log4j</artifactId>		<version>1.2.16</version>	</dependency>			<dependency>		<groupId>org.apache.ibatis</groupId>		<artifactId>ibatis-sqlmap</artifactId>		<version>2.3.4.726</version>	</dependency>		<dependency>		<groupId>commons-lang</groupId>		<artifactId>commons-lang</artifactId>		<version>2.4</version>	</dependency>		<dependency>		<groupId>commons-dbcp</groupId>		<artifactId>commons-dbcp</artifactId>		<version>1.2.2</version>	</dependency>		<dependency>			 <groupId>commons-exec</groupId>  			<artifactId>commons-exec</artifactId>  			<version>1.0</version>	</dependency>		<dependency>		<groupId>mysql</groupId>		<artifactId>mysql-connector-java</artifactId>		<version>5.1.19</version>	</dependency>		<dependency>		<groupId>org.slf4j</groupId>		<artifactId>slf4j-api</artifactId>		<version>1.6.1</version>	</dependency>	<dependency>		<groupId>org.slf4j</groupId>		<artifactId>slf4j-log4j12</artifactId>		<version>1.6.1</version>	</dependency>			<dependency>			<groupId>org.apache.httpcomponents</groupId>			<artifactId>httpclient</artifactId>			<version>${httpClient.version}</version>		</dependency>				<dependency>			<groupId>org.apache.httpcomponents</groupId>			<artifactId>httpcore</artifactId>			<version>${httpClient.version}</version>		</dependency>				<dependency>			<groupId>org.apache.httpcomponents</groupId>			<artifactId>httpmime</artifactId>			<version>${httpClient.version}</version>		</dependency>			<dependency>			<groupId>commons-codec</groupId>			<artifactId>commons-codec</artifactId>			<version>1.6</version>		</dependency>				<!-- api invoker -->		<dependency>			<groupId>commons-httpclient</groupId>			<artifactId>commons-httpclient</artifactId>			<version>3.1</version>		</dependency>				<dependency>			<groupId>dom4j</groupId>			<artifactId>dom4j</artifactId>			<version>1.6.1</version>		</dependency>				<dependency>			<groupId>json</groupId>			<artifactId>json</artifactId>			<version>2.3</version>		</dependency>		  </dependencies>    <build>  	<plugins>  		<plugin>			<artifactId>maven-compiler-plugin</artifactId>			<configuration>				<source>1.6</source>				<target>1.6</target>				<encoding>UTF-8</encoding>				<failOnError>false</failOnError>			</configuration>		</plugin>		<plugin>			<artifactId>maven-jar-plugin</artifactId>			<configuration>				<archive>					<addMavenDescriptor>false</addMavenDescriptor>				</archive>			</configuration>		</plugin>		<plugin>			<groupId>org.apache.maven.plugins</groupId>			<artifactId>maven-source-plugin</artifactId>			<executions>				<execution>					<id>attach-sources</id>					<phase>verify</phase>					<goals>						<goal>jar</goal>					</goals>				</execution>			</executions>		</plugin>		<plugin>			<artifactId>maven-assembly-plugin</artifactId>			<version>2.2-beta-1</version>			<configuration>				<descriptors>					<descriptor>assembly.xml</descriptor>				</descriptors>				<appendAssemblyId>false</appendAssemblyId>			</configuration>			<executions>				<execution>					<id>make-assembly</id>					<phase>package</phase>					<goals>						<goal>single</goal>					</goals>				</execution>			</executions>		</plugin>  	</plugins>  </build></project>

        3.新建 web.xml

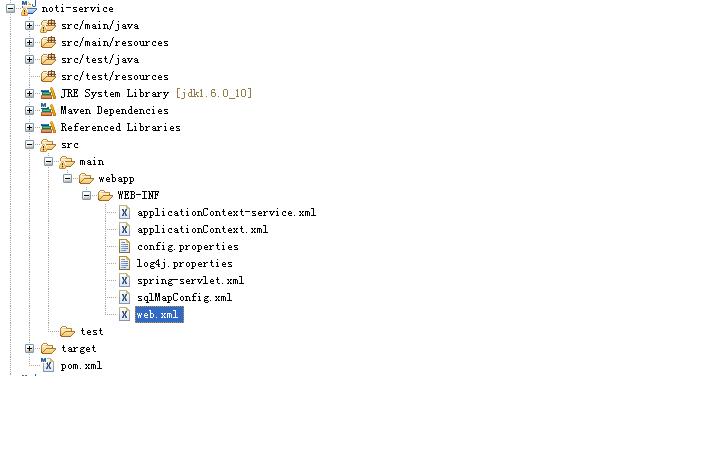

        src - main 下新建目录 webapp,webapp 下新建目录 WEB-INF,WEB-INF 下新建 web.xml,如下图所示:

新建 web.xml

        根据项目的实际需要编辑 web.xml,作者的示例如下:

<?xml version="1.0" encoding="UTF-8"?><web-app id="WebApp_ID" version="2.4"	xmlns="http://java.sun.com/xml/ns/j2ee" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"	xsi:schemaLocation="http://java.sun.com/xml/ns/j2ee http://java.sun.com/xml/ns/j2ee/web-app_2_4.xsd">	<display-name>noti-service</display-name>	<context-param>		<param-name>log4jConfigLocation</param-name>		<param-value>/WEB-INF/log4j.properties</param-value>	</context-param>	<context-param>		<param-name>webAppRootKey</param-name>		<param-value>noti-service.root</param-value>	</context-param>	<context-param>		<param-name>log4jRefreshInterval</param-name>		<param-value>60000</param-value>	</context-param>	<context-param>		<param-name>contextConfigLocation</param-name>		<param-value>/WEB-INF/applicationContext*.xml</param-value>	</context-param>		<listener>		<listener-class>org.springframework.web.util.Log4jConfigListener</listener-class>	</listener>		<listener>		<listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>	</listener>	<filter>		<filter-name>SetCharacterEncoding</filter-name>		<filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>		<init-param>			<param-name>encoding</param-name>			<param-value>utf-8</param-value>		</init-param>	</filter>	<filter-mapping>		<filter-name>SetCharacterEncoding</filter-name>		<url-pattern>/*</url-pattern>	</filter-mapping>			<!-- Spring MVC see /WEB-INF/spring-servlet.xml -->	<servlet>		<servlet-name>spring</servlet-name>		<servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>		<load-on-startup>1</load-on-startup>	</servlet>	<servlet-mapping>		<servlet-name>spring</servlet-name>		<url-pattern>/</url-pattern>	</servlet-mapping>	<!-- session timeout, unit: second -->	<session-config>		<session-timeout>120</session-timeout>	</session-config></web-app>

        4.新建资源目录
        src - main 和 src - test 下分别新建目录 resources。
        5.修改 .classpath

        切换至 Eclipse 的 Navigator 视图,编辑 noti-service 项目下的 .classpath 文件内容如下:

<?xml version="1.0" encoding="UTF-8"?><classpath>	<classpathentry kind="src" path="src/main/java"/>	<classpathentry kind="src" path="src/main/resources"/>	<classpathentry kind="src" path="src/test/java"/>	<classpathentry kind="src" path="src/test/resources"/>	<classpathentry kind="con" path="org.eclipse.jdt.launching.JRE_CONTAINER"/>	<classpathentry kind="con" path="org.maven.ide.eclipse.MAVEN2_CLASSPATH_CONTAINER"/>	<classpathentry kind="var" path="TOMCAT_HOME/lib/servlet-api.jar"/>	<classpathentry kind="var" path="TOMCAT_HOME/lib/jasper.jar"/>	<classpathentry kind="var" path="TOMCAT_HOME/lib/jsp-api.jar"/>	<classpathentry kind="var" path="TOMCAT_HOME/lib/el-api.jar"/>	<classpathentry kind="var" path="TOMCAT_HOME/lib/annotations-api.jar"/>	<classpathentry kind="output" path="src/main/webapp/WEB-INF/classes"/></classpath>

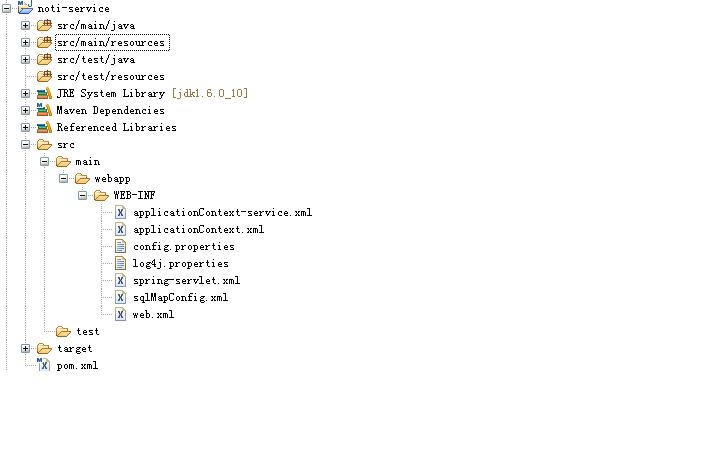

        编辑好保存后,Package Explorer 视图下的 noti-service 如下:

编辑.classpath后

        6.部署到 tomcat 下
        首先要安装 tomcat 插件,可以参考《集成 Tomcat 插件到 Eclipse 的过程》。

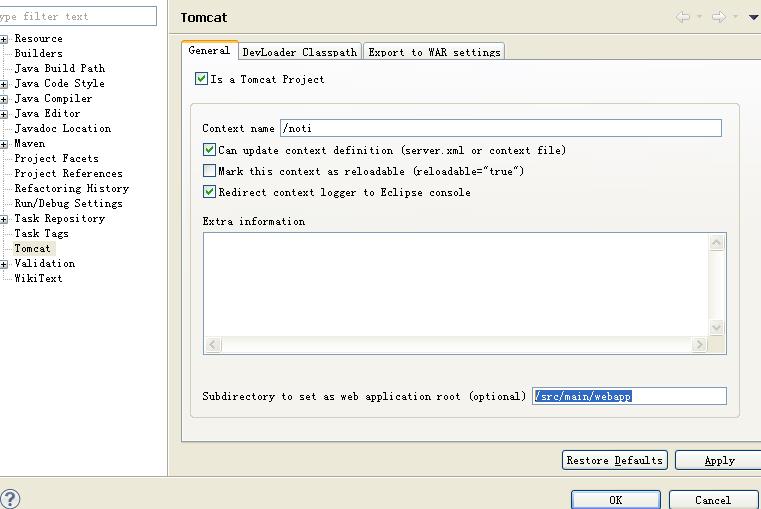

        安装好 tomcat 插件后,Package Explorer 视图下右击项目名,点击 Properties 打开 Properties 对话框,Tomcat -> 勾选 Is a Tomcat Project,输入 Context name 内容为 "/noti",输入 Subdirectory to set as web application root(optional) 内容为 "/src/main/webapp",(可以参考下图)点击 OK。

tomcat部署配置

        这时项目根目录下会有 .tomcatplugin 生成,而 %tomcat%/conf/Catalina/localhost 目录下会有 noti.xml 生成。
        7.修改 .tomcatplugin

        切换至 Eclipse 的 Navigator 视图,编辑 noti-service 项目下的 .tomcatplugin 文件内容如下:

<?xml version="1.0" encoding="UTF-8"?><tomcatProjectProperties>    <rootDir>/src/main/webapp</rootDir>    <exportSource>false</exportSource>    <reloadable>false</reloadable>    <redirectLogger>true</redirectLogger>    <updateXml>true</updateXml>    <warLocation></warLocation>    <extraInfo></extraInfo>    <webPath>/noti</webPath>    <webClassPathEntries>        <webClassPathEntry>/noti-service/src/main/webapp/WEB-INF/classes</webClassPathEntry>        <webClassPathEntry>org.maven.ide.eclipse.MAVEN2_CLASSPATH_CONTAINER</webClassPathEntry>    </webClassPathEntries></tomcatProjectProperties>


        8.断点跟踪

        这时,你就可以单击工具栏里的小猫小猫按钮按钮,对自己的 JEE 项目进行断点跟踪调试了。项目最终截图如下:

项目最终截图
