[Architect] Abp 框架原理解析(一) Module

热度:585   发布时间:2016-04-28 09:57:48.0
[Architect] Abp 框架原理解析(1) Module

本节目录



Abp介绍

学习了一段时间的Abp,领略了一下前辈的架构.总结还是SOLID,降低耦合性.

虽然从架构上说甚至不依赖于DI框架,但实际上在基础框架中还是有一定的必须依赖Castle Windsor.

Abp依靠IOC和AOP实现了大量的自动化.

其中Module设计,是Abp的核心.



Abp源码分析

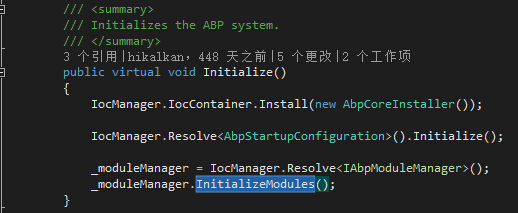

Abp的入口:AbpBootstrapper.Initialize()

此方法中做了各种配置的注册及初始化.

最重要的是AbpModuleManager的初始化.

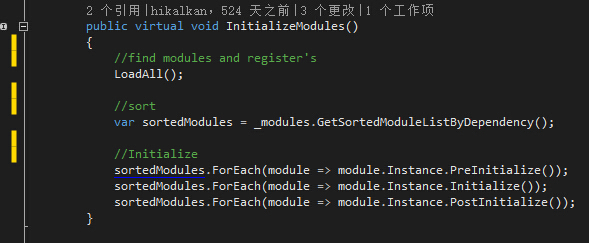

在这个初始化代码中

先查询出所有的module,根据依赖关系排序后.并保证AbpKernelModule为第一.

然后初始化module,所有module依次调用PreInitialize、Initialize、PostInitialize



代码实现

定义AbpModule

    public class AbpModule    {        public virtual void PreInitialize() { }        public virtual void Initialize() { }        public virtual void PostInitialize() { }    }



定义2个module

    public class ApplicationModule : AbpModule    {        public override void PreInitialize()        {            Console.WriteLine("ApplicationModule's PreInitialize is called");        }        public override void Initialize()        {            Console.WriteLine("ApplicationModule's Initialize is called");        }        public override void PostInitialize()        {            Console.WriteLine("ApplicationModule's PostInitialize is called");        }    }    public class CoreModule : AbpModule    {        public override void PreInitialize()        {            Console.WriteLine("CoreModule's PreInitialize is called");        }        public override void Initialize()        {            Console.WriteLine("CoreModule's Initialize is called");        }        public override void PostInitialize()        {            Console.WriteLine("CoreModule's PostInitialize is called");        }    }



定义IoCManager

    public class IocManager    {        public static IocManager Instance { get; private set; }        public IWindsorContainer IocContainer { get; private set; }        static IocManager()        {            Instance = new IocManager();        }        public IocManager()        {            IocContainer = new WindsorContainer();            //Register self!            IocContainer.Register(                Component.For<IocManager>().UsingFactoryMethod(() => this)                );        }    }



实现AbpBootstrapper

    public class AbpBootstrapper    {        public IocManager IocManager { get; private set; }        public AbpBootstrapper()        {            IocManager = IocManager.Instance;        }        public virtual void Initialize()        {            InitializeModules();        }        private void InitializeModules()        {            var types = Assembly.GetExecutingAssembly().GetTypes();            var moduleTypes = new List<Type>();            var modules = new List<AbpModule>();            foreach (var type in types)            {                if (typeof(AbpModule).IsAssignableFrom(type))                {                    moduleTypes.Add(type);                    IocManager.IocContainer.Register(Component.For(type));                }            }            foreach (var module in moduleTypes)            {                var obj = IocManager.IocContainer.Resolve(module) as AbpModule;                modules.Add(obj);            }            modules.ForEach(x => x.PreInitialize());            modules.ForEach(x => x.Initialize());            modules.ForEach(x => x.PostInitialize());        }    }



执行

    class Program    {        static void Main(string[] args)        {            var booter = new AbpBootstrapper();            booter.Initialize();            Console.ReadKey();        }    }



Abp原理如上,只是在本例中并未做dependency排序处理.

在Abp中的排序依赖ListExtensions类对List的扩展方法实现的.

本文地址:http://neverc.cnblogs.com/p/5249103.html
