CUDA By Examples 9 - 原子操作 Atomics_综合

一. 背景

有些操作不能被拆分, 否则会引发计算错误.
使thread对资源有暂时的”独占性”, 避免计算错误.

二. CPU计算直方图

辅助代码见: http://blog.csdn.net/full_speed_turbo/article/details/71107132

#include "../common/book.h"#define SIZE (100*1024*1024)
#include <ctime>
clock_t  clockBegin, clockEnd;
void PrintfContainerElapseTime(char *pszContainerName, char *pszOperator, long lElapsetime)
{    printf("%s 的 %s操作 用时 %d毫秒\n", pszContainerName, pszOperator, lElapsetime);
}    int main(void)
{clockBegin = clock();   unsigned char *buffer = (unsigned char*)big_random_block( SIZE );unsigned int histo[256];for (int i=0;i<256;i++){histo[i] = 0;}for (int i=0;i<SIZE;i++){histo[buffer[i]]++;}long histoCount = 0;for (int i=0; i<256; i++){histoCount += histo[i];}printf("Histogram Sum: %1d\n", histoCount);clockEnd = clock();   //输出时间是msPrintfContainerElapseTime("100MB U8数据", "进行直方图", clockEnd - clockBegin);   free(buffer);return 0;
}

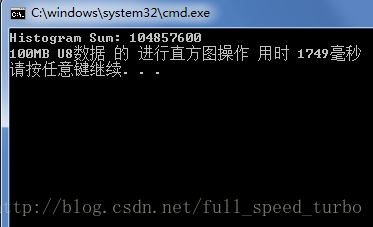

这里写图片描述

三. GPU global memory 计算直方图

#include "../common/book.h"#define SIZE (100*1024*1024)__global__ void histo_kernel(unsigned char *buffer, long size, unsigned int *histo)
{int i = threadIdx.x + blockIdx.x*blockDim.x;int stride = blockDim.x * gridDim.x;while( i<size ){atomicAdd( &(histo[buffer[i]]), 1 );i += stride;}
}int main(void)
{//CPU上mallocunsigned char *buffer = (unsigned char*)big_random_block(SIZE);//为了记录时间cudaEvent_t start, stop;HANDLE_ERROR( cudaEventCreate( &start ) );HANDLE_ERROR( cudaEventCreate( &stop ) );HANDLE_ERROR( cudaEventRecord( start, 0 ) );// GPU上分配内存unsigned char *dev_buffer;unsigned int  *dev_histo;HANDLE_ERROR( cudaMalloc( (void**)&dev_buffer, SIZE ) );HANDLE_ERROR( cudaMemcpy( dev_buffer, buffer, SIZE,cudaMemcpyHostToDevice ) );HANDLE_ERROR( cudaMalloc( (void**)&dev_histo, 256*sizeof(int) ) );HANDLE_ERROR( cudaMemset( dev_histo, 0, 256*sizeof(int) ) );//根据GPU处理器数量确定block数量cudaDeviceProp prop;HANDLE_ERROR( cudaGetDeviceProperties( &prop, 0 ) );int blocks = prop.multiProcessorCount;histo_kernel<<<blocks*2,256>>>( dev_buffer, SIZE, dev_histo );unsigned int histo[256];HANDLE_ERROR( cudaMemcpy(histo, dev_histo,256*sizeof(int),cudaMemcpyDeviceToHost ) );//获取用时HANDLE_ERROR( cudaEventRecord( stop, 0 ) );HANDLE_ERROR( cudaEventSynchronize( stop ) );float elapsedTime;HANDLE_ERROR( cudaEventElapsedTime( &elapsedTime, start, stop ) );printf( "Time to generate: %3.1f ms\n", elapsedTime );long histoCount = 0;for ( int i=0; i<256; i++){histoCount += histo[i];}printf( "Histogram Sum: %1d\n", histoCount );//验证结果for (int i=0; i<SIZE; i++){histo[buffer[i]]--;}for (int i=0; i<256; i++){if (histo[i] != 0){printf("Failure at %d!\n", i);}}HANDLE_ERROR( cudaEventDestroy( start ) );HANDLE_ERROR( cudaEventDestroy( stop ) );cudaFree( dev_buffer );cudaFree( dev_histo );free(buffer);return 0;
}

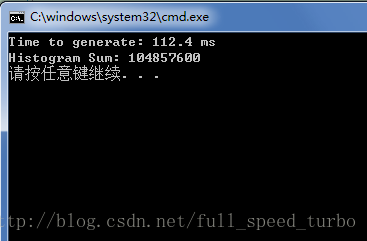

这里写图片描述

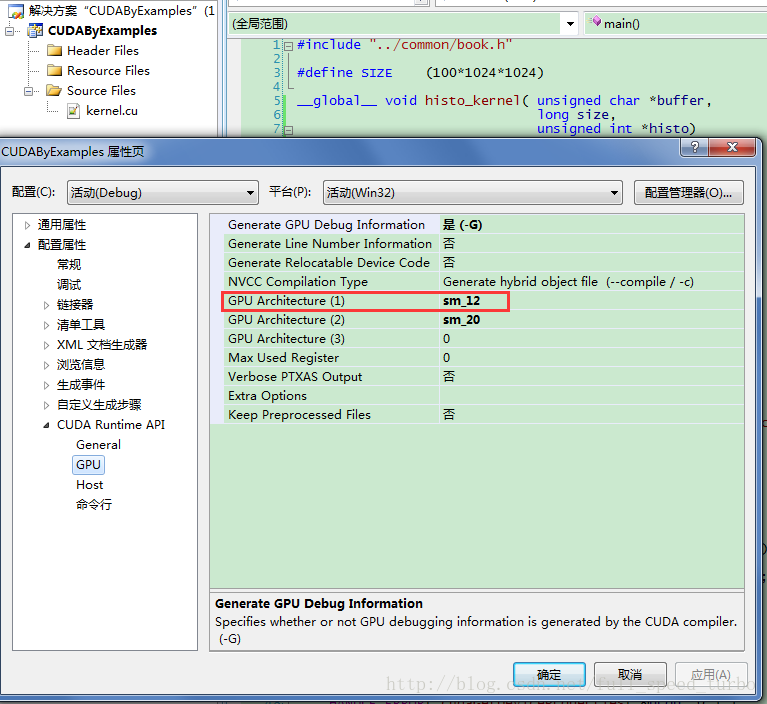

如果有atomicAdd undefined错误, VS2008按照下图设置:
这里写图片描述

四. GPU使用shared memory计算直方图

只修改kernel函数:
1. 每个block有256个thread
2. 每个thread都要先将相应共享内存temp中和threadIdx.x对应的值置0
3. 每个thread统计hist, 步长是线程总数blockDim.x * gridDim.x
4. 每个block有256个thread, 也正好有256个bin. 所以, 每个thread都将相应threadIdx.x的bin加到总的histo上.
5. 注意同步操作, 保证所有thread都计算完成, 再做下一步操作.

__global__ void histo_kernel( unsigned char *buffer,long size,unsigned int *histo)
{__shared__ unsigned int temp[256];temp[threadIdx.x] = 0;__syncthreads();int i = threadIdx.x + blockIdx.x * blockDim.x;int offset = blockDim.x * gridDim.x;while( i < size ){atomicAdd( &temp[buffer[i]], 1);i += offset;}__syncthreads();atomicAdd( &histo[threadIdx.x], temp[threadIdx.x] );
}

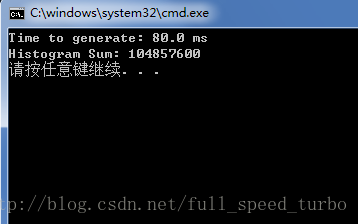

这里写图片描述
