CUDA By Examples 8 - 纹理内存Texture Memory_综合

1. 知识点

纹理内存是read-only.
被cache.
spatial locality.
texture ref需要和buffer bind. 使用完还要unbind.

2. 热传导不用纹理内存

在二维grid内计算热量的传导, 类似于对图像做高通(低通)滤波.

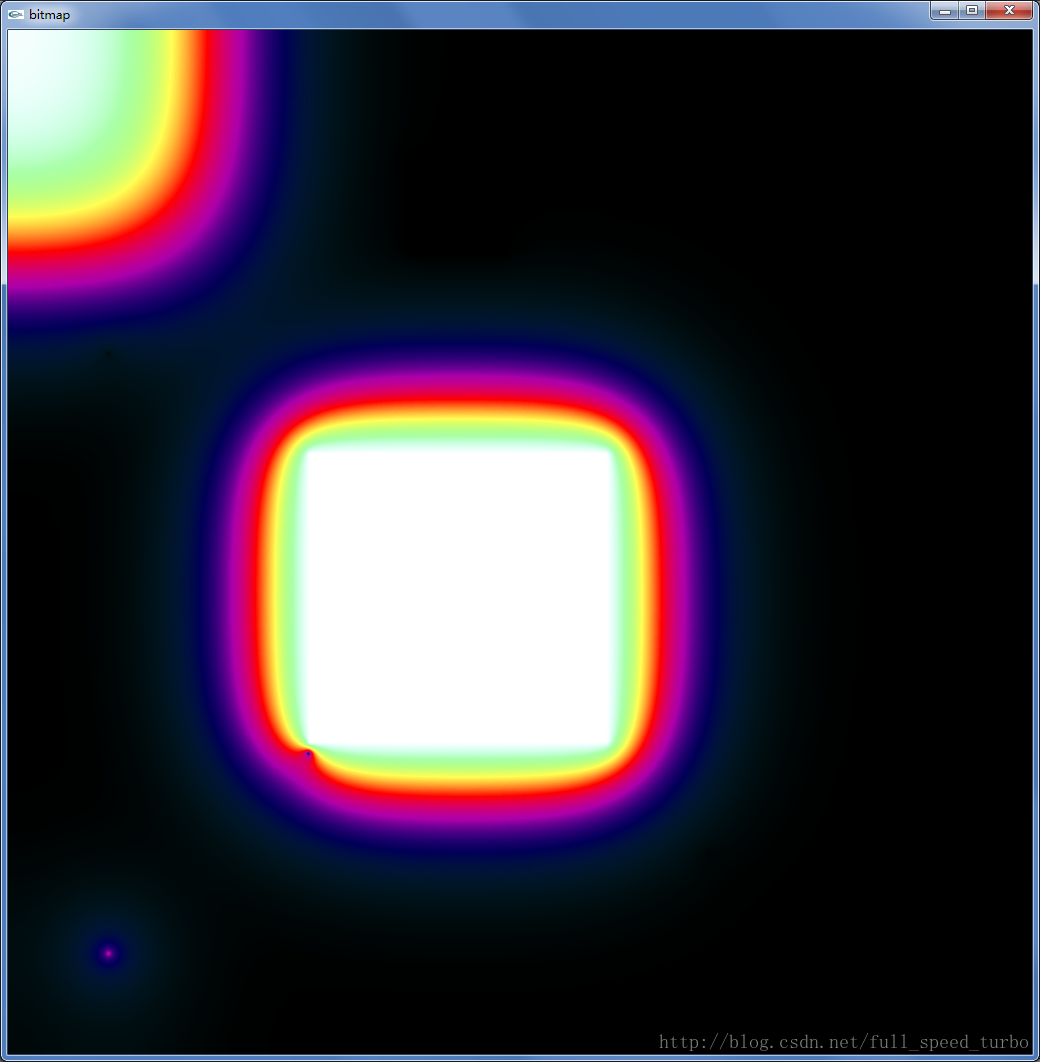

这里写图片描述
当 $1-4k>0$ 时, 相当于低通滤波;
当 $1-4k<0$ 时, 相当于高通滤波.

#include "cuda.h"
#include "../common/book.h"
#include "../common/cpu_bitmap.h"
#include "../common/cpu_anim.h"#define DIM 1024
#define PI 3.1415926535897932f
#define MAX_TEMP 1.0f
#define MIN_TEMP 0.0001f
#define SPEED 0.25fstruct DataBlock{unsigned char   *output_bitmap;float           *dev_inSrc;float           *dev_outSrc;float           *dev_constSrc;CPUAnimBitmap   *bitmap;cudaEvent_t     start, stop;float           totalTime;float           frames;
};
//将初始图中Heat源拷贝到更新后的图像中.
__global__ void copy_const_kernel( float *iptr, const float *cptr)
{int x = threadIdx.x + blockIdx.x * blockDim.x;int y = threadIdx.y + blockIdx.y * blockDim.y;int offset = x + y * blockDim.x * gridDim.x;if (cptr[offset] != 0){iptr[offset] = cptr[offset];}
}
//计算更新后的图像.
__global__ void blend_kernel( float * outSrc, const float *inSrc)
{int x = threadIdx.x + blockIdx.x * blockDim.x;int y = threadIdx.y + blockIdx.y * blockDim.y;int offset = x + y * blockDim.x * gridDim.x;int left = offset - 1;int right = offset + 1;//边界操作.if (x ==0 ){left++;}if (x == DIM-1){right--;}int top = offset -DIM;int bottom = offset + DIM;if (y == 0){top += DIM;}if (y == DIM-1){bottom -= DIM;}outSrc[offset] = inSrc[offset] + SPEED * ( inSrc[top] +inSrc[bottom] + inSrc[left] + inSrc[right] -inSrc[offset]*4);}
//滤波90次算是一帧.
void anim_gpu( DataBlock *d, int ticks )
{HANDLE_ERROR( cudaEventRecord( d->start, 0 ) );dim3 blocks(DIM/16, DIM/16);dim3 threads(16, 16);CPUAnimBitmap *bitmap = d->bitmap;for (int i=0; i<90; i++){copy_const_kernel<<<blocks, threads>>>(d->dev_inSrc,d->dev_constSrc);blend_kernel<<<blocks,threads>>>( d->dev_outSrc,d->dev_inSrc);swap(d->dev_inSrc, d->dev_outSrc);}float_to_color<<<blocks, threads>>>( d->output_bitmap,d->dev_inSrc );HANDLE_ERROR( cudaMemcpy( bitmap->get_ptr(),d->output_bitmap,bitmap->image_size(),cudaMemcpyDeviceToHost ) );HANDLE_ERROR( cudaEventRecord( d->stop, 0 ) );HANDLE_ERROR( cudaEventSynchronize( d->stop ) );float elapsedTime;HANDLE_ERROR( cudaEventElapsedTime( &elapsedTime,d->start, d->stop ) );d->totalTime += elapsedTime;++d->frames;printf( "Average Time per frame: %3.1f ms\n",d->totalTime/d->frames);}void anim_exit( DataBlock *d )
{cudaFree( d->dev_inSrc );cudaFree( d->dev_outSrc );cudaFree( d->dev_constSrc );HANDLE_ERROR( cudaEventDestroy( d->start ) );HANDLE_ERROR( cudaEventDestroy( d->stop ) );}int main(void)
{DataBlock data;CPUAnimBitmap bitmap(DIM,DIM, &data);data.bitmap = &bitmap;data.totalTime = 0;data.frames = 0;HANDLE_ERROR( cudaEventCreate( &data.start ) );HANDLE_ERROR( cudaEventCreate( &data.stop ) );HANDLE_ERROR( cudaMalloc( (void**)&data.output_bitmap,bitmap.image_size() ) );HANDLE_ERROR( cudaMalloc( (void**)&data.dev_inSrc,bitmap.image_size() ) );HANDLE_ERROR( cudaMalloc( (void**)&data.dev_outSrc,bitmap.image_size() ) );HANDLE_ERROR( cudaMalloc( (void**)&data.dev_constSrc,bitmap.image_size() ) );float *temp = (float *)malloc( bitmap.image_size() );for (int i=0; i<DIM*DIM; i++){temp[i] = 0;int x = i % DIM;int y = i / DIM;if ((x>300) && (x<600) && (y>310) && (y<601)){temp[i] = MAX_TEMP;}}temp[DIM*100+100] = (MAX_TEMP + MIN_TEMP)/2;temp[DIM*700+100] = MIN_TEMP;temp[DIM*300+300] = MIN_TEMP;temp[DIM*200+700] = MIN_TEMP;for (int y=800; y<900; y++){for (int x=400; x<500; x++){temp[x+y*DIM] = MIN_TEMP;}}HANDLE_ERROR( cudaMemcpy( data.dev_constSrc, temp,bitmap.image_size(),cudaMemcpyHostToDevice ) );for (int y=800; y<DIM; y++){for (int x=0; x<200; x++){temp[x+y*DIM] = MAX_TEMP;}}HANDLE_ERROR( cudaMemcpy( data.dev_inSrc, temp,bitmap.image_size(),cudaMemcpyHostToDevice ) );free( temp );bitmap.anim_and_exit( (void (*)(void*,int))anim_gpu,(void (*)(void*))anim_exit );}

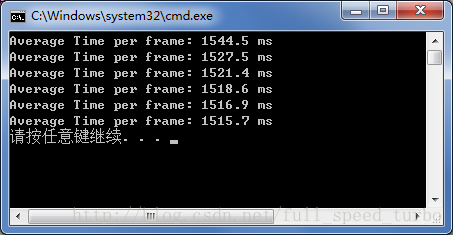

这里写图片描述

3. 使用1-D texture memory

#include "cuda.h"
#include "../common/book.h"
#include "../common/cpu_bitmap.h"
#include "../common/cpu_anim.h"#define DIM 1024
#define PI 3.1415926535897932f
#define MAX_TEMP 1.0f
#define MIN_TEMP 0.0001f
#define SPEED 0.25f//声明texture references.
texture<float> texConstSrc;
texture<float> texIn;
texture<float> texOut;struct DataBlock{unsigned char   *output_bitmap;float           *dev_inSrc;float           *dev_outSrc;float           *dev_constSrc;CPUAnimBitmap   *bitmap;cudaEvent_t     start, stop;float           totalTime;float           frames;
};__global__ void copy_const_kernel( float *iptr)
{int x = threadIdx.x + blockIdx.x * blockDim.x;int y = threadIdx.y + blockIdx.y * blockDim.y;int offset = x + y * blockDim.x * gridDim.x;float c = tex1Dfetch(texConstSrc, offset);if (c != 0){iptr[offset] = c;}
}__global__ void blend_kernel( float *dst, bool dstOut)
{int x = threadIdx.x + blockIdx.x * blockDim.x;int y = threadIdx.y + blockIdx.y * blockDim.y;int offset = x + y * blockDim.x * gridDim.x;int left = offset - 1;int right = offset + 1;if (x ==0 ){left++;}if (x == DIM-1){right--;}int top = offset -DIM;int bottom = offset + DIM;if (y == 0){top += DIM;}if (y == DIM-1){bottom -= DIM;}float t, l, c, r, b;if(dstOut){t = tex1Dfetch(texIn, top);l = tex1Dfetch(texIn, left);c = tex1Dfetch(texIn, offset);r = tex1Dfetch(texIn, right);b = tex1Dfetch(texIn, bottom);}else{t = tex1Dfetch(texOut, top);l = tex1Dfetch(texOut, left);c = tex1Dfetch(texOut, offset);r = tex1Dfetch(texOut, right);b = tex1Dfetch(texOut, bottom);}dst[offset] = c + SPEED * (t + b + r + l - 4 * c);}void anim_gpu( DataBlock *d, int ticks )
{HANDLE_ERROR( cudaEventRecord( d->start, 0 ) );dim3 blocks(DIM/16, DIM/16);dim3 threads(16, 16);CPUAnimBitmap *bitmap = d->bitmap;volatile bool dstOut = true;for (int i=0; i<90; i++){float *in, *out;if (dstOut){in = d->dev_inSrc;out = d->dev_outSrc;}else{out = d->dev_inSrc;in  = d->dev_outSrc;}copy_const_kernel<<<blocks, threads>>>( in );blend_kernel<<<blocks,threads>>>( out, dstOut );dstOut = !dstOut;}float_to_color<<<blocks, threads>>>( d->output_bitmap,d->dev_inSrc );HANDLE_ERROR( cudaMemcpy( bitmap->get_ptr(),d->output_bitmap,bitmap->image_size(),cudaMemcpyDeviceToHost ) );HANDLE_ERROR( cudaEventRecord( d->stop, 0 ) );HANDLE_ERROR( cudaEventSynchronize( d->stop ) );float elapsedTime;HANDLE_ERROR( cudaEventElapsedTime( &elapsedTime,d->start, d->stop ) );d->totalTime += elapsedTime;++d->frames;printf( "Average Time per frame: %3.1f ms\n",d->totalTime/d->frames);}void anim_exit( DataBlock *d )
{//将buffer和ref解绑.cudaUnbindTexture( texIn );cudaUnbindTexture( texOut );cudaUnbindTexture( texConstSrc );cudaFree( d->dev_inSrc );cudaFree( d->dev_outSrc );cudaFree( d->dev_constSrc );HANDLE_ERROR( cudaEventDestroy( d->start ) );HANDLE_ERROR( cudaEventDestroy( d->stop ) );}int main(void)
{DataBlock data;CPUAnimBitmap bitmap(DIM,DIM, &data);data.bitmap = &bitmap;data.totalTime = 0;data.frames = 0;HANDLE_ERROR( cudaEventCreate( &data.start ) );HANDLE_ERROR( cudaEventCreate( &data.stop ) );HANDLE_ERROR( cudaMalloc( (void**)&data.output_bitmap,bitmap.image_size() ) );HANDLE_ERROR( cudaMalloc( (void**)&data.dev_inSrc,bitmap.image_size() ) );HANDLE_ERROR( cudaMalloc( (void**)&data.dev_outSrc,bitmap.image_size() ) );HANDLE_ERROR( cudaMalloc( (void**)&data.dev_constSrc,bitmap.image_size() ) );HANDLE_ERROR( cudaBindTexture( NULL, texConstSrc,data.dev_constSrc,bitmap.image_size() ) );HANDLE_ERROR( cudaBindTexture( NULL, texIn,data.dev_inSrc,bitmap.image_size() ) );HANDLE_ERROR( cudaBindTexture( NULL, texOut,data.dev_outSrc,bitmap.image_size() ) );float *temp = (float *)malloc( bitmap.image_size() );for (int i=0; i<DIM*DIM; i++){temp[i] = 0;int x = i % DIM;int y = i / DIM;if ((x>300) && (x<600) && (y>310) && (y<601)){temp[i] = MAX_TEMP;}}temp[DIM*100+100] = (MAX_TEMP + MIN_TEMP)/2;temp[DIM*700+100] = MIN_TEMP;temp[DIM*300+300] = MIN_TEMP;temp[DIM*200+700] = MIN_TEMP;for (int y=800; y<900; y++){for (int x=400; x<500; x++){temp[x+y*DIM] = MIN_TEMP;}}HANDLE_ERROR( cudaMemcpy( data.dev_constSrc, temp,bitmap.image_size(),cudaMemcpyHostToDevice ) );for (int y=800; y<DIM; y++){for (int x=0; x<200; x++){temp[x+y*DIM] = MAX_TEMP;}}HANDLE_ERROR( cudaMemcpy( data.dev_inSrc, temp,bitmap.image_size(),cudaMemcpyHostToDevice ) );free( temp );bitmap.anim_and_exit( (void (*)(void*,int))anim_gpu,(void (*)(void*))anim_exit );}

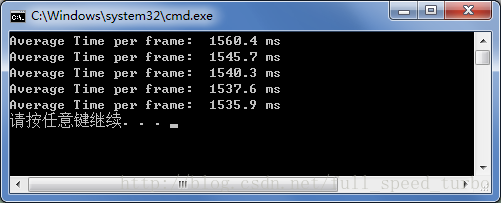

这里写图片描述

4. 使用2-D纹理内存

使用声明texture<float,2> texIn;
使用tex2D(texIn, x, y);读取数据
使用cudaBindTexture2D(...); 绑定纹理内存
使用cudaUnbindTexture( texIn);解绑.


#include "cuda.h"
#include "../common/book.h"
#include "../common/cpu_anim.h"#define DIM 1024
#define PI 3.1415926535897932f
#define MAX_TEMP 1.0f
#define MIN_TEMP 0.0001f
#define SPEED 0.25f// these exist on the GPU side
texture<float, 2>  texConstSrc;
texture<float, 2>  texIn;
texture<float, 2>  texOut;// this kernel takes in a 2-d array of floats
// it updates the value-of-interest by a scaled value based
// on itself and its nearest neighbors
__global__ void blend_kernel( float *dst,bool dstOut ) {// map from threadIdx/BlockIdx to pixel positionint x = threadIdx.x + blockIdx.x * blockDim.x;int y = threadIdx.y + blockIdx.y * blockDim.y;int offset = x + y * blockDim.x * gridDim.x;float   t, l, c, r, b;if (dstOut) {t = tex2D(texIn,x,y-1);l = tex2D(texIn,x-1,y);c = tex2D(texIn,x,y);r = tex2D(texIn,x+1,y);b = tex2D(texIn,x,y+1);} else {t = tex2D(texOut,x,y-1);l = tex2D(texOut,x-1,y);c = tex2D(texOut,x,y);r = tex2D(texOut,x+1,y);b = tex2D(texOut,x,y+1);}dst[offset] = c + SPEED * (t + b + r + l - 4 * c);
}// NOTE - texOffsetConstSrc could either be passed as a
// parameter to this function, or passed in __constant__ memory
// if we declared it as a global above, it would be
// a parameter here:
// __global__ void copy_const_kernel( float *iptr,
// size_t texOffset )
__global__ void copy_const_kernel( float *iptr ) {// map from threadIdx/BlockIdx to pixel positionint x = threadIdx.x + blockIdx.x * blockDim.x;int y = threadIdx.y + blockIdx.y * blockDim.y;int offset = x + y * blockDim.x * gridDim.x;float c = tex2D(texConstSrc,x,y);if (c != 0)iptr[offset] = c;
}// globals needed by the update routine
struct DataBlock {unsigned char   *output_bitmap;float           *dev_inSrc;float           *dev_outSrc;float           *dev_constSrc;CPUAnimBitmap  *bitmap;cudaEvent_t     start, stop;float           totalTime;float           frames;
};void anim_gpu( DataBlock *d, int ticks ) {HANDLE_ERROR( cudaEventRecord( d->start, 0 ) );dim3    blocks(DIM/16,DIM/16);dim3    threads(16,16);CPUAnimBitmap  *bitmap = d->bitmap;// since tex is global and bound, we have to use a flag to// select which is in/out per iterationvolatile bool dstOut = true;for (int i=0; i<90; i++) {float   *in, *out;if (dstOut) {in  = d->dev_inSrc;out = d->dev_outSrc;} else {out = d->dev_inSrc;in  = d->dev_outSrc;}copy_const_kernel<<<blocks,threads>>>( in );blend_kernel<<<blocks,threads>>>( out, dstOut );dstOut = !dstOut;}float_to_color<<<blocks,threads>>>( d->output_bitmap,d->dev_inSrc );HANDLE_ERROR( cudaMemcpy( bitmap->get_ptr(),d->output_bitmap,bitmap->image_size(),cudaMemcpyDeviceToHost ) );HANDLE_ERROR( cudaEventRecord( d->stop, 0 ) );HANDLE_ERROR( cudaEventSynchronize( d->stop ) );float   elapsedTime;HANDLE_ERROR( cudaEventElapsedTime( &elapsedTime,d->start, d->stop ) );d->totalTime += elapsedTime;++d->frames;printf( "Average Time per frame: %3.1f ms\n",d->totalTime/d->frames  );
}// clean up memory allocated on the GPU
void anim_exit( DataBlock *d ) {cudaUnbindTexture( texIn );cudaUnbindTexture( texOut );cudaUnbindTexture( texConstSrc );HANDLE_ERROR( cudaFree( d->dev_inSrc ) );HANDLE_ERROR( cudaFree( d->dev_outSrc ) );HANDLE_ERROR( cudaFree( d->dev_constSrc ) );HANDLE_ERROR( cudaEventDestroy( d->start ) );HANDLE_ERROR( cudaEventDestroy( d->stop ) );
}int main( void ) {DataBlock   data;CPUAnimBitmap bitmap( DIM, DIM, &data );data.bitmap = &bitmap;data.totalTime = 0;data.frames = 0;HANDLE_ERROR( cudaEventCreate( &data.start ) );HANDLE_ERROR( cudaEventCreate( &data.stop ) );int imageSize = bitmap.image_size();HANDLE_ERROR( cudaMalloc( (void**)&data.output_bitmap,imageSize ) );// assume float == 4 chars in size (ie rgba)HANDLE_ERROR( cudaMalloc( (void**)&data.dev_inSrc,imageSize ) );HANDLE_ERROR( cudaMalloc( (void**)&data.dev_outSrc,imageSize ) );HANDLE_ERROR( cudaMalloc( (void**)&data.dev_constSrc,imageSize ) );cudaChannelFormatDesc desc = cudaCreateChannelDesc<float>();HANDLE_ERROR( cudaBindTexture2D( NULL, texConstSrc,data.dev_constSrc,desc, DIM, DIM,sizeof(float) * DIM ) );HANDLE_ERROR( cudaBindTexture2D( NULL, texIn,data.dev_inSrc,desc, DIM, DIM,sizeof(float) * DIM ) );HANDLE_ERROR( cudaBindTexture2D( NULL, texOut,data.dev_outSrc,desc, DIM, DIM,sizeof(float) * DIM ) );// intialize the constant datafloat *temp = (float*)malloc( imageSize );for (int i=0; i<DIM*DIM; i++) {temp[i] = 0;int x = i % DIM;int y = i / DIM;if ((x>300) && (x<600) && (y>310) && (y<601))temp[i] = MAX_TEMP;}temp[DIM*100+100] = (MAX_TEMP + MIN_TEMP)/2;temp[DIM*700+100] = MIN_TEMP;temp[DIM*300+300] = MIN_TEMP;temp[DIM*200+700] = MIN_TEMP;for (int y=800; y<900; y++) {for (int x=400; x<500; x++) {temp[x+y*DIM] = MIN_TEMP;}}HANDLE_ERROR( cudaMemcpy( data.dev_constSrc, temp,imageSize,cudaMemcpyHostToDevice ) );    // initialize the input datafor (int y=800; y<DIM; y++) {for (int x=0; x<200; x++) {temp[x+y*DIM] = MAX_TEMP;}}HANDLE_ERROR( cudaMemcpy( data.dev_inSrc, temp,imageSize,cudaMemcpyHostToDevice ) );free( temp );bitmap.anim_and_exit( (void (*)(void*,int))anim_gpu,(void (*)(void*))anim_exit );
}

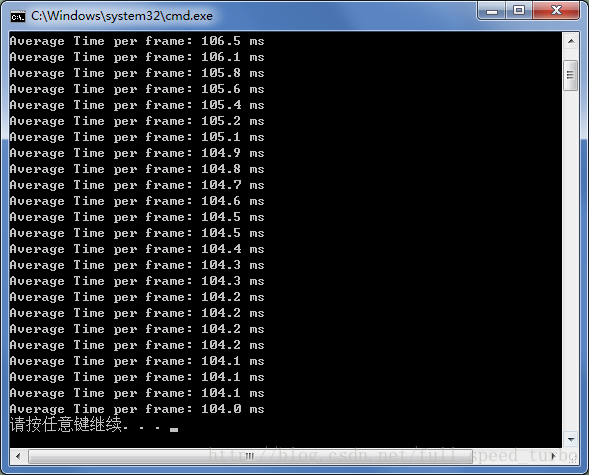

这里写图片描述
