数据结构与算法 LinkList 链表

热度:87   发布时间:2023-09-30 03:45:15.0

顺序表(List)可以根据不同的存储方式来以分类,比如说使用数组或使用节点这种数据结构来实现。在Java中,ArrayList就是由数组为基础结构创建的,而LinkList是由节点对象而构成的。由于Array的下标特性,ArrayList查找、更新元素值的性能好;对于LinkLIst,其添加或删除元素的性能好。链表根据功能特点可以分为多种类型,比如说单向链表、双向链表等。今天,我们来介绍如何实现单链表。

  • 单链表的结构和元素存储特点:
  1. 单链表是以节点对象存储元素的,存储方式是链式的(逻辑结构是一个节点指连着并指向下一个节点)。由于对象是可以在内存中任意位置存储的,所以我们可以知道每个元素的存储存储位置并非是连续的。
  2. 每个节点对象含有数据域和一个节点变量,该节点变量指向下一个节点的存储位置。
  • 链表在内存中的实际结构:
    数据结构与算法 LinkList 链表

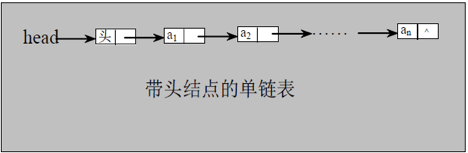

  • 链表的逻辑结构:
    数据结构与算法 LinkList 链表
  • 在实现单链表前,我们规定:
  1. 该链表头节点中不存储数据 (这里默认为0),但是包含指向下一个节点的节点变量。
  2. 尾节点中的节点变量指向null。那么头结点中的节点变量指向null时,说明该链表不包含任何元素。
  • 代码示例:
import com.sun.xml.internal.bind.marshaller.NoEscapeHandler;public class LinkList {
    private Node headNode;private int size;public LinkList(){
    this.headNode = new Node(0);this.size = 0;}/*** append one element into the linkList's end* @param data, a integer*/public void appendElement(int data){
    Node node = new Node(data);Node temp = this.headNode;//如果当前temp的节点变量为null,说明找到了尾节点。while (temp.getNode() != null){
    temp = temp.getNode();}temp.setNode(node);++ this.size;}/*** insert a element into the linkList before one node according to the node's index* @param index*/public void insert(int index, int data){
    if(index > this.size || index < 1){
    System.out.println("Out of boundary.");return;}Node temp = this.headNode;//控制循环,得到index位置节点的前一个节点。for(int i = 1;i < this.size - 1;i ++){
    temp = temp.getNode();}//先把新节点指向index位置节点,在把index位置节点的前一个节点指向新节点。Node node = new Node(data);node.setNode(temp.getNode());temp.setNode(node);++ this.size;}/*** delete a element according to the data.* @param data*/public void deleteElement(int data){
    if(this.size == 0)return;//辅助节点为当前节点的前一个节点Node assistNode = this.headNode;Node node = assistNode.getNode();while (node.getData() != data){
    if(node.getNode() != null){
    assistNode = assistNode.getNode();node = node.getNode();}else {
    return;}}//把辅助节点指向当前节点的后一个节点assistNode.setNode(node.getNode());node = null;//回收当前节点-- this.size;}/*** print out all nodes' data in oder.*/public void printAllNode(){
    Node temp = this.headNode;while (temp.getNode() != null){
    //这里先获取下一个节点并赋给temp,避免head节点的data被打印(我们规定headNode不含数据)temp = temp.getNode();System.out.println(temp.toString());}}}class Node{
    private int data;private Node node;public Node(int data){
    this.data = data;}public void setData(int data) {
    this.data = data;}public void setNode(Node node) {
    this.node = node;}public int getData() {
    return data;}public Node getNode() {
    return node;}@Overridepublic String toString() {
    return "Node{" +"data=" + data +'}';}
}
