spring4 学习四 spring MVC+mybatis+Mysql

热度:409   发布时间:2016-05-05 16:28:33.0
spring4 学习4 spring MVC+mybatis+Mysql

在前面搭建的基础上,引入新的jar包如下:

aopalliance-1.0.jar
aspectjweaver-1.8.8.jar
mybatis-3.3.0.jar
mybatis-spring-1.2.3.jar
mysql-connector-java-5.1.31.jar
spring-aop-4.2.4.RELEASE.jar
spring-aspects-4.2.4.RELEASE.jar
spring-jdbc-4.2.4.RELEASE.jar
spring-orm-4.2.4.RELEASE.jar
spring-oxm-4.2.4.RELEASE.jar
spring-tx-4.2.4.RELEASE.jar

代码结构如下:下载地址




localConfig.properties

Java代码  收藏代码
  1. #datasource properties
  2. jdbc.url=jdbc:mysql://localhost:3306/world
  3. jdbc.username=root
  4. jdbc.password=root



spring-dataSource.xml



Java代码  收藏代码
  1. <?xml version="1.0" encoding="UTF-8"?>
  2. <beans xmlns="http://www.springframework.org/schema/beans"
  3.     xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  4.     xmlns:tx="http://www.springframework.org/schema/tx"
  5.     xmlns:aop="http://www.springframework.org/schema/aop"
  6.     xsi:schemaLocation="http://www.springframework.org/schema/beans
  7.     http://www.springframework.org/schema/beans/spring-beans-4.1.xsd
  8.     http://www.springframework.org/schema/aop
  9.     http://www.springframework.org/schema/aop/spring-aop-4.1.xsd
  10.     http://www.springframework.org/schema/tx
  11.     http://www.springframework.org/schema/tx/spring-tx-4.1.xsd">
  12.
  13.     <bean id="dataSource" class="org.springframework.jdbc.datasource.DriverManagerDataSource">
  14.         <property name="driverClassName" value="com.mysql.jdbc.Driver"></property>
  15.         <property name="url" value="${jdbc.url}"></property>
  16.         <property name="username" value="${jdbc.username}"></property>
  17.         <property name="password" value="${jdbc.password}"></property>
  18.     </bean>
  19.
  20.     <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
  21.         <property name="dataSource" ref="dataSource" />
  22.     </bean>
  23.
  24.     <bean id="transactionManager"
  25.         class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
  26.         <property name="dataSource" ref="dataSource" />
  27.     </bean>
  28.     <tx:advice id="txAdvice" transaction-manager="transactionManager">
  29.         <tx:attributes>
  30.             <tx:method name="*" />
  31.         </tx:attributes>
  32.     </tx:advice>
  33.     <aop:config>
  34.         <aop:pointcut expression="execution(* com.xx.demo.bsh.*.*.*(..))"
  35.             id="myPointcut" />
  36.         <aop:advisor advice-ref="txAdvice" pointcut-ref="myPointcut" />
  37.     </aop:config>
  38. </beans>

           配置玩事务后先检查一下mysql中的表的存储引擎是否是innoDB。若是MyISAM,要改成InnoDB,因为MyISAM是事务不安全的。

          查看命令:show create table city;

          修改命令:alter table city engine = InnoDB;

spring-applicationContext.xml

Java代码  收藏代码
  1. <beans xmlns="http://www.springframework.org/schema/beans"
  2.     xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:context="http://www.springframework.org/schema/context"
  3.     xsi:schemaLocation="http://www.springframework.org/schema/beans
  4.              http://www.springframework.org/schema/beans/spring-beans-4.1.xsd
  5.              http://www.springframework.org/schema/context
  6.              http://www.springframework.org/schema/context/spring-context-4.1.xsd">
  7.     <context:annotation-config />
  8.     <context:component-scan base-package="com.xx.demo.dao"/>
  9.     <context:component-scan base-package="com.xx.demo.bsh" />
  10.     <context:property-placeholder location="classpath:config/env/localConfig.properties" />
  11.     <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
  12.         <property name="basePackage" value="com.xx.demo.dao" />
  13.     </bean>
  14.     <import resource="classpath:config/spring-dataSource.xml"/>
  15. </beans>

 ICityDao.java

Java代码  收藏代码
  1. package com.xx.demo.dao.test;
  2.
  3. import java.util.List;
  4.
  5. import org.apache.ibatis.annotations.Delete;
  6. import org.apache.ibatis.annotations.Select;
  7. import org.springframework.stereotype.Repository;
  8.
  9. import com.xx.demo.entity.test.CityEO;
  10.
  11. @Repository("cityDao")
  12. public interface ICityDao {
  13.
  14.     @Select(value = "select count(1) as count from city")
  15.     public long countAll();
  16.
  17.     @Delete(value="delete from city where id=#{id}")
  18.     public void deleteCityById(long id);
  19.
  20.     @Select(value="select * from city")
  21.     public List<CityEO> getAllCitys();
  22.
  23. }

CityEO.java

   EO类属性有数据库列名一致

Java代码  收藏代码
  1. public class CityEO {
  2.     private int id;
  3.     private String name;
  4.     private String countryCode;
  5.     private String district;
  6.     private long population;
  7. ...
  8. }

  TestService.java

Java代码  收藏代码
  1. package com.xx.demo.bsh.test;
  2.
  3. import java.util.List;
  4.
  5. import javax.annotation.Resource;
  6.
  7. import org.springframework.stereotype.Service;
  8.
  9. import com.xx.demo.dao.test.ICityDao;
  10. import com.xx.demo.entity.test.CityEO;
  11.
  12. @Service("testService")
  13. public class TestService {
  14.
  15.     @Resource
  16.     private ICityDao cityDao;
  17.
  18.     public void print(){
  19.         System.out.println("这是服务层方法");
  20.     }
  21.
  22.     public long getCityCount(){
  23.         return cityDao.countAll();
  24.     }
  25.
  26.     public long deleteCityById(long id) {
  27.         cityDao.deleteCityById(id);
  28.         return id;
  29.     }
  30.
  31.     public List<CityEO> getAllCitys(){
  32.         return cityDao.getAllCitys();
  33.     }
  34. }

 TestController.java

Java代码  收藏代码
  1. package com.xx.demo.web.test;
  2.
  3. import java.util.HashMap;
  4. import java.util.List;
  5. import java.util.Map;
  6.
  7. import javax.annotation.Resource;
  8. import javax.servlet.http.HttpServletRequest;
  9.
  10. import org.springframework.stereotype.Controller;
  11. import org.springframework.ui.ModelMap;
  12. import org.springframework.web.bind.annotation.RequestMapping;
  13. import org.springframework.web.bind.annotation.ResponseBody;
  14.
  15. import com.xx.demo.bsh.test.TestService;
  16. import com.xx.demo.entity.test.CityEO;
  17.
  18. @Controller
  19. public class TestController {
  20.     @Resource
  21.     private TestService testService;
  22.
  23.     @RequestMapping("/firstPage")
  24.     public String testMethod(ModelMap model){
  25.         testService.print();
  26.         model.put("msg", "velocity 测试");
  27.         return "test";
  28.     }
  29.
  30.     @RequestMapping("/getCityCount")
  31.     @ResponseBody
  32.     public String getCityCount(){
  33.         Map<String,Object> result = new HashMap<String,Object>();
  34.         long count = testService.getCityCount();
  35.         return String.valueOf(count);
  36.     }
  37.
  38.     @RequestMapping("/deleteCityById")
  39.     @ResponseBody
  40.     public String deleteCityById(HttpServletRequest request){
  41.         long id = Long.valueOf(request.getParameter("id"));
  42.         long result = testService.deleteCityById(id);
  43.         return "delete--OK--"+result;
  44.     }
  45.
  46.     @RequestMapping("/getAllCitys")
  47.     public String getAllCitys(HttpServletRequest request,ModelMap model){
  48.         List<CityEO> citys = testService.getAllCitys();
  49.         model.put("citys", citys);
  50.         return "showCitys";
  51.     }
  52. }

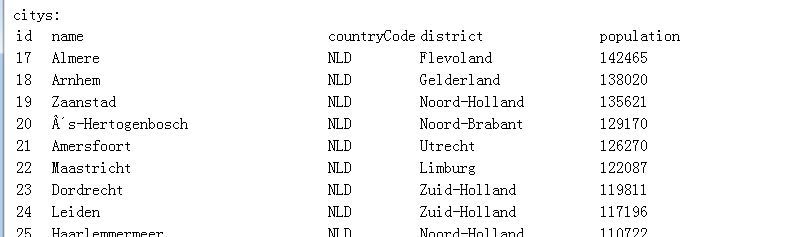

运行结果:

只贴 了 getAllCitys
