Install Openstack with Openvswitch Plugin of Quantum on rhel6.3 by RPM Way ( by quqi99 )

热度:61   发布时间:2023-12-13 09:43:56.0

                                                    Install Openstack with Openvswitch Plugin of Quantum on rhel6.3 by RPM Way ( by quqi99 )


作者:张华  发表于:2013-01-03
版权声明:可以任意转载,转载时请务必以超链接形式标明文章原始出处和作者信息及本版权声明

( http://blog.csdn.net/quqi99 )


Note: Please use root user to execute all bellow commands, make sure not use common user.


    This guide will use openvswitch (ovs) plugin to set up quantum vlan network env.
    As for gre env, redhat kernel not support, for this point, can refer http://wiki.openstack.org/ConfigureOpenvswitch
and https://lists.launchpad.net/openstack/msg18715.html, it said:
    GRE tunneling with the openvswitch plugin requires OVS kernel modules that are not part of the Linux kernel source tree. These modules are not available in certain Linux distributions, including Fedora and RHEL. Tunneling must not be configured on systems without the needed kernel modules. The Open vSwitch web site indicates the OVS GRE tunnel support is being moved into the kernel source tree, but patch ports are not. Once GRE support is available, it should be possible to support tunneling by using veth devices instead of patch ports.

     This env includes two nodes ( two kvm VMs, one has two NICs, one has one NIC, so need create two virtual switch, one is use NAT to visit internet, one is only for internal, must don't start dhcp server for those two vSwitchs )

Two Nodes:
node1, as control, network and compute node
       will install keystone, glance-api, glance-registry, nova-api, nova-schedule, quantum-server, quantum-openvswitch-agent, quantum-l3-agent quantum-dhcp-agent
node2, as compute node
       will install nova-compute quantum-openvswitch-agent

Principle:
for gre mode:
    (vNic------->br-int------>eth1)-----GRE TUNNEL-----------(eth1-----br-int------qr-1549a07f-3a)
    vNic->br-int->patch-tun ->patch-int ->gre gre -> patch-int->patch-tun->br-int->qr-1549a07f-3a
for vlan mode:
    vNic------->int-br-phy------->phy-br-phy------->br-phy  br-phy------->phy-br-phy------->int-br-phy------->tapaec0c85b-09 (gw)


1, Networking
   1.1, Network Info
        for openstack quantum network topology, it equals nova-network topology,
        so you can refer this picture of my developworks article that shows the nova-network topology.
        http://www.ibm.com/developerworks/cn/cloud/library/1209_zhanghua_openstacknetwork/image006.jpg
        http://www.ibm.com/developerworks/cn/cloud/library/1209_zhanghua_openstacknetwork/

        I prepared two VMs in KVM of my laptop, node1 and node2, node1 has two NICs (eth0 and eth1), node2 has one NIC.
        node1:
         br-ex  -->  eth0   192.168.100.108  --> kvm switch (default)
         eth1               172.16.100.108   --> kvm switch (vSwitch1)
         br-int
             br-phy  (don't need this bridge if you are using gre mode)
        node2:
         eth0               172.16.100.109   --> kvm switch (vSwitch1)
         br-int
             br-phy  (don't need this bridge if you are using gre mode)
        Note: NIC name will change when you deploy a new VM using this KVM image because MAC of vNIC has changed,
        so you can delete the file "/etc/udev/rules.d/70-persistent-net.rules" in VM to prevent it, centainly finnally you need reboot the VM.

   1.2, Install Openvswitch
        yum install gcc make python-devel openssl-devel kernel-devel kernel-debug-devel tunctl
        rpm -ivh http://rchgsa.ibm.com/projects/e/emsol/ccs/build/driver/300/openstack/latest-bld/x86_64/kmod-openvswitch-1.4.2-1.el6.x86_64.rpm
        rpm -ivh http://rchgsa.ibm.com/projects/e/emsol/ccs/build/driver/300/openstack/latest-bld/x86_64/openvswitch-1.4.2-1.x86_64.rpm
        Note: above openvswitch.rpm doesn't include brcompat.ko
        service openvswitch restart

    1.3, prepare two virtual vswitch in kvm ( note: must without dhcp )
        default, Forwording to physical device by NAT mode,   192.168.100.0/24
        vSwitch1, Isolated virtual network,  172.16.100.0/24

    1.4, network detail of node1 and node2
      node1:
    [root@node1 ~]# cat /etc/sysconfig/network-scripts/ifcfg-br-ex
    DEVICE=br-ex
    NM_CONTROLLED=no
    ONBOOT=yes
    DEVICETYPE=ovs
    TYPE=OVSBridge
    BOOTPROTO=static
    IPADDR=192.168.100.108
    GATEWAY=192.168.100.1
    BROADCAST=192.168.100.255
    NETMASK=255.255.255.0
    DNS1=8.8.8.8
    IPV6INIT=no
    [root@node1 ~]# cat /etc/sysconfig/network-scripts/ifcfg-eth0
    DEVICE=eth0
    #HWADDR=52:54:00:8C:04:42
    NM_CONTROLLED=no
    ONBOOT=yes
    DEVICETYPE=ovs
    TYPE=OVSPort
    IPV6INIT=no
    OVS_BRIDGE=br-ex
    [root@node1 ~]# cat /etc/sysconfig/network-scripts/ifcfg-eth1
    DEVICE=eth1
    NM_CONTROLLED=no
    ONBOOT=yes
    #DEVICETYPE=eth
    TYPE=Ethernet
    BOOTPROTO=static
    IPADDR=172.16.100.108
    #GATEWAY=172.16.100.108
    BROADCAST=172.16.100.255
    NETMASK=255.255.255.0
    IPV6INIT=no
    [root@node1 ~]# cat /etc/sysconfig/network
    HOSTNAME=node1
    [root@node1 ~]# cat /etc/hosts
    192.168.100.108  pubnode
    172.16.100.108   node1
    172.16.100.109   node2
        [root@node1 ~]# vi /etc/sysctl.conf
            # Uncomment net.ipv4.ip_forward=1, to save you from rebooting, perform the following
            sysctl net.ipv4.ip_forward=1
    [root@node1 ~]# sysctl -w net.ipv4.ip_forward=1
    [root@node1 ~]# route add -net 172.16.100.0 netmask 255.255.255.0 dev eth1
    [root@node1 ~]# route add -net 192.168.100.0 netmask 255.255.255.0 gw 192.168.100.1 dev br-ex
    [root@node1 ~]# iptables -t nat -A POSTROUTING --out-interface br-ex -j MASQUERADE
    [root@node1 ~]# sudo ovs-vsctl add-br br-int

      node2:
    [root@node2 ~]# cat /etc/sysconfig/network-scripts/ifcfg-eth0
    DEVICE=eth0
    NM_CONTROLLED=no
    ONBOOT=yes
    TYPE=Ethernet
    BOOTPROTO=static
    IPADDR=172.16.100.109
    GATEWAY=172.16.100.108
    BROADCAST=172.16.100.255
    NETMASK=255.255.255.0
    DNS1=8.8.8.8
    IPV6INIT=no
    [root@node2 ~]# cat /etc/hosts
    192.168.100.108  pubnode
    172.16.100.108   node1
    172.16.100.109   node2
       [root@node1 ~]# vi /etc/sysctl.conf
            # Uncomment net.ipv4.ip_forward=1, to save you from rebooting, perform the following
            sysctl net.ipv4.ip_forward=1
    [root@node2 ~]# route add default gw 172.16.100.108
    [root@node2 ~]# sudo ovs-vsctl add-br br-int

        above configurations only for gre mode, because we use vlan mode, so need to continue to create a physical ovs bridge.
    node1:
    [root@node1 ~]# cat /etc/sysconfig/network-scripts/ifcfg-br-phy
    DEVICE=br-phy
    NM_CONTROLLED=no
    ONBOOT=yes
    DEVICETYPE=ovs
    TYPE=OVSBridge
    BOOTPROTO=static
    IPADDR=172.16.100.108
    #GATEWAY=172.16.100.108
    BROADCAST=172.16.100.255
    NETMASK=255.255.255.0
    DNS1=8.8.8.8
    IPV6INIT=no
    [root@node1 ~]# cat /etc/sysconfig/network-scripts/ifcfg-eth1
    DEVICE=eth1
    NM_CONTROLLED=no
    ONBOOT=yes
    DEVICETYPE=ovs
    TYPE=OVSPort
    IPV6INIT=no
    OVS_BRIDGE=br-phy

    node2:
    [root@node2 ~]# cat /etc/sysconfig/network-scripts/ifcfg-br-phy
    DEVICE=br-phy
    NM_CONTROLLED=no
    ONBOOT=yes
    DEVICETYPE=ovs
    TYPE=OVSBridge
    BOOTPROTO=static
    IPADDR=172.16.100.109
    GATEWAY=172.16.100.108
    BROADCAST=172.16.100.255
    NETMASK=255.255.255.0
    DNS1=8.8.8.8
    IPV6INIT=no
    [root@node2 ~]# cat /etc/sysconfig/network-scripts/ifcfg-eth0
    DEVICE=eth0
    #HWADDR=52:54:00:8C:04:42
    NM_CONTROLLED=no
    ONBOOT=yes
    DEVICETYPE=ovs
    TYPE=OVSPort
    IPV6INIT=no
    OVS_BRIDGE=br-phy


2, Preparing RHEL6.3
   2.1 shutdown firewall
   2.2 disable selinux.
      vi /etc/selinux/config
          SELINUX=disabled
   2.3 prepare your openstack repository, then execute the command: yum clean all && yum update --exclude boost
       vi /etc/yum.repos.d/base.repo
        [rhel]
    name=rhel
    baseurl=ftp://ftp.redhat.com/pub/redhat/linux/enterprise/6Workstation/en/os/SRPMS/
    enabled=1
    gpgcheck=0

    [centos]
    name=centos
    baseurl=http://mirror.centos.org/centos/6/os/x86_64
    enabled=1
    gpgcheck=0

        Note: This is only part of repository for linux packages, you need find openstack repository url in openstack office site
   2.4, Install common packages
       2.4.1 Install openstack utils
           yum install openstack-utils
       2.4.2 Install and configure mysql
           yum install mysql mysql-server MySQL-python
           chkconfig --level 2345 mysqld on
           service mysqld start
           mysqladmin -u root -p password password   # set password='password' for mysql
           sudo mysql -uroot -ppassword -h127.0.0.1 -e "GRANT ALL PRIVILEGES ON *.* TO 'root'@'%' identified by 'password';"
           sed -i 's/bind-address=127.0.0.1/bind-address=0.0.0.0/g' /etc/my.cnf

           make sure can use root user to visit mysql from any hosts(%), ( update user set host = '%' where user = 'root'; ):
           mysql> select host,user from user;
        +------+----------+
        | host | user     |
        +------+----------+
        | %    | root     |

        +------+----------+



           # clear the former password of mysql
           service mysqld stop && mysqld_safe --skip-grant-tables
           use mysql && UPDATE user SET password=PASSWORD('password') WHERE user='root';
           flush privileges;


        2.4.3 Install qpid
           yum install qpid-cpp-server qpid-cpp-server-daemon
           chkconfig qpidd on
           service qpidd start
        2.4.4 Install memcached
           yum install memcached
        2.4.5 Install python-devel and gcc
           yum install python-devel
           yum install gcc
        2.4.6 Install telnet
           yum install telnet
        2.4.7 export the env variables if you want to execute CLI commands
           export SERVICE_TOKEN=ADMIN
       export SERVICE_ENDPOINT=http://node1:35357/v2.0
       export OS_USERNAME=admin
       export OS_PASSWORD=password
       export OS_TENANT_NAME=admin
       export OS_AUTH_URL=http://node1:5000/v2.0
       export OS_AUTH_STRATEGY=keystone


3, Install Keystone
   3.1 Install the keystone RPM packages
       yum install openstack-keystone python-keystoneclient python-keystone-auth-token
   3.2 Initilize db for keystone
       openstack-db --init --service keystone
       keystone-manage db_sync
       mysql -uroot -ppassword -e "GRANT ALL PRIVILEGES ON *.* TO 'keystone'@'%' WITH GRANT OPTION;"
       mysql -uroot -ppassword -e "SET PASSWORD FOR 'keystone'@'%' = PASSWORD('password');"
   3.3 Configure keystone
       2.4.1 configure db info
           vi /etc/keystone/keystone.conf
         verbose = True
         debug = True
             [sql]
             connection = mysql://root:password@node1/keystone
             [signing]
             token_format = UUID
   3.4 Restart service
       chkconfig openstack-keystone on
       service openstack-keystone restart
       Note: but I fount above command doesn't work, you can use "keystone-all &" to instead it.
   3.5 Init keystone data
       ADMIN_PASSWORD=password SERVICE_PASSWORD=password openstack-keystone-sample-data
   3.6 Verify
       keystone user-list


4. Install Glance
   4.1 Install glance RPM package
       rpm -ivh http://rchgsa.ibm.com/projects/e/emsol/ccs/build/driver/300/openstack/latest-bld/x86_64/pyxattr-0.5.0-1.002.ibm.x86_64.rpm
       rpm -ivh http://rchgsa.ibm.com/projects/e/emsol/ccs/build/driver/300/openstack/latest-bld/x86_64/pysendfile-2.0.0-3.ibm.x86_64.rpm
       yum install python-jsonschema python-swiftclient python-warlock python-glanceclient
       yum install openstack-glance

       Note: there are some issues of openstack-glance-2012.2.1-100.ibm.noarch.rpm, finnaly I use openstack-glance-2012.2.1-002.ibm.noarch.rpm
   4.2 Initilize DB for glance
       openstack-db --rootpw password --init --service glance

       it equals:
         mysql -uroot -ppassword -e 'DROP DATABASE IF EXISTS glance;'
     mysql -uroot -ppassword -e 'CREATE DATABASE glance;'
     mysql -uroot -ppassword -e "grant all on *.* to root@'%'identified by 'password'"
     glance-manage db_sync

       mysql -uroot -ppassword -e "GRANT ALL PRIVILEGES ON *.* TO 'glance'@'%' WITH GRANT OPTION;"
       mysql -uroot -ppassword -e "SET PASSWORD FOR 'glance'@'%' = PASSWORD('password');"
   4.3 Config the glance
       openstack-config --set /etc/glance/glance-api.conf paste_deploy flavor keystone
       openstack-config --set /etc/glance/glance-registry.conf paste_deploy flavor keystone
       openstack-config --set /etc/glance/glance-api.conf DEFAULT sql_connection mysql://root:password@node1/glance
       openstack-config --set /etc/glance/glance-registry.conf DEFAULT sql_connection mysql://root:password@node1/glance
       openstack-config --set /etc/glance/glance-api.conf DEFAULT debug True
       openstack-config --set /etc/glance/glance-registry.conf DEFAULT debug True

       openstack-config --set /etc/glance/glance-api.conf keystone_authtoken auth_uri http://node1:5000/
       openstack-config --set /etc/glance/glance-api.conf keystone_authtoken admin_tenant_name admin
       openstack-config --set /etc/glance/glance-api.conf keystone_authtoken admin_user admin
       openstack-config --set /etc/glance/glance-api.conf keystone_authtoken admin_password password
       openstack-config --set /etc/glance/glance-registry.conf keystone_authtoken auth_uri http://node1:5000/
       openstack-config --set /etc/glance/glance-registry.conf keystone_authtoken admin_tenant_name admin
       openstack-config --set /etc/glance/glance-registry.conf keystone_authtoken admin_user admin
       openstack-config --set /etc/glance/glance-registry.conf keystone_authtoken admin_password password
   4.4 Restart glance service
       chkconfig openstack-glance-api on
       chkconfig openstack-glance-registry on
       service openstack-glance-api restart
       service openstack-glance-registry  restart
   4.5 Add image
       wget http://launchpad.net/cirros/trunk/0.3.0/+download/cirros-0.3.0-x86_64-disk.img
       glance add name=cirros-0.3.0-x86_64  disk_format=qcow2 container_format=bare < cirros-0.3.0-x86_64-disk.img
       [root@node1 tools]# glance index
    ID                                   Name                           Disk Format          Container Format     Size
    ------------------------------------ ------------------------------ -------------------- -------------------- --------------
    40d11c4b-8043-4bd6-87b5-9c27f9b36c6f cirros-0.3.0-x86_64            qcow2                bare                        9761280

       or use bellow scripts to add ami image:
    export IMAGE_ROOT=/root/tools
    cd $IMAGE_ROOT
    mkdir -p $IMAGE_ROOT/images
    wget -c https://github.com/downloads/citrix-openstack/warehouse/tty.tgz -O $IMAGE_ROOT/images/tty.tgz
    tar -zxf $IMAGE_ROOT/images/tty.tgz -C $IMAGE_ROOT/images

    RVAL=`glance add name="cirros-kernel" is_public=true container_format=aki disk_format=aki < $IMAGE_ROOT/images/aki-tty/image`
    KERNEL_ID=`echo $RVAL | cut -d":" -f2 | tr -d " "`
    RVAL=`glance add name="cirros-ramdisk" is_public=true container_format=ari disk_format=ari < $IMAGE_ROOT/images/ari-tty/image`
    RAMDISK_ID=`echo $RVAL | cut -d":" -f2 | tr -d " "`
    glance add name="cirros" is_public=true container_format=ami disk_format=ami kernel_id=$KERNEL_ID ramdisk_id=$RAMDISK_ID < $IMAGE_ROOT/images/ami-tty/image

    TOKEN=`curl -s -d "{\"auth\":{\"passwordCredentials\":{\"username\": \"$OS_USERNAME\", \"password\":\"$OS_PASSWORD\"}, \"tenantName\":\"$OS_TENANT_NAME\"}}" -H "Content-type:application/json" $OS_AUTH_URL/tokens | python -c"import sys; import json; tok = json.loads(sys.stdin.read()); print tok['access']['token']['id'];"`


5, Install quantum
   5.1 Install quantum-server and agent
         yum install openstack-quantum python-quantumclient
         yum install openstack-quantum-openvswitch
   5.2 Create quantum DB
        mysql -uroot -ppassword -e 'DROP DATABASE IF EXISTS ovs_quantum';
        mysql -uroot -ppassword -e 'CREATE DATABASE IF NOT EXISTS ovs_quantum';
    mysql -uroot -ppassword -e "GRANT ALL PRIVILEGES ON *.* TO 'ovs_quantum'@'%' WITH GRANT OPTION;"
    mysql -uroot -ppassword -e "SET PASSWORD FOR 'ovs_quantum'@'%' = PASSWORD('password');"
   5.3 Configure quantum server and agent
       5.3.1 for MQ
             openstack-config --set /etc/quantum/quantum.conf DEFAULT rpc_backend  quantum.openstack.common.rpc.impl_qpid
             openstack-config --set /etc/quantum/quantum.conf DEFAULT qpid_hostname openstack
       5.3.2 for DB
             openstack-config --set /etc/quantum/plugins/openvswitch/ovs_quantum_plugin.ini DATABASE sql_connection mysql://root:password@node1/ovs_quantum?charset=utf8
       6.3.3 Using the ovs plugin in a deployment with multiple hosts requires the using of either tunneling or vlans in order to isolate traffic from multiple networks.
             Edit /etc/quantum/plugins/openvswitch/ovs_quantum_plugin.ini to specify the following values:
                # gre mode
        #enable_tunneling = True
        #tenant_network_type = gre
        #tunnel_id_ranges = 1:1000
        # only if node is running the agent
                # Note: use local_ip = 172.16.100.109 in node2,
                # it will excute this command in node1: ovs-vsctl add-port br-int gre1 -- set interface gre1 type=gre options:remote_ip=172.16.100.109
        #local_ip = 172.16.100.108

        # vlan mode
        tenant_network_type=vlan
        network_vlan_ranges = physnet1:1:4094
        bridge_mappings = physnet1:br-phy

                root_helper = sudo
       5.3.4 for keystone
             openstack-config --set /etc/quantum/api-paste.ini filter:authtoken auth_uri http://node1:5000/
         openstack-config --set /etc/quantum/api-paste.ini filter:authtoken admin_tenant_name admin
         openstack-config --set /etc/quantum/api-paste.ini filter:authtoken admin_user admin
         openstack-config --set /etc/quantum/api-paste.ini filter:authtoken admin_password password
       5.3.5 for openvswitch
             vi /etc/quantum/quantum.conf
             core_plugin = quantum.plugins.openvswitch.ovs_quantum_plugin.OVSQuantumPluginV2
       5.3.6 Fix a bug of quantum-server.
            Note: before starting quantum-server, need first to fix a program error
                  in the file quantum/plugins/openvswitch/ovs_quantum_plugin.py, from line 213 to 216:
         LOG.error(_("Tunneling disabled but "
                        "tenant_network_type is 'gre'. ")
                        "Agent terminated!")
         should be:
         LOG.error(_("Tunneling disabled but "
                        "tenant_network_type is 'gre'. "
                        "Agent terminated!"))

   5.4 Install and configure quantum-dhcp-agent
       The dhcp agent is part of the openstack-quantum package
         #quantum-dhcp-setup --plugin openvswitch

         Note: above quantum-dhcp-setup has bug, you can edit /etc/quantum/dhcp_agent.ini yourself to configure quantum-dhcp-agent

         openstack-config --set /etc/quantum/dhcp_agent.ini DEFAULT use_namespaces False

         fix a bug by the command: ln -s /usr/bin/quantum-dhcp-agent-dnsmasq-lease-update /usr/lib/python2.6/site-packages/quantum/agent/quantum-dhcp-agent-dnsmasq-lease-update
         [root@node1 bak]# sudo QUANTUM_RELAY_SOCKET_PATH=/opt/stack/data/dhcp/lease_relay QUANTUM_NETWORK_ID=40a6fcb3-1f86-49da-b935-bf09d9cd270b dnsmasq --no-hosts --no-resolv --strict-order --bind-interfaces --interface=tapadaa2f08-ce --except-interface=lo --domain=openstacklocal --pid-file=/opt/stack/data/dhcp/40a6fcb3-1f86-49da-b935-bf09d9cd270b/pid --dhcp-hostsfile=/opt/stack/data/dhcp/40a6fcb3-1f86-49da-b935-bf09d9cd270b/host --dhcp-optsfile=/opt/stack/data/dhcp/40a6fcb3-1f86-49da-b935-bf09d9cd270b/opts --dhcp-script=/usr/lib/python2.6/site-packages/quantum/agent/quantum-dhcp-agent-dnsmasq-lease-update --leasefile-ro --dhcp-range=set:tag0,10.0.100.0,static,120s
sh: /usr/lib/python2.6/site-packages/quantum/agent/quantum-dhcp-agent-dnsmasq-lease-update: No such file or directory

dnsmasq: cannot run lease-init script /usr/lib/python2.6/site-packages/quantum/agent/quantum-dhcp-agent-dnsmasq-lease-update: No such file or directory


         another bug, it seems the version of ibm python-quantumclient is wrong:
         [root@node1 bak]# rpm -qa|grep quantum
    python-quantum-2012.2.1-100.ibm.noarch
    openstack-quantum-openvswitch-2012.2.1-100.ibm.noarch
    python-quantumclient-2.1-003.ibm.noarch
    openstack-quantum-2012.2.1-100.ibm.noarch

         [root@node1 bak]# sudo QUANTUM_RELAY_SOCKET_PATH=/opt/stack/data/dhcp/lease_relay QUANTUM_NETWORK_ID=40a6fcb3-1f86-49da-b935-bf09d9cd270b dnsmasq --no-hosts --no-resolv --strict-order --bind-interfaces --interface=tapadaa2f08-ce --except-interface=lo --domain=openstacklocal --pid-file=/opt/stack/data/dhcp/40a6fcb3-1f86-49da-b935-bf09d9cd270b/pid --dhcp-hostsfile=/opt/stack/data/dhcp/40a6fcb3-1f86-49da-b935-bf09d9cd270b/host --dhcp-optsfile=/opt/stack/data/dhcp/40a6fcb3-1f86-49da-b935-bf09d9cd270b/opts --dhcp-script=/usr/lib/python2.6/site-packages/quantum/agent/quantum-dhcp-agent-dnsmasq-lease-update --leasefile-ro --dhcp-range=set:tag0,10.0.100.0,static,120s
Traceback (most recent call last):
  File "/usr/lib/python2.6/site-packages/quantum/agent/quantum-dhcp-agent-dnsmasq-lease-update", line 5, in <module>
    from pkg_resources import load_entry_point
  File "/usr/lib/python2.6/site-packages/pkg_resources.py", line 2659, in <module>
    parse_requirements(__requires__), Environment()
  File "/usr/lib/python2.6/site-packages/pkg_resources.py", line 546, in resolve
    raise DistributionNotFound(req)
pkg_resources.DistributionNotFound: python-quantumclient>=2.0

dnsmasq: lease-init script returned exit code 1

         so I have to commend the line "    '--dhcp-script=%s' % self._lease_relay_script_path()," and the line '--leasefile-ro ' of the file quantum/agent/linux/dhcp.py

   5.5 install quantum-l3-agent
       The l3 agent is part of the openstack-quantum package
         #quantum-l3-setup --plugin openvswitch
         openstack-config --set /etc/quantum/l3_agent.ini DEFAULT external_network_bridge br-ex
         openstack-config --set /etc/quantum/l3_agent.ini DEFAULT interface_driver quantum.agent.linux.interface.OVSInterfaceDriver
         openstack-config --set /etc/quantum/l3_agent.ini DEFAULT auth_uri http://node1:5000/
     openstack-config --set /etc/quantum/l3_agent.ini DEFAULT admin_tenant_name admin
     openstack-config --set /etc/quantum/l3_agent.ini DEFAULT admin_user admin
     openstack-config --set /etc/quantum/l3_agent.ini DEFAULT admin_password password

         openstack-config --set /etc/quantum/l3_agent.ini DEFAULT use_namespaces False
    5.6 Install meta service
         update the /etc/quantum/l3_agent.ini:
     metadata_ip = 192.168.100.108
     metadata_port = 8775

    5.7 For qemu, when using quantum, you need do bellow thing to use quantum.
        cat <<EOF | sudo tee -a /etc/libvirt/qemu.conf
        cgroup_device_acl = [
            "/dev/null", "/dev/full", "/dev/zero",
            "/dev/random", "/dev/urandom",
            "/dev/ptmx", "/dev/kvm", "/dev/kqemu",
            "/dev/rtc", "/dev/hpet","/dev/net/tun",
        ]
        EOF
    5.8 Start the all quantum services:
         chkconfig quantum-server on
         chkconfig quantum-openvswitch-agent on
         chkconfig quantum-dhcp-agent on
         chkconfig quantum-l3-agent on

         service quantum-server restart
         service  quantum-openvswitch-agent restart
         service quantum-dhcp-agent restart
         service quantum-l3-agent restart

         You also can start quantum processes by following ways:
        quantum-server --config-file /etc/quantum/quantum.conf --config-file /etc/quantum/plugins/openvswitch/ovs_quantum_plugin.ini --debug true
    quantum-openvswitch-agent --config-file /etc/quantum/quantum.conf --config-file /etc/quantum/plugins/openvswitch/ovs_quantum_plugin.ini --debug true
    quantum-dhcp-agent --config-file /etc/quantum/quantum.conf --config-file=/etc/quantum/dhcp_agent.ini --debug true
    quantum-l3-agent --config-file /etc/quantum/quantum.conf --config-file=/etc/quantum/l3_agent.ini --debug true

     5.8 append bellow configurations into /etc/nova.conf
        ########## quantum #############
        network_api_class=nova.network.quantumv2.api.API
    quantum_admin_username=admin
    quantum_admin_password=password
    quantum_admin_auth_url=http://node1:5000/v2.0
    quantum_auth_strategy=keystone
    quantum_admin_tenant_name=admin
    quantum_url=http://openstack:9696
    libvirt_vif_driver=nova.virt.libvirt.vif.LibvirtOpenVswitchVirtualPortDriver
    linuxnet_interface_driver=nova.network.linux_net.LinuxOVSInterfaceDriver
        firewall_driver=nova.virt.firewall.NoopFirewallDriver

     5.9 Create the test network
        # nova-network network
        # nova-manage network create demonet 10.0.1.0/24 1 256 --bridge=br100

        # quantum network
        TENANT_ID=cfdf5ed5e5b44d04a608627775a8c5ed
        FLOATING_RANGE=192.168.100.100/24
        PUBLIC_BRIDGE=br-ex

        # Create gre private network
        #quantum net-create net_gre --provider:network_type gre --provider:segmentation_id 122
        #quantum subnet-create --tenant_id $TENANT_ID --ip_version 4 --gateway 10.0.0.1 net_gre 10.0.0.0/24

        # Create vlan private network
         quantum net-create net_vlan --tenant_id=$TENANT_ID  --provider:network_type vlan --provider:physical_network physnet1 --provider:segmentation_id 122
        quantum subnet-create --tenant_id $TENANT_ID --ip_version 4 --gateway 10.0.1.1 net_vlan 10.0.1.0/24


        # Create a router, and add the private subnet as one of its interfaces
        ROUTER_ID=$(quantum router-create --tenant_id $TENANT_ID router1 | grep ' id ' | get_field 2)

        quantum router-interface-add $ROUTER_ID $SUBNET_ID (内部实现时会创建一个port, port的属性为device_owner=network:router_interfacedevice_id=router_idfixed_ip={'ip_address': subnet['gateway_ip'], 'subnet_id': subnet['id']},且分配一个fixed_ip, 例如执行router-interface-add这步操作之后的数据结构是:

[
   {
      u'status':u'DOWN',
      u'subnet':{
         u'cidr':u'10.0.1.0/24',
         u'gateway_ip':u'10.0.1.1',
         u'id':u'fce9745f-6717-4022-a3d0-0807c00cd57a'
      },
      u'binding:      host_id':None,
      u'name':u'',
      u'admin_state_up':True,
      u'network_id':u'21b2784c-90b4-46a0-a418-8ee637b1f6f8',
      u'tenant_id':u'099f4578175443af99091aaa0a50d74e',
      u'binding:      vif_type':u'ovs',
      u'device_owner':      u'network:router_interface',
      u'binding:      capabilities':{
         u'port_filter':True
      },
      u'mac_address':      u'fa:16:3e:      c3:66:68      ',

     u'      fixed_ips':[
         {
            u'subnet_id':u'fce9745f-6717-4022-a3d0-0807c00cd57a',
            u'ip_address':u'10.0.1.1'
         }
      ],
      u'id':u'148e90cf-ed10-4744-a0e6-bfac00270930',
      u'security_groups':[

      ],
      u'device_id':u'e65c999c-d1e7-47bb-a722-f91fb6d2118b'
   }
]

对于这个子网,当l3-agent启动时,会调用其中的internal_network_added方法,生成一个名为qr-****的网关接口,再调用self.driver.init_l3将网关的IP给设置上。

 def internal_network_added(self, ri, network_id, port_id,
                               internal_cidr, mac_address):
        interface_name = self.get_internal_device_name(port_id)
        if not ip_lib.device_exists(interface_name,
                                    root_helper=self.root_helper,
                                    namespace=ri.ns_name()):
            self.driver.plug(network_id, port_id, interface_name, mac_address,
                             namespace=ri.ns_name(),
                             prefix=INTERNAL_DEV_PREFIX)

        self.driver.init_l3(interface_name, [internal_cidr],
                            namespace=ri.ns_name())

        ip_address = internal_cidr.split('/')[0]
        self._send_gratuitous_arp_packet(ri, interface_name, ip_address)


如果这个子网是一个外部子网,则调用的是external_gateway_added方法,建一个外部接口并设上IP(这个和前一样),但要设置到外部网关的默认路由:route', 'add', 'default', 'gw', gw_ip

  def external_gateway_added(self, ri, ex_gw_port,
                               interface_name, internal_cidrs):

        if not ip_lib.device_exists(interface_name,
                                    root_helper=self.root_helper,
                                    namespace=ri.ns_name()):
            self.driver.plug(ex_gw_port['network_id'],
                             ex_gw_port['id'], interface_name,
                             ex_gw_port['mac_address'],
                             bridge=self.conf.external_network_bridge,
                             namespace=ri.ns_name(),
                             prefix=EXTERNAL_DEV_PREFIX)
        self.driver.init_l3(interface_name, [ex_gw_port['ip_cidr']],
                            namespace=ri.ns_name())
        ip_address = ex_gw_port['ip_cidr'].split('/')[0]
        self._send_gratuitous_arp_packet(ri, interface_name, ip_address)

        gw_ip = ex_gw_port['subnet']['gateway_ip']
        if ex_gw_port['subnet']['gateway_ip']:
            cmd = ['route', 'add', 'default', 'gw', gw_ip]
            if self.conf.use_namespaces:
                ip_wrapper = ip_lib.IPWrapper(self.root_helper,
                                              namespace=ri.ns_name())
                ip_wrapper.netns.execute(cmd, check_exit_code=False)
            else:
                utils.execute(cmd, check_exit_code=False,
                              root_helper=self.root_helper)





        # Create external network
        quantum net-create ext_net -- --router:external=True
        quantum subnet-create --allocation-pool start=192.168.100.102,end=192.168.100.126 --gateway 192.168.100.1 ext_net 192.168.100.100/24 --enable_dhcp=False
        # Configure the external network as router gw

        quantum router-gateway-set $ROUTER_ID $EXT_NET_ID (内部实现时会创建一个port, port的属性中有device_owner=network:router_gatewaydevice_id=router_id, 同时也会分配一个公网IP)

         如果还要添加浮动IP的话:

         quantum floatingip-create ext_net

         quantum floatingip-associate <floatingip1-ID> <port-id>

     2013.07.08添加:

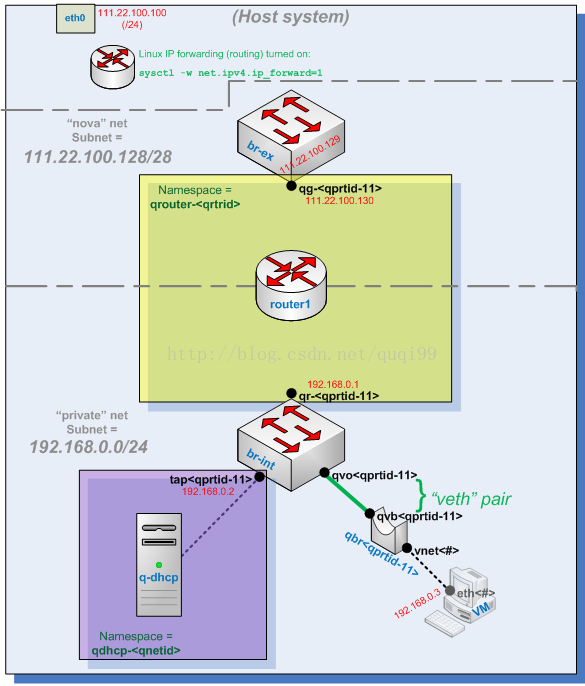

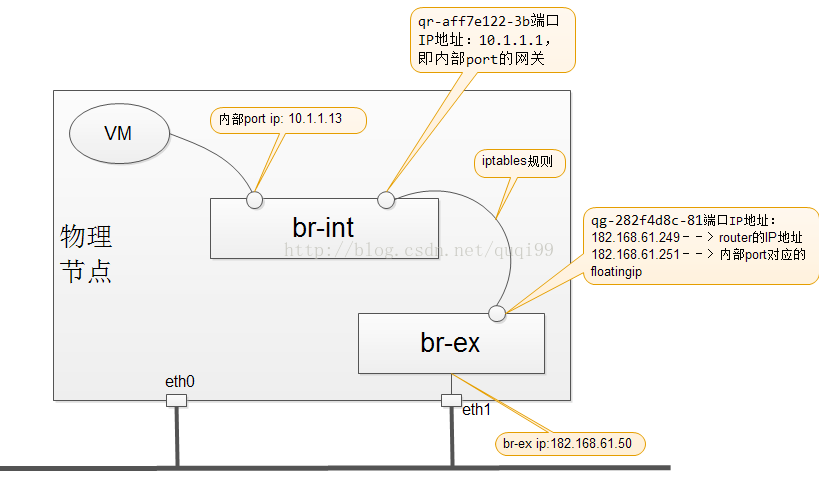

      这时候形成的网络拓扑是:


        这时候,想到一个问题,显然,不同的tenant的网络是通过子网或者vlan来隔离的,但是同一tenent的不同子网要相互通信呢?

    一种方法,可以借助安全组:

iptables -t filter -I FORWARD -i qbr+ -o qbr+ -j ACCEPT这篇博客里的一张图不错(http://blog.csdn.net/lynn_kong/article/details/8779385 ) 借用一下:


        2013.07.09,社区现在的文档做的也挺不错了,http://docs.openstack.org/trunk/openstack-network/admin/content/under_the_hood_openvswitch.html


        # VMs gain access to the metadata server locally present in the controller node via the external network.
        [root@node1 ~]# quantum port-list -- --device_id $ROUTER_ID --device_owner network:router_gateway
    +--------------------------------------+------+-------------------+----------------------------------------------------------------------------------------+
    | id                                   | name | mac_address       | fixed_ips                                                                              |
    +--------------------------------------+------+-------------------+----------------------------------------------------------------------------------------+
    | 19720c1b-2c7f-48a1-aa06-6431cecf8a03 |      | fa:16:3e:ec:00:9b | {"subnet_id": "e8778b38-c804-4e89-9690-a7ee7801205f", "ip_address": "192.168.100.102"} |
    +--------------------------------------+------+-------------------+----------------------------------------------------------------------------------------+
        [root@node1 ~]# route add -net 10.0.0.0/24 gw 192.168.100.102


        if "$Q_USE_NAMESPACE" = "True", then
            CIDR_LEN=${FLOATING_RANGE#*/}
            sudo ip addr add $EXT_GW_IP/$CIDR_LEN dev $PUBLIC_BRIDGE
            sudo ip link set $PUBLIC_BRIDGE up
            ROUTER_GW_IP=`quantum port-list -c fixed_ips -c device_owner | grep router_gateway | awk -F '"' '{ print $8; }'`
            sudo route add -net $FIXED_RANGE gw $ROUTER_GW_IP
        else
            # Explicitly set router id in l3 agent configuration
            openstack-config --set /etc/quantum/l3_agent.ini DEFAULT router_id $ROUTER_ID
        fi


7. Install Nova
   7.1 Install Nova and client
       rpm -ivh http://rchgsa.ibm.com/projects/e/emsol/ccs/build/driver/300/openstack/latest-bld/x86_64/libyaml-0.1.4-3.ibm.x86_64.rpm
       rpm -ivh http://rchgsa.ibm.com/projects/e/emsol/ccs/build/driver/300/openstack/latest-bld/x86_64/libyaml-devel-0.1.4-3.ibm.x86_64.rpm
       rpm -ivh http://rchgsa.ibm.com/projects/e/emsol/ccs/build/driver/300/openstack/latest-bld/x86_64/PyYAML-3.10-6.ibm.x86_64.rpm
       yum install openstack-nova python-nova-adminclient bridge-utils
       yum install audiofile && rpm -ivh http://mirror.centos.org/centos/6/os/x86_64/Packages/esound-libs-0.2.41-3.1.el6.x86_64.rpm
       yum install -y http://pkgs.repoforge.org/qemu/qemu-0.15.0-1.el6.rfx.x86_64.rpm

   7.2 cat /etc/nova/nova.conf
    [DEFAULT]

    ##### Misc #####
    logdir=/var/log/nova
    state_path=/var/lib/nova
    lock_path = /var/lib/nova/tmp
    root_helper=sudo

    ##### nova-api #####
    auth_strategy=keystone
    cc_host=node1

    ##### nova-network #####
    network_manager=nova.network.manager.FlatDHCPManager
    public_interface=eth0
    flat_interface=eth0
    vlan_interface=eth0
    network_host=node1
    fixed_range=10.0.0.0/8
    network_size=1024
    dhcpbridge_flagfile=/etc/nova/nova.conf
    dhcpbridge=/usr/bin/nova-dhcpbridge
    force_dhcp_release=True
    fixed_ip_disassociate_timeout=30
    my_ip=172.16.100.108
    routing_source_ip=192.168.100.108

    ##### nova-compute #####
    connection_type=libvirt
    libvirt_type=qemu
    libvirt_use_virtio_for_bridges=True
    use_cow_images=True
    snapshot_image_format=qcow2

    ##### nova-volume #####
    iscsi_ip_prefix=172.16.100.10
    num_targets=100
    iscsi_helper=tgtadm


        ##### MQ #####
    rabbit_host=node1
        qpid_hostname=node1
    rpc_backend = nova.openstack.common.rpc.impl_qpid

    ##### DB #####
    sql_connection=mysql://root:password@node1/nova

    ##### glance #####
    image_service=nova.image.glance.GlanceImageService
    glance_api_servers=node1:9292

    ##### Vnc #####
    novnc_enabled=true
    novncproxy_base_url=http://pubnode:6080/vnc_auto.html
    novncproxy_port=6080
    vncserver_proxyclient_address=pubnode
    vncserver_listen=0.0.0.0

    ##### Cinder #####
    #volume_api_class=nova.volume.cinder.API
    #osapi_volume_listen_port=5900

        ########## quantum #############
    network_api_class=nova.network.quantumv2.api.API
    quantum_admin_username=admin
    quantum_admin_password=password
    quantum_admin_auth_url=http://node1:5000/v2.0
    quantum_auth_strategy=keystone
    quantum_admin_tenant_name=admin
    quantum_url=http://node1:9696
    libvirt_vif_driver=nova.virt.libvirt.vif.LibvirtOpenVswitchVirtualPortDriver
    linuxnet_interface_driver=nova.network.linux_net.LinuxOVSInterfaceDriver
        firewall_driver=nova.virt.firewall.NoopFirewallDriver

        Note:
        1) my_ip, should be management ip, not public ip, because it need to communicate with other compute nodes
        2) routing_source_ip, NIC that is used for SNAT rule, so it should be external NIC
        3) If the public and management/storage networks would be the same (e.g. 192.168.100.0/24),
           these two parameters (my_ip and routing_source_ip) would not be needed (they both would be 192.168.100.108).

   7.3 Initilize DB for nova
       #openstack-db --rootpw password --init --service nova
       mysql -uroot -ppassword -e 'DROP DATABASE IF EXISTS nova;'
       mysql -uroot -ppassword -e 'CREATE DATABASE nova;'
       nova-manage db sync
   7.4 Create VG nova-volumes
       dd if=/dev/zero of=/var/lib/nova/nova-volumes.img bs=1M seek=20k count=0
       vgcreate nova-volumes $(losetup --show -f /var/lib/nova/nova-volumes.img)
   7.5 Configure qpid
    sed -i 's/auth=yes/auth=no/g' /etc/qpidd.conf
    sed -i 's/#mdns_adv = .*/mdns_adv = 0/g' /etc/libvirt/libvirtd.conf
    [ -e /etc/init.d/qpidd ] && service qpidd start && sudo chkconfig qpidd on
    [ -e /etc/init.d/messagebus ] && /etc/init.d/messagebus start
   7.6 Configure keystone
       openstack-config --set /etc/nova/api-paste.ini filter:authtoken auth_uri http://node1:5000/
       openstack-config --set /etc/nova/api-paste.ini filter:authtoken admin_tenant_name admin
       openstack-config --set /etc/nova/api-paste.ini filter:authtoken admin_user admin
       openstack-config --set /etc/nova/api-paste.ini filter:authtoken admin_password password
   7.7 Start nova service
       service libvirtd restart && sudo chkconfig libvirtd on
       for svc in api compute network scheduler; do chkconfig openstack-nova-$svc on ;  done
       for svc in api compute network scheduler; do service openstack-nova-$svc restart ; done
   7.8 Fix a bug, Quantum+Openvswitch: could not open /dev/net/tun: Operation not permitted
       can refer https://lists.launchpad.net/openstack/msg12269.html
       Dan said " the root cause of needing to tweak /etc/libvirt/qemu.conf is that
                  we're using libvirt <interface type=ethernet> elements to work with openvswitch.  Starting in libvirt 0.9.11"
       also can refer http://binarybitme.blogspot.hk/2012/07/libvirt-0911-has-support-for-open.html

       Binary Bit Me Libvirt 0.9.11 has Support for Open vSwitch Libvirt release 0.9.11 has added support for Open vSwitch so it is no longer
       required to use bridge compatibility mode! Fedora 17 has 0.9.11 included.
       Repository address: http://yum.chriscowley.me.uk/test/el/6/x86_64/RPMS/

       yum remove libvirt
       rpm –import http://yum.chriscowley.me.uk/RPM-GPG-KEY-ChrisCowley
       yum install http://yum.chriscowley.me.uk/el/6/x86_64/RPMS/chriscowley-release-1-2.noarch.rpm
       yum install libvirt --enablerepo=chriscowley-test
       yum install libvirt-devel
       yum install libvirt-python

       and make sure: libvirt_vif_driver=nova.virt.libvirt.vif.LibvirtOpenVswitchVirtualPortDriver
   7.9 Enable live migration, on all hosts.
    Modify /etc/libvirt/libvirtd.conf
    listen_tls = 0
    listen_tcp = 1
    tcp_port = "16509"
    auth_tcp = "none"

    Modify /etc/sysconfig/libvirtd
    LIBVIRTD_ARGS="--listen"
   7.10 Deploy a VM
        nova --debug boot --flavor 1 --image 40d11c4b-8043-4bd6-87b5-9c27f9b36c6f --nic net-id=57ba312a-cba3-4f77-bc15-8829c6bf67a6 i1

[root@node1 ~]# quantum net-list
+--------------------------------------+---------+--------------------------------------+
| id                                   | name    | subnets                              |
+--------------------------------------+---------+--------------------------------------+
| af9f0450-2535-4d49-af68-d3bf4fde4164 | net1    | 3eb3f9da-983d-4e98-a79d-aec5309d2783 |
| 1d2ac18d-a9e4-4b15-929f-7765b7a02f97 | ext_net | e8778b38-c804-4e89-9690-a7ee7801205f |
+--------------------------------------+---------+--------------------------------------+

[root@node1 ~]# nova-manage service list
Binary           Host                                 Zone             Status     State Updated_At
nova-scheduler   node1                                nova             enabled    :-)   2013-01-02 14:03:48
nova-compute     node2                                nova             enabled    :-)   2013-01-02 14:03:47

[root@node1 ~]# glance index
ID                                   Name                           Disk Format          Container Format     Size
------------------------------------ ------------------------------ -------------------- -------------------- --------------
f6c9eb73-aeca-4cab-a217-87da92fe4be6 cirros                         ami                  ami                        25165824
15d2c5e4-feaa-4ca1-9138-d11ccee3fc69 cirros-ramdisk                 ari                  ari                         5882349
2537923f-75b2-4d20-a734-bbabc75dff68 cirros-kernel                  aki                  aki                         4404752
40d11c4b-8043-4bd6-87b5-9c27f9b36c6f cirros-0.3.0-x86_64            qcow2                bare                        9761280

[root@node1 ~]# nova list
+--------------------------------------+------+--------+-------------------+
| ID                                   | Name | Status | Networks          |
+--------------------------------------+------+--------+-------------------+
| 62362f20-eb1b-4840-bd91-6ed10693bcd6 | i1   | ACTIVE | net_vlan=10.0.1.3 |
+--------------------------------------+------+--------+-------------------+
[root@node1 ~]# ping 10.0.1.3
PING 10.0.1.3 (10.0.1.3) 56(84) bytes of data.
64 bytes from 10.0.1.3: icmp_seq=1 ttl=64 time=5.48 ms
64 bytes from 10.0.1.3: icmp_seq=2 ttl=64 time=2.30 ms

[root@node1 ~]# quantum port-list -- --device_id=62362f20-eb1b-4840-bd91-6ed10693bcd6
+--------------------------------------+------+-------------------+---------------------------------------------------------------------------------+
| id                                   | name | mac_address       | fixed_ips                                                                       |
+--------------------------------------+------+-------------------+---------------------------------------------------------------------------------+
| 1c92b8dc-e1a1-40cc-8589-5799080c0822 |      | fa:16:3e:6b:db:82 | {"subnet_id": "0d1c182e-65d6-4646-99ea-373338952a9a", "ip_address": "10.0.1.3"} |
+--------------------------------------+------+-------------------+---------------------------------------------------------------------------------+


8, Vlan network
   8.1, Edit the OVS plugin configuration file /etc/quantum/plugins/openvswitch/ovs_quantum_plugin.ini with:
      [OVS]
        # gre
        #enable_tunneling = True
    #tenant_network_type = gre
    #tunnel_id_ranges = 1:1000
    # only if node is running the agent
    #local_ip = 172.16.100.108

        # vlan
    tenant_network_type=vlan
    network_vlan_ranges = physnet1:1:4094
    bridge_mappings = physnet1:br-phy
   8.2, Add br-eth1 on all hosts
      #br-eth1 will be used for VM configuration
      ovs-vsctl add-br br-phy
      ovs-vsctl add-port br-phy eth0
   8.3, create vlan network
      TENANT_ID=cfdf5ed5e5b44d04a608627775a8c5ed
      quantum net-create --tenant-id $TENANT_ID --provider:network_type vlan --provider:physical_network physnet1 --provider:segmentation_id 1024


9, Self Testing and debug ways

    tcpdump -i vnet0 -nnvvS
    tcpdump  -nnvvS -i tap3e2fb05e-53
    tcpdump -ni eth1 proto gre
    iptables -nvL -t nat

    vi /etc/ovs-ifup
    #!/bin/sh
    BRIDGE='br-int'
        DEVICE=$1
        sudo ovs-vsctl -- --may-exist add-br "$BRIDGE"
        tunctl -u root -t tap0
    sudo ovs-vsctl add-port $BRIDGE $DEVICE tag=1
        ifconfig $DEVICE 0.0.0.0 promisc up

        # dhcp
        NETWORK=10.0.100.0
    NETMASK=255.255.255.0
    GATEWAY=10.0.100.1
    DHCPRANGE=10.0.100.2,10.0.100.254
    # Optionally parameters to enable PXE support
    TFTPROOT=
    BOOTP=
        do_dnsmasq() {
        dnsmasq "$@"
    }
        start_dnsmasq() {
        do_dnsmasq \
                --no-hosts \
                --no-resolv \
        --strict-order \
        --except-interface=lo \
        --interface=tap00578b46-91 \
        --listen-address=$GATEWAY \
        --bind-interfaces \
        --dhcp-range=$DHCPRANGE \
        --conf-file="" \
        --pid-file=/var/run/qemu-dnsmasq-$BRIDGE.pid \
        --dhcp-leasefile=/var/run/qemu-dnsmasq-$BRIDGE.leases \
        --dhcp-no-override \
        ${TFTPROOT:+"--enable-tftp"} \
        ${TFTPROOT:+"--tftp-root=$TFTPROOT"} \
        ${BOOTP:+"--dhcp-boot=$BOOTP"}
    }

    vi /etc/ovs-ifdown
    #!/bin/sh
    BRIDGE='br-int'
        DEVICE=$1
    /sbin/ifconfig $1 0.0.0.0 down
    ovs-vsctl del-port $BRIDGE $BRIDGE

    # install ttylinux into hard disk and use it to debug
    bunzip2 ttylinux-i686-11.2.iso.gz
    qemu-img create -f raw ~/tools/ttylinux.img 100M
    qemu -m 128 -boot c -hda ~/tools/ttylinux.img -cdrom ~/tools/ttylinux-i686-11.2.iso -net nic,macaddr=00:11:22:EE:EE:EE -net tap,ifname=tap0,script=no,downscript=no -vnc :3
    vncviewer localhost:5903
    You can now use the ttylinux-installer to install ttylinux to the virtual disk.
    # ttylinux-installer /dev/hdc /dev/hda
    Once the install has completed, kill the VM from the terminal that you started it from <ctrl>-c.
    Now you can boot your image.
    qemu -m 128 -boot c -hda ~/tools/ttylinux.img -net nic,macaddr=00:11:22:EE:EE:EE -net tap,ifname=tap0,script=no,downscript=no -vnc :3
    qemu -m 128 -boot c -hda ~/tools/ttylinux.img -net nic,macaddr=00:11:22:EE:EE:EE -net tap,ifname=tap0,script=/etc/ovs-ifup,downscript=/etc/ovs-ifdown -vnc :3
    disable ipv6
    sudo sh -c "echo 1 > /proc/sys/net/ipv6/conf/eth0/disable_ipv6"
    echo "0" > /proc/sys/net/ipv6/conf/all/autoconf
    enable dhcp
    vi /etc/sysconfig/network-scripts/ifcfg-eth0
    ENABLE=yes
    DHCP=yes

    sudo ovs-vsctl add-port br-int gre0 -- set interface gre0 type=gre options:remote_ip=10.101.1.1y

    run the comand "udhcpc" to begin dhcp discover.

    # start dhcp server
    dnsmasq --strict-order --bind-interfaces --interface=fordhcptest --conf-file= --except-interface lo --dhcp-option=3 --no-resolv --dhcp-range=10.0.0.3,10.0.0.254
   Note: if you don't use dhcp-optsfile option, please also don't use leasefile-ro options


[root@node1 ~]# ifconfig -a
br-ex     Link encap:Ethernet  HWaddr 86:A1:09:3F:BA:48
          inet addr:192.168.100.108  Bcast:192.168.100.255  Mask:255.255.255.0
          inet6 addr: fe80::84a1:9ff:fe3f:ba48/64 Scope:Link
          UP BROADCAST RUNNING PROMISC MULTICAST  MTU:1500  Metric:1
          RX packets:427 errors:0 dropped:0 overruns:0 frame:0
          TX packets:724 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:0
          RX bytes:66062 (64.5 KiB)  TX bytes:70164 (68.5 KiB)

br-int    Link encap:Ethernet  HWaddr 36:60:27:75:72:48
          BROADCAST MULTICAST  MTU:1500  Metric:1
          RX packets:271 errors:0 dropped:0 overruns:0 frame:0
          TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:0
          RX bytes:33375 (32.5 KiB)  TX bytes:0 (0.0 b)

br-phy    Link encap:Ethernet  HWaddr 9A:D2:8D:A3:C0:41
          inet addr:172.16.100.108  Bcast:172.16.100.255  Mask:255.255.255.0
          inet6 addr: fe80::98d2:8dff:fea3:c041/64 Scope:Link
          UP BROADCAST RUNNING PROMISC MULTICAST  MTU:1500  Metric:1
          RX packets:65485 errors:0 dropped:0 overruns:0 frame:0
          TX packets:61702 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:0
          RX bytes:11974548 (11.4 MiB)  TX bytes:25197505 (24.0 MiB)

eth0      Link encap:Ethernet  HWaddr 52:54:00:8C:04:42
          inet6 addr: fe80::5054:ff:fe8c:442/64 Scope:Link
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
          RX packets:1859 errors:0 dropped:0 overruns:0 frame:0
          TX packets:756 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:122379 (119.5 KiB)  TX bytes:75849 (74.0 KiB)
          Interrupt:10

eth1      Link encap:Ethernet  HWaddr 52:54:00:56:B3:A6
          inet6 addr: fe80::5054:ff:fe56:b3a6/64 Scope:Link
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
          RX packets:66947 errors:0 dropped:0 overruns:0 frame:0
          TX packets:66704 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:11125104 (10.6 MiB)  TX bytes:25532683 (24.3 MiB)
          Interrupt:11 Base address:0xc000

int-br-phy Link encap:Ethernet  HWaddr 52:1C:F9:84:DF:87
          inet6 addr: fe80::501c:f9ff:fe84:df87/64 Scope:Link
          UP BROADCAST RUNNING PROMISC MULTICAST  MTU:1500  Metric:1
          RX packets:153 errors:0 dropped:0 overruns:0 frame:0
          TX packets:145 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:15478 (15.1 KiB)  TX bytes:24844 (24.2 KiB)

lo        Link encap:Local Loopback
          inet addr:127.0.0.1  Mask:255.0.0.0
          inet6 addr: ::1/128 Scope:Host
          UP LOOPBACK RUNNING  MTU:16436  Metric:1
          RX packets:533531 errors:0 dropped:0 overruns:0 frame:0
          TX packets:533531 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:0
          RX bytes:108857779 (103.8 MiB)  TX bytes:108857779 (103.8 MiB)

phy-br-phy Link encap:Ethernet  HWaddr BE:B2:B8:A1:50:A6
          inet6 addr: fe80::bcb2:b8ff:fea1:50a6/64 Scope:Link
          UP BROADCAST RUNNING PROMISC MULTICAST  MTU:1500  Metric:1
          RX packets:145 errors:0 dropped:0 overruns:0 frame:0
          TX packets:153 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:24844 (24.2 KiB)  TX bytes:15478 (15.1 KiB)

qg-19720c1b-2c Link encap:Ethernet  HWaddr FA:16:3E:EC:00:9B
          inet addr:192.168.100.102  Bcast:192.168.100.255  Mask:255.255.255.0
          inet6 addr: fe80::f816:3eff:feec:9b/64 Scope:Link
          UP BROADCAST RUNNING PROMISC MULTICAST  MTU:1500  Metric:1
          RX packets:3 errors:0 dropped:0 overruns:0 frame:0
          TX packets:34 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:0
          RX bytes:246 (246.0 b)  TX bytes:5617 (5.4 KiB)

tapaec0c85b-09 Link encap:Ethernet  HWaddr FA:16:3E:84:85:B4
          inet addr:10.0.1.2  Bcast:10.0.1.255  Mask:255.255.255.0
          inet6 addr: fe80::f816:3eff:fe84:85b4/64 Scope:Link
          UP BROADCAST RUNNING PROMISC MULTICAST  MTU:1500  Metric:1
          RX packets:143 errors:0 dropped:0 overruns:0 frame:0
          TX packets:55 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:0
          RX bytes:11968 (11.6 KiB)  TX bytes:9082 (8.8 KiB)

[root@node1 ~]# sudo ovs-vsctl show
b944213c-f5e0-40e5-a796-aef88c7be905
    Bridge br-ex
        Port "qg-19720c1b-2c"
            Interface "qg-19720c1b-2c"
                type: internal
        Port "eth0"
            Interface "eth0"
        Port br-ex
            Interface br-ex
                type: internal
    Bridge br-int
        Port int-br-phy
            Interface int-br-phy
        Port "tapaec0c85b-09"
            tag: 2
            Interface "tapaec0c85b-09"
                type: internal
        Port br-int
            Interface br-int
                type: internal
    Bridge br-phy
        Port "eth1"
            Interface "eth1"
        Port phy-br-phy
            Interface phy-br-phy
        Port br-phy
            Interface br-phy
                type: internal
    ovs_version: "1.4.2"

[root@node2 ~]# sudo ovs-vsctl show
b944213c-f5e0-40e5-a796-aef88c7be905
    Bridge br-tun
        Port br-tun
            Interface br-tun
                type: internal
    Bridge br-phy
        Port "eth0"
            Interface "eth0"
        Port br-phy
            Interface br-phy
                type: internal
        Port phy-br-phy
            Interface phy-br-phy
    Bridge br-int
        Port br-int
            Interface br-int
                type: internal
        Port int-br-phy
            Interface int-br-phy
        Port "vnet0"
            tag: 1
            Interface "vnet0"
    ovs_version: "1.4.2"
[root@node2 ~]# ifconfig -a
br-int    Link encap:Ethernet  HWaddr 36:60:27:75:72:48
          BROADCAST MULTICAST  MTU:1500  Metric:1
          RX packets:132 errors:0 dropped:0 overruns:0 frame:0
          TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:0
          RX bytes:8650 (8.4 KiB)  TX bytes:0 (0.0 b)

br-phy    Link encap:Ethernet  HWaddr 4A:66:FB:10:ED:4D
          inet addr:172.16.100.109  Bcast:172.16.100.255  Mask:255.255.255.0
          inet6 addr: fe80::4866:fbff:fe10:ed4d/64 Scope:Link
          UP BROADCAST RUNNING PROMISC MULTICAST  MTU:1500  Metric:1
          RX packets:36752 errors:0 dropped:0 overruns:0 frame:0
          TX packets:35084 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:0
          RX bytes:9258136 (8.8 MiB)  TX bytes:15957256 (15.2 MiB)

br-tun    Link encap:Ethernet  HWaddr 86:96:A6:04:43:4B
          BROADCAST MULTICAST  MTU:1500  Metric:1
          RX packets:5 errors:0 dropped:0 overruns:0 frame:0
          TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:0
          RX bytes:300 (300.0 b)  TX bytes:0 (0.0 b)

eth0      Link encap:Ethernet  HWaddr 52:54:00:D5:BA:A0
          inet6 addr: fe80::5054:ff:fed5:baa0/64 Scope:Link
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
          RX packets:38097 errors:0 dropped:0 overruns:0 frame:0
          TX packets:38951 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:8807592 (8.3 MiB)  TX bytes:16216350 (15.4 MiB)
          Interrupt:11 Base address:0xc000

int-br-phy Link encap:Ethernet  HWaddr 62:D5:4F:1C:E7:DF
          inet6 addr: fe80::60d5:4fff:fe1c:e7df/64 Scope:Link
          UP BROADCAST RUNNING PROMISC MULTICAST  MTU:1500  Metric:1
          RX packets:54 errors:0 dropped:0 overruns:0 frame:0
          TX packets:151 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:8872 (8.6 KiB)  TX bytes:14188 (13.8 KiB)

lo        Link encap:Local Loopback
          inet addr:127.0.0.1  Mask:255.0.0.0
          inet6 addr: ::1/128 Scope:Host
          UP LOOPBACK RUNNING  MTU:16436  Metric:1
          RX packets:54195 errors:0 dropped:0 overruns:0 frame:0
          TX packets:54195 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:0
          RX bytes:18219330 (17.3 MiB)  TX bytes:18219330 (17.3 MiB)

phy-br-phy Link encap:Ethernet  HWaddr 1A:35:0D:DB:07:3A
          inet6 addr: fe80::1835:dff:fedb:73a/64 Scope:Link
          UP BROADCAST RUNNING PROMISC MULTICAST  MTU:1500  Metric:1
          RX packets:151 errors:0 dropped:0 overruns:0 frame:0
          TX packets:54 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:14188 (13.8 KiB)  TX bytes:8872 (8.6 KiB)

vnet0     Link encap:Ethernet  HWaddr FE:16:3E:6B:DB:82
          inet6 addr: fe80::fc16:3eff:fe6b:db82/64 Scope:Link
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
          RX packets:145 errors:0 dropped:0 overruns:0 frame:0
          TX packets:29 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:500
          RX bytes:11026 (10.7 KiB)  TX bytes:4508 (4.4 KiB)



[Reference]
1, OpenStack-folsom setup on Ubuntu 12.04 in single ESXi host, https://w3-connections.ibm.com/wikis/home?lang=en-us#!/wiki/W3cfc52416a59_406d_8e18_445dc4fb4934/page/OpenStack-folsom%20setup%20on%20Ubuntu%2012.04%20in%20single%20ESXi%20host
2, Getting started with OpenStack on Fedora 17, http://fedoraproject.org/wiki/Getting_started_with_OpenStack_on_Fedora_17
3, Install your own openstack cloud essex edition
4, Fedora 16上源码建立pydev + eclipse的OpenStack开发环境笔记草稿 ( by quqi99 ) , http://blog.csdn.net/quqi99/article/details/7411091
5, https://github.com/josh-wrale/OpenStack-Folsom-Install-guide/blob/master/OpenStack_Folsom_Install_Guide_WebVersion.rst
6, http://visualne.wordpress.com/2012/12/09/openstack-folsom-quantum-ovs-agent-gre-tunnels/
7, https://answers.launchpad.net/quantum/+question/216207
8, http://blog.csdn.net/yahohi/article/details/6631934
9, http://openvswitch.org/pipermail/dev/2012-May/017189.html
10, http://pastebin.com/D22zhiEY
11, http://brezular.wordpress.com/2011/12/04/part4-openvswitch-playing-with-bonding-on-openvswitch/
12, http://en.wikibooks.org/wiki/QEMU/Images
13, http://networkstatic.net/open-vswitch-gre-tunnel-configuration/#!prettyPhoto
14, https://answers.launchpad.net/quantum/+question/216939
15, https://lists.launchpad.net/openstack/msg18693.html
16, http://wiki.openstack.org/ConfigureOpenvswitch





  相关解决方案
