基于模式驱动构建GraphQL应用程序 release 4.1.0 即将发布
支持生成Kotlin代码（预览阶段，目前仅支持JVM平台上的Kotlin）。
一个经典示例如下：
schema {query: Query
}type Query {hero(episode: Episode) : Characterhuman(id : String) : Humanhumans: [Human]droid(id: ID!) : Droid
}
enum Episode {NEWHOPEEMPIREJEDI
}interface Character {id: ID!name: String!friends: [Character]appearsIn: [Episode]!secretBackstory : String @deprecated(reason : "We have decided that this is not canon")
}type Human implements Character {id: ID!name: String!friends: [Character]appearsIn: [Episode]!homePlanet: StringsecretBackstory : String @deprecated(reason : "We have decided that this is not canon")email: Email
}type Droid implements Character {id: ID!name: String!friends: [Character]appearsIn: [Episode]!primaryFunction: StringsecretBackstory : String @deprecated(reason : "We have decided that this is not canon")

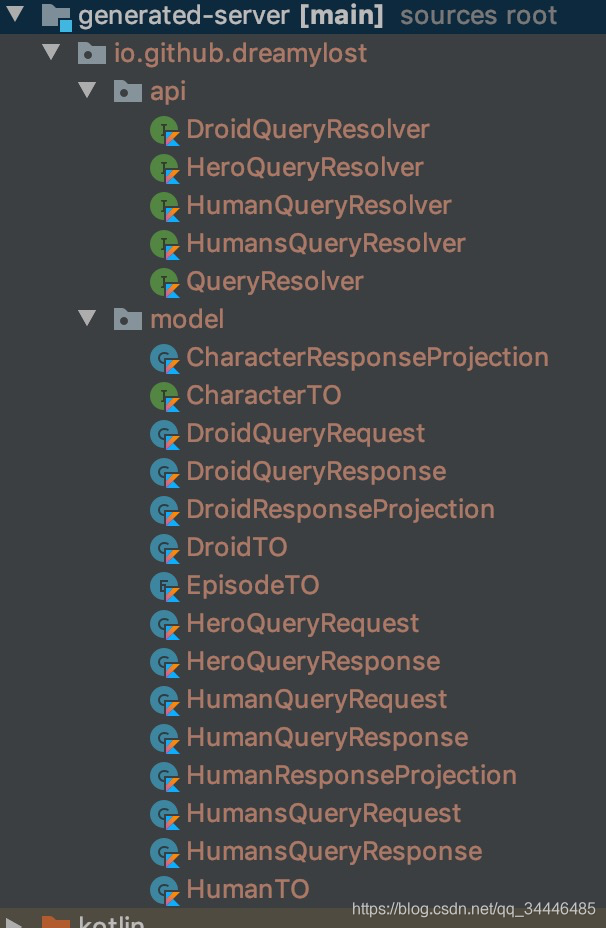

}scalar Email本次生成代码如下：
类型（type）
枚举（enum）
返回体（response）
返回体投影（response projection）
请求体（request）
操作（operations/resolver）
根据生成的代码，实现resolver接口即可。（创建默认的resolver实现的PR不被接受，所以只能一个个实现它了）
其中QueryResolver是个聚合接口，包含所有操作（每个操作对应一个服务端接口）
package io.github.dreamylostimport com.fasterxml.jackson.annotation.JsonInclude
import com.fasterxml.jackson.databind.DeserializationFeature
import com.fasterxml.jackson.module.kotlin.jsonMapper
import com.fasterxml.jackson.module.kotlin.kotlinModule
import com.fasterxml.jackson.module.kotlin.readValue
import com.kobylynskyi.graphql.codegen.model.graphql.GraphQLRequest
import io.github.dreamylost.api.QueryResolver
import io.github.dreamylost.model.*
import okhttp3.MediaType.Companion.toMediaTypeOrNull
import okhttp3.OkHttpClient
import okhttp3.Request
import okhttp3.RequestBody.Companion.toRequestBody/*** Server example at https://github.com/jxnu-liguobin/springboot-examples/tree/master/graphql-complete* (only a normal graphql server implement by java )* @author 梦境迷离* @version 1.0,2020/12/14*/
class QueryResolverImpl : QueryResolver {
override fun hero(episode: EpisodeTO?): CharacterTO? {
val heroQueryRequest = HeroQueryRequest()heroQueryRequest.setEpisode(episode)# 包含所有字段，递归类型的递归深度为3val characterResponseProjection = CharacterResponseProjection().`all$`(3)val graphQLRequest = GraphQLRequest(heroQueryRequest, characterResponseProjection)val ret = getResponse<HeroQueryResponse>(graphQLRequest)return ret.hero()}override fun human(id: String?): HumanTO? {
val humanQueryRequest = HumanQueryRequest()humanQueryRequest.setId(id)val humanResponseProjection = HumanResponseProjection().`all$`(1)val graphQLRequest = GraphQLRequest(humanQueryRequest, humanResponseProjection)val ret = getResponse<HumanQueryResponse>(graphQLRequest)return ret.human()}override fun humans(): List<HumanTO?>? {
val humanQueryRequest = HumansQueryRequest()val humanResponseProjection = HumanResponseProjection().`all$`(1)val graphQLRequest = GraphQLRequest(humanQueryRequest, humanResponseProjection)val ret = getResponse<HumansQueryResponse>(graphQLRequest)return ret.humans()}override fun droid(id: String): DroidTO? {
val productByIdQueryRequest = DroidQueryRequest()productByIdQueryRequest.setId(id)val droidResponseProjection = DroidResponseProjection().`all$`(1)val graphQLRequest = GraphQLRequest(productByIdQueryRequest, droidResponseProjection)val ret = getResponse<DroidQueryResponse>(graphQLRequest)return ret.droid()}
}inline fun <reified T> getResponse(request: GraphQLRequest, url: String = "http://localhost:8080/graphql"): T {
val json = "application/json; charset=utf-8".toMediaTypeOrNull()val body = request.toHttpJsonBody().toRequestBody(json)val client = OkHttpClient()val request = Request.Builder().post(body).url(url).build()val call = client.newCall(request)return Jackson.mapper.readValue<T>(call.execute().body!!.string())
}object Jackson {
val mapper = jsonMapper {
addModule(kotlinModule())configure(DeserializationFeature.FAIL_ON_UNKNOWN_PROPERTIES, false)serializationInclusion(JsonInclude.Include.NON_ABSENT)serializationInclusion(JsonInclude.Include.NON_NULL)}}
gradle配置如下
import com.kobylynskyi.graphql.codegen.model.GeneratedLanguage
import io.github.kobylynskyi.graphql.codegen.gradle.GraphQLCodegenGradleTaskplugins {
id 'java'id "org.jetbrains.kotlin.jvm" version "1.3.71"id "io.github.kobylynskyi.graphql.codegen" version "4.0.2-SNAPSHOT"
}group 'io.github.dreamylost'
version '1.0-SNAPSHOT'sourceCompatibility = 1.8sourceSets {
main.kotlin.srcDirs += "$buildDir/generated-server"
}repositories {
maven {
url 'https://repo.gradle.org/gradle/libs-releases-local'}mavenCentral()mavenLocal()jcenter()
}dependencies {
implementation "io.github.kobylynskyi:graphql-java-codegen:4.0.2-SNAPSHOT"implementation "javax.validation:validation-api:2.0.1.Final"implementation("com.squareup.okhttp3:okhttp:4.2.2")compile group: 'com.fasterxml.jackson.core', name: 'jackson-core', version: '2.12.0'compile group: 'com.fasterxml.jackson.core', name: 'jackson-databind', version: '2.12.0'compile group: 'com.fasterxml.jackson.module', name: 'jackson-module-kotlin', version: '2.12.0'compile group: 'com.fasterxml.jackson.core', name: 'jackson-annotations', version: '2.12.0'compile "org.jetbrains.kotlin:kotlin-stdlib-jdk8"testCompile group: 'junit', name: 'junit', version: '4.12'
}/*** Generate apis and models in Kotlin*/
compileKotlin.dependsOn "graphqlCodegenKotlinService"
sourceSets.main.java.srcDir "$buildDir/generated-server"
task graphqlCodegenKotlinService(type: GraphQLCodegenGradleTask) {
graphqlSchemas.includePattern = "schema\\.graphqls"outputDir = new File("$buildDir/generated-server")generateClient = truegenerateApis = truegeneratedLanguage = GeneratedLanguage.KOTLINgenerateBuilder = falsegenerateImmutableModels = trueapiPackageName = "io.github.dreamylost.api"modelPackageName = "io.github.dreamylost.model"customAnnotationsMapping = ["Character": ["@com.fasterxml.jackson.annotation.JsonTypeInfo(use=com.fasterxml.jackson.annotation.JsonTypeInfo.Id.NAME, include=com.fasterxml.jackson.annotation.JsonTypeInfo.As.PROPERTY,property = \"__typename\")","@com.fasterxml.jackson.annotation.JsonSubTypes(value = arrayOf(" + System.lineSeparator() +" com.fasterxml.jackson.annotation.JsonSubTypes.Type(value = HumanTO::class, name = \"Human\"), " + System.lineSeparator() +" com.fasterxml.jackson.annotation.JsonSubTypes.Type(value = DroidTO::class, name = \"Droid\")))"],]modelNameSuffix = "TO"
}
使用
class QueryResolverMain {
companion object {
@JvmStaticfun main(args: Array<String>) {
val queryResolverImpl = QueryResolverImpl()println("r1")val r1 = queryResolverImpl.droid("2001")println(r1)println("r2")val r2 = queryResolverImpl.humans()println(r2)println("r3")val r3 = queryResolverImpl.hero(EpisodeTO.EMPIRE)println(r3)println("r4")val r4 = queryResolverImpl.human("1002")println(r4)}}
}
