文章目录
- 1. 基本框架
- 2. CESM components
- 3. grid
- 4. compset
-
- 4.1 命名规范：
- 4.2 分类
- 4.3 options
- 4.4 Examples of simulations using different compsets:

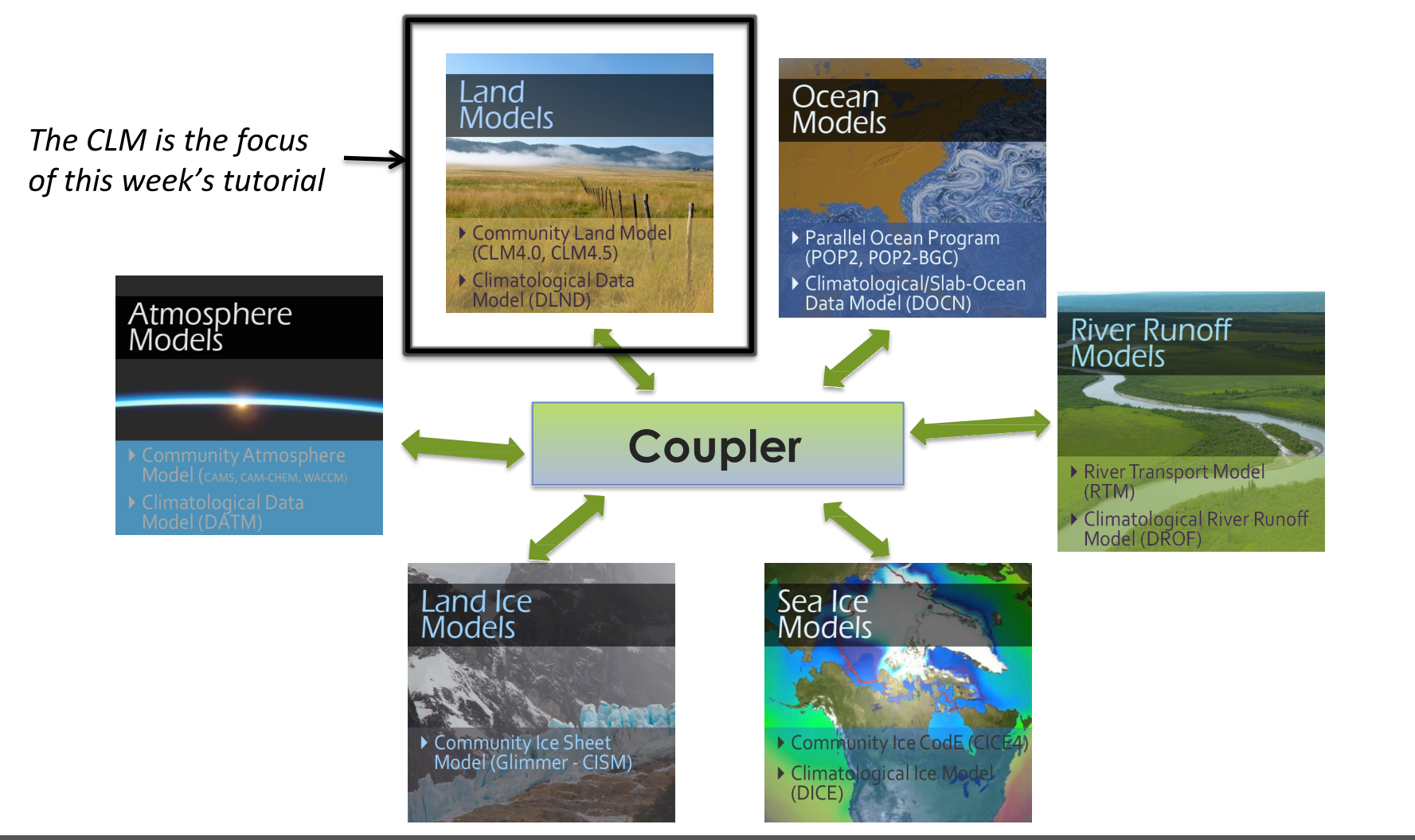

1. 基本框架
Coupler
Atmosphere Models
- CAM,CAM-CHEM,WACCM Community Atmosphere Model
- DATM Climatological Data Model
Land Models
- CLM5 Community Land Model
- DLND Climatological Data Model
Ocean Models
- POP2, POP2-BGC Parallel Ocean Program
- DOCN Climatological/Slab-Ocean Data Model
River Runoff Models
- RTM River Transport Model
- DROF Climatological River Runoff Model
Sea Ice Models
- CICE4 Community Ice CodE
- DICE Climatological Ice Model
Land Ice Models
- CISM Community Ice Sheet Model
2. CESM components
| component | type | name |
|---|---|---|
| Atmosphere Models | Active / Prognostic Atmosphere | CAM |
| Atmosphere Models | Climatological Data Atmosphere | DATM |
| Land Models | Active / Prognostic Land | CLM |
| Land Models | Climatological Data Land | DLND |
| River Models | Active / Prognostic River Runoff Model | MOSART |
| River Models | Active / Prognostic River Runoff Model | RTM |
| River Models | Climatological Data River | DROF |
| Ocean Models | Active / Prognostic Ocean | POP2 |
| Ocean Models | Climatological Data Ocean | DOCN (Includes Aquaplanet) |
| Sea Ice Models | Active / Prognostic Sea Ice | CICE |
| Sea Ice Models | Climatological Data Sea Ice | DICE |
| Wave Models | Active / Prognostic Wave | WW3 |
| Wave Models | Climatological Data Wave | DWAV |
| Land Ice Model | Active / Prognostic Land Ice | CISM |
| coupler | Active | cpl |

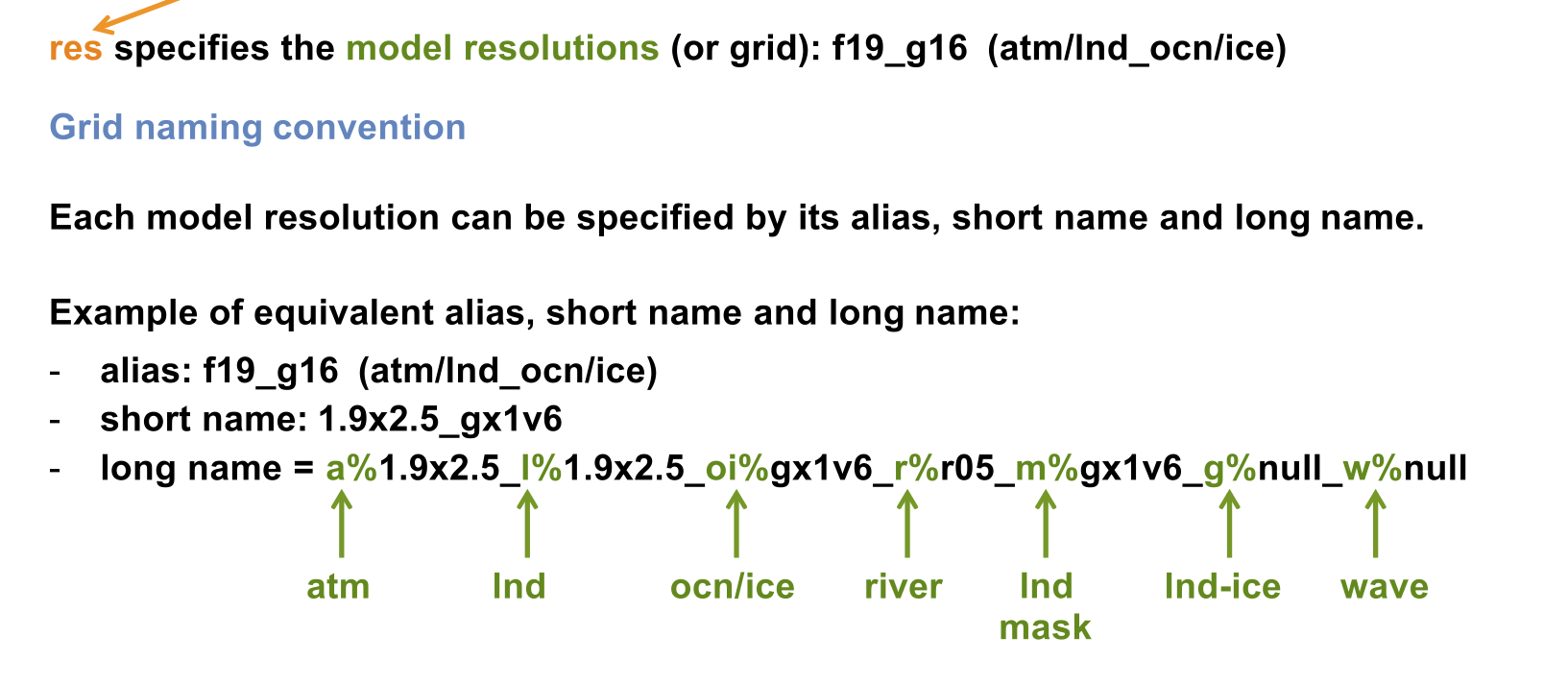

3. grid
分辨率有三种命名方式：
- alias: f09_f09, f09_g17, f09_f09_mg17
- short name: 0.91.25_0.91.25, 1.9*2.5_gx1v6
- long name: a%1.92.5_I%1.92.5_oi%gx1v6_r%r05_m%gx1v6_g%null_w%null
分辨率长名称的命名规范：
a%name_l%name_oi%name_r%name_m%mask_g%name_w%name
where
a% => atm, l% => lnd, oi% => ocn/ice, r% => river, m% => mask, g% => glc, w% => wav

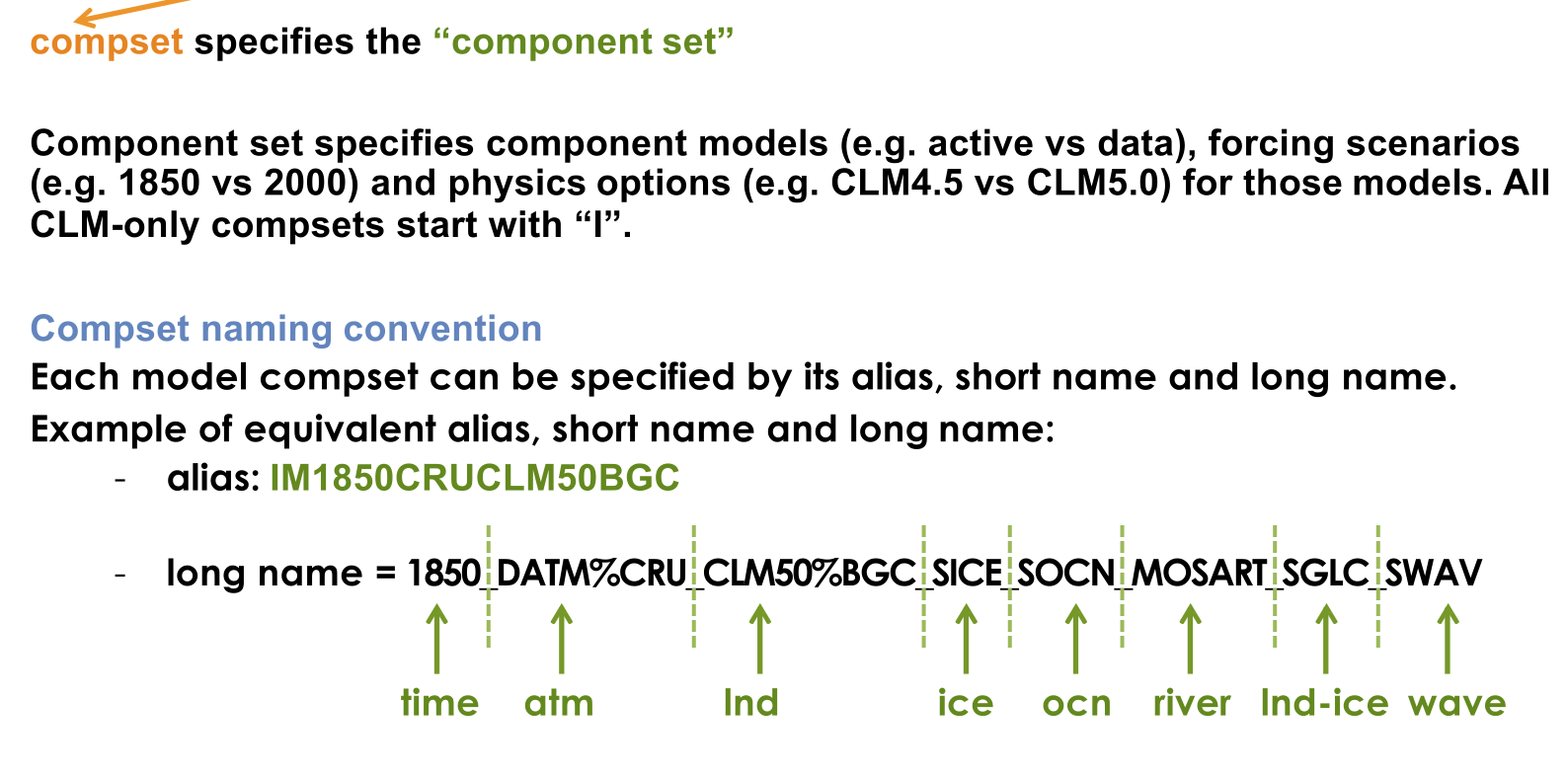

4. compset
4.1 命名规范：
- alias
- short name
- long name：以_分割，分别为时间，各个组件名称

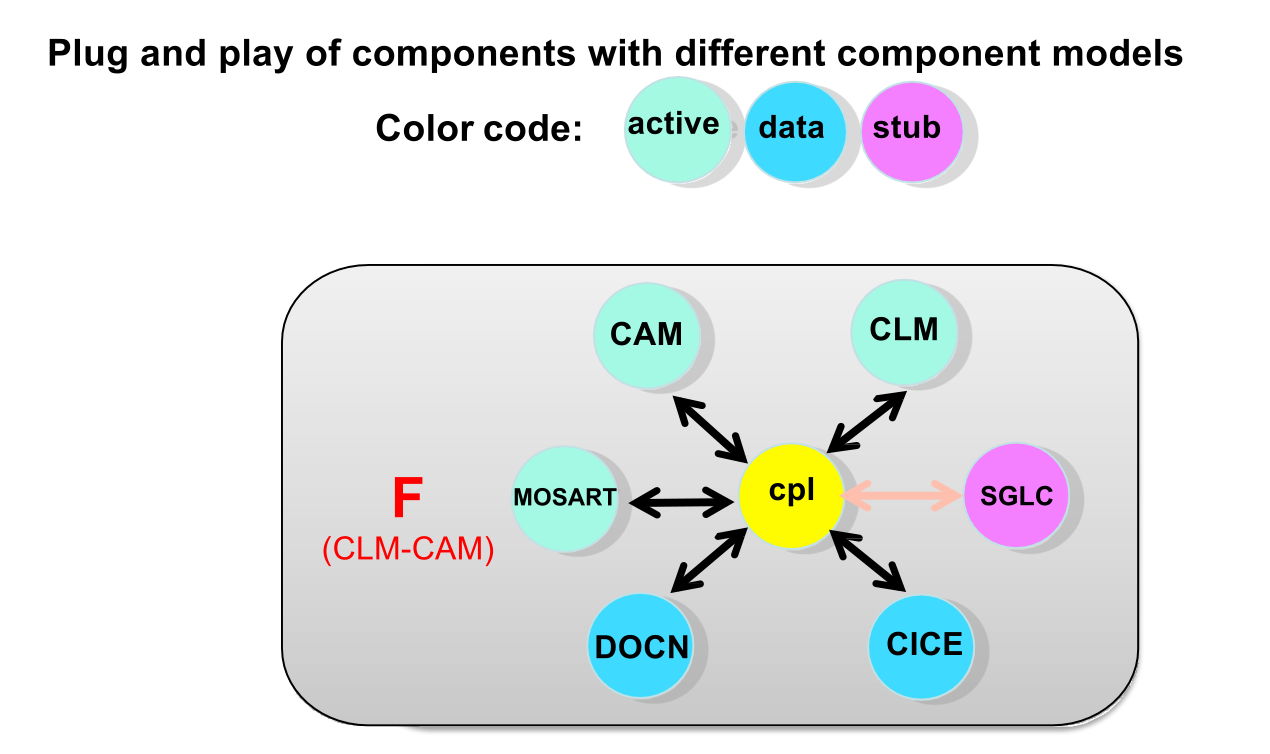

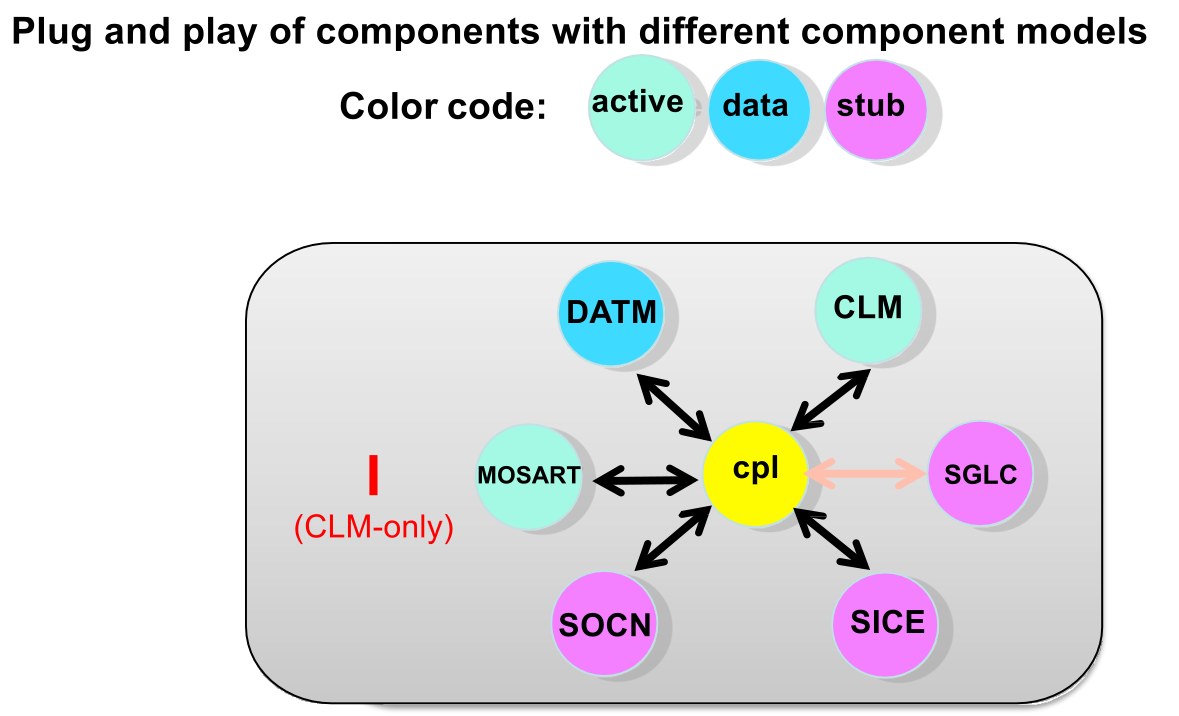

4.2 分类
- AcCve: SimulaFon is using the code from the model during the run
- Data: SimulaFon is reading in data from a file for this component
- Stub: Component is not being used
4.3 options
Some component options:
- Year (1850, 2000, transient, etc.)
- Data atmosphere (GSWP3, CRUNCEP , CPLHIST3HrWx)
- Model options (SP [satellite phenology], BGC [biogeochemistry])
- RCP scenarios
4.4 Examples of simulations using different compsets:
- Stabilize (“spin up”) a biogeochemsitry (includes N & C cycles) simulation for 1850 （控制实验，1850作预热）
- Run a transient historical simulation from 1850-2000 based on the 1850 spin up （HIST作历史输出）
- Run a transient future simulation from 2000 through 2100 using RCP8.5 （RCP未来情景预测）
- Run a “time slice” simulation for 2000 （）
