Guava-RateLimiter实现令牌桶控制接口限流方案（注解方式）

常见限流方案

1.计数器法

• 原理：在单位时间段内，对请求数进行计数，如果数量超过了单位时间的限制，则执行限流策略，当单位时间结束后，计数器清零，这个过程周而复始，就是计数器法。
• 缺点：不能均衡限流，在一个单位时间的末尾和下一个单位时间的开始，很可能会有两个访问的峰值，导致系统崩溃。
• 改进方式：可以通过减小单位时间来提高精度。

2.漏桶算法

• 原理：假设有一个水桶，水桶有一定的容量，所有请求不论速度都会注入到水桶中，然后水桶以一个恒定的速度向外将请求放出，当水桶满了的时候，新的请求被丢弃。
• 优点：可以平滑请求，削减峰值。
• 缺点：瓶颈会在漏出的速度，可能会拖慢整个系统，且不能有效地利用系统的资源。

3.令牌桶算法(推荐)

• 原理：有一个令牌桶，单位时间内令牌会以恒定的数量（即令牌的加入速度）加入到令牌桶中，所有请求都需要获取令牌才可正常访问。当令牌桶中没有令牌可取的时候，则拒绝请求。
• 优点：相比漏桶算法，令牌桶算法允许一定的突发流量，但是又不会让突发流量超过我们给定的限制（单位时间窗口内的令牌数）。即限制了我们所说的 QPS(每秒查询率)。

实现

1.依赖

<dependency><groupId>com.google.guava</groupId><artifactId>guava</artifactId><version>27.1-jre</version>
</dependency>

2.注解类

import java.lang.annotation.*;
import java.util.concurrent.TimeUnit;/*** @author EDZ* @Classname RequestLimiter* @Description TODO* @Date 2020/6/29 17:46* @Created zzf*/
@Target({ElementType.METHOD})
@Retention(RetentionPolicy.RUNTIME)
@Documented
public @interface RequestLimiter {/*** 每秒创建令牌个数，默认:10*/double QPS() default 10D;/*** 获取令牌等待超时时间 默认:500*/long timeout() default 500;/*** 超时时间单位 默认:毫秒*/TimeUnit timeunit() default TimeUnit.MILLISECONDS;/*** 无法获取令牌返回提示信息*/String msg() default "服务器繁忙,请稍后重试!";
}

3.定义一个枚举类用于状态返回

/*** @Classname ResponseEnum* @Description TODO* @Date 2020/6/29 17:52* @Created zzf*/
public enum ResponseEnum {SUCCESS("200", "000000", "请求成功"),FAIL("200", "100000", "请求失败"),FAIL_BY_PARAMS("200", "200000", "请求参数异常"),FAIL_IN_SERVER("200", "300000", "服务器内部异常"),RATE_LIMIT("200", "400000", "限流中");public String status;public String code;public String message;ResponseEnum(String s, String s1, String s2) {this.status = s;this.code = s1;this.message = s2;}
}

4.自定义拦截器，并在拦截器中实现限流

import com.alibaba.fastjson.JSON;
import com.ils.intelab.common.result.CommonResult;
import com.ils.intelab.openapi.client.enums.ResponseEnum;
import com.ils.intelab.openapi.client.result.OpenApiResultCode;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.http.MediaType;
import org.springframework.web.servlet.handler.HandlerInterceptorAdapter;import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.PrintWriter;/*** 抽象拦截器*/
public abstract class AbstractInterceptor extends HandlerInterceptorAdapter {private Logger logger = LoggerFactory.getLogger(AbstractInterceptor.class);@Overridepublic boolean preHandle(HttpServletRequest request, HttpServletResponse response, Object handler) throws Exception {ResponseEnum result;try {result = preFilter(request, response, handler);} catch (Exception e) {logger.error("preHandle catch a exception:" + e.getMessage());result = ResponseEnum.FAIL;}if (ResponseEnum.SUCCESS.code.equals(result.code)) {return true;}handlerResponse(result, response);return false;}/*** 自定义pre处理** @param request* @return*/protected abstract ResponseEnum preFilter(HttpServletRequest request, HttpServletResponse response, Object handler);/*** 错误处理事件** @param result* @param response*/private void handlerResponse(ResponseEnum result, HttpServletResponse response) {CommonResult commonResult = new CommonResult();commonResult.setData(null);CommonResult<Object> errorInfo = new CommonResult<>();errorInfo.setCodes(OpenApiResultCode.ERROR_DEFAULT_NOT_CATCH.getCode());errorInfo.setSuccess(false);errorInfo.setMessage(OpenApiResultCode.errorMessageByLanguage.get("zh").get(OpenApiResultCode.ERROR_DEFAULT_NOT_CATCH.getMessage()));errorInfo.setData(null);response.setStatus(HttpServletResponse.SC_OK);response.setContentType(MediaType.APPLICATION_JSON_UTF8_VALUE);PrintWriter printWriter = null;try {printWriter = response.getWriter();printWriter.write(JSON.toJSONString(errorInfo));} catch (Exception e) {logger.error("handlerResponse catch a exception:" + e.getMessage());} finally {if (printWriter != null) {printWriter.close();}}}
}

实现

import com.google.common.util.concurrent.RateLimiter;
import com.ils.intelab.openapi.annotation.RequestLimiter;
import com.ils.intelab.openapi.client.enums.ResponseEnum;
import lombok.extern.slf4j.Slf4j;
import org.springframework.stereotype.Component;
import org.springframework.web.method.HandlerMethod;import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.util.Map;
import java.util.concurrent.ConcurrentHashMap;/*** 请求限流器* @Classname RequestLimiterInterceptor* @Description TODO* @Date 2020/6/29 17:47* @Created zzf*/
@Slf4j
@Component
public class RequestLimiterInterceptor extends AbstractInterceptor {/*** 不同的方法存放不同的令牌桶*/private final Map<String, RateLimiter> rateLimiterMap = new ConcurrentHashMap<>();@Overrideprotected ResponseEnum preFilter(HttpServletRequest request, HttpServletResponse response, Object handler) {try {if (handler instanceof HandlerMethod) {HandlerMethod handlerMethod = (HandlerMethod) handler;RequestLimiter rateLimit = handlerMethod.getMethodAnnotation(RequestLimiter.class);//判断是否有注解if (rateLimit != null) {// 获取请求urlString key = request.getMethod() + request.getRequestURI();RateLimiter rateLimiter;// 判断map集合中是否有创建好的令牌桶if (!rateLimiterMap.containsKey(key)) {// 创建令牌桶,以n r/s往桶中放入令牌rateLimiter = RateLimiter.create(rateLimit.QPS());rateLimiterMap.put(key, rateLimiter);}rateLimiter = rateLimiterMap.get(key);// 获取令牌boolean acquire = rateLimiter.tryAcquire(rateLimit.timeout(), rateLimit.timeunit());if (acquire) {//获取令牌成功return ResponseEnum.SUCCESS;} else {log.warn("请求被限流,url:{}", request.getServletPath());return ResponseEnum.RATE_LIMIT;}}}return ResponseEnum.SUCCESS;} catch (Exception var6) {var6.printStackTrace();return ResponseEnum.RATE_LIMIT;}}}

5.继承WebMvcConfigurerAdapter来添加自定义拦截器

import com.ils.intelab.openapi.aspect.RequestLimiterInterceptor;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.servlet.config.annotation.InterceptorRegistry;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurer;/*** 注册拦截器*/
@Configuration
public class WebMvcConfig implements WebMvcConfigurer {/*** 请求限流拦截器*/@Autowiredprotected RequestLimiterInterceptor requestLimiterInterceptor;public WebMvcConfig() {}@Overridepublic void addInterceptors(InterceptorRegistry registry) {// 请求限流registry.addInterceptor(requestLimiterInterceptor).addPathPatterns("/**");}}

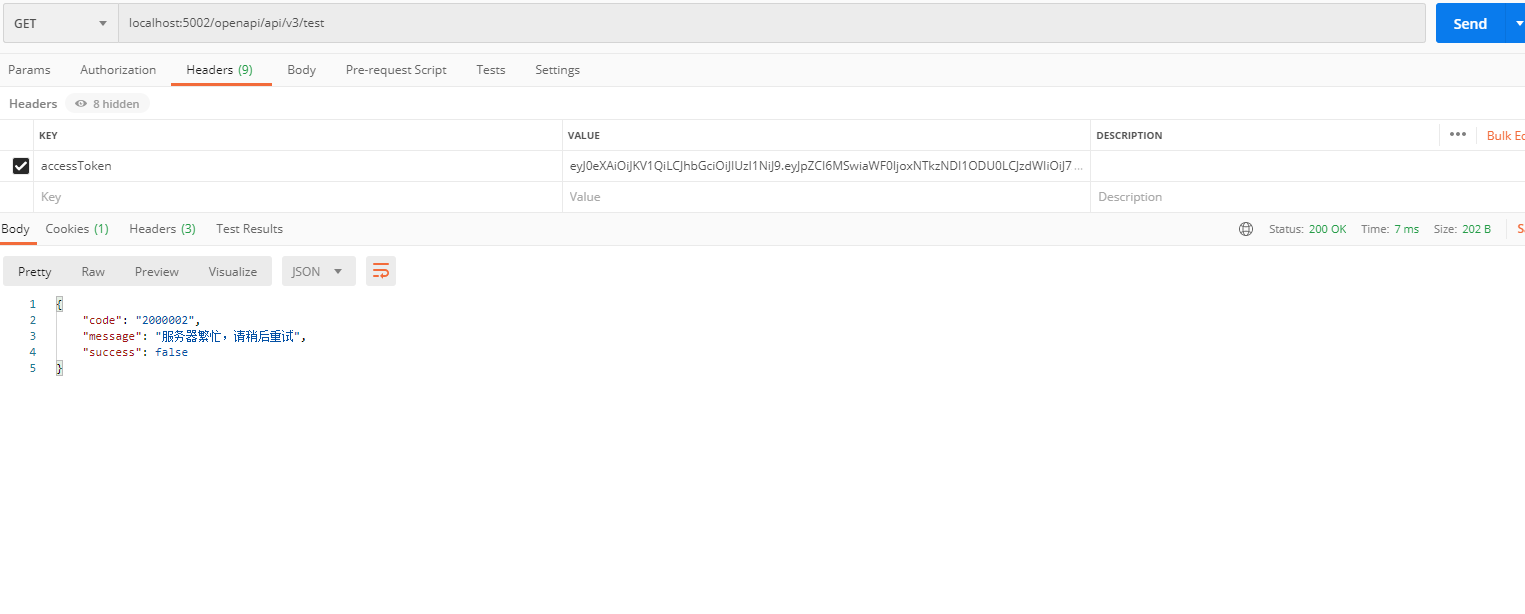

6.测试

import com.ils.intelab.common.result.CommonResult;
import com.ils.intelab.openapi.annotation.RequestLimiter;
import io.swagger.annotations.*;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.RestController;import java.util.concurrent.TimeUnit;/*** @Classname TestController* @Description TODO* @Date 2020/5/27 9:50* @Created zzf*/
@RestController
@RequestMapping("/api/v3/")
@Api(value = "open_api", description = "open_api基础接口", tags = {"open_api"})
public class TestController {@ApiOperation(value = "测试", notes = "测试")@ApiResponses({@ApiResponse(code = 400, message = "参数非法"),@ApiResponse(code = 500, message = "服务器错误"),@ApiResponse(code = 200, message = "成功")})@ApiImplicitParams({})@RequestLimiter(QPS = 1, timeout = 200, timeunit = TimeUnit.MILLISECONDS, msg = "服务器繁忙,请稍后再试")@RequestMapping(value = "/test", method = RequestMethod.GET)public CommonResult<String> getUserInfo() {return new CommonResult<>("999");}
}
