Service类与 Activity类的原理类似,只是Service类并不像Activity一样提供与用户交互的表示层。Service是一种后台运行的Android组件,位于android.app包下。
当应用程序不需要在前台显示某些界面时,可以使用Service来完成,比如后台的数据计算,后台音乐播放等。
这个小例子是同时介绍Service组件与BroadcastReceiver组件联合使用的方法,在例子中使用java代码动态注册 BroadcastReceiver 并且通过前台的用户界面控制后台服务的进行。

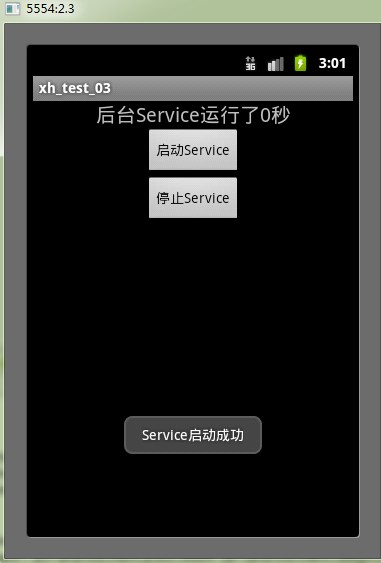

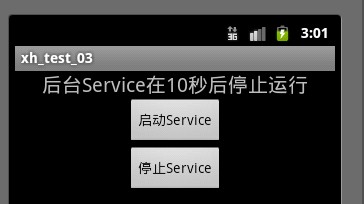

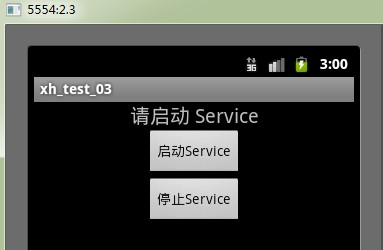

运行如下
strings.xml
<?xml version="1.0" encoding="utf-8"?><resources> <string name="hello">请启动 Service</string> <string name="app_name">xh_test_03</string> <string name="myButton1">启动Service</string> <string name="myButton2">停止Service</string></resources>
布局文件main.xml
<?xml version="1.0" encoding="utf-8"?><LinearLayout xmlns:android="http://schemas.android.com/apk/res/android" android:orientation="vertical" android:layout_width="fill_parent" android:layout_height="fill_parent" android:gravity="center_horizontal" ><TextView android:id="@+id/myTextView" android:layout_width="fill_parent" android:layout_height="wrap_content" android:textSize="20px" android:gravity="center_horizontal" android:text="@string/hello" /><Button android:id="@+id/myButton1" android:layout_width="wrap_content" android:layout_height="wrap_content" android:text="@string/myButton1"/><Button android:id="@+id/myButton2" android:layout_width="wrap_content" android:layout_height="wrap_content" android:text="@string/myButton2"/></LinearLayout>
Service类 MyService
package xiaohang.zhimeng;import android.app.Service;import android.content.Intent;import android.os.IBinder;public class MyService extends Service { MyThread myThread; @Override public IBinder onBind(Intent intent) { return null; } @Override public void onDestroy() { myThread.flag = false; super.onDestroy(); } @Override public void onStart(Intent intent, int startId) { myThread = new MyThread(); myThread.start(); super.onStart(intent, startId); } class MyThread extends Thread { boolean flag = true; int c = 0; @Override public void run() { while (flag) { Intent i = new Intent("xiaohang.zhimeng.myThread"); i.putExtra("myThread", c); sendBroadcast(i); c++; try { // 睡眠指定毫秒数 Thread.sleep(1000); } catch (Exception e) { e.printStackTrace(); } } } };}
Activity类 Activity01
package xiaohang.zhimeng;import android.app.Activity;import android.content.BroadcastReceiver;import android.content.Context;import android.content.Intent;import android.content.IntentFilter;import android.os.Bundle;import android.view.View;import android.view.View.OnClickListener;import android.widget.Button;import android.widget.TextView;import android.widget.Toast;public class Activity01 extends Activity { Button button1; Button button2; TextView myTextView; @Override public void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.main); button1 = (Button) this.findViewById(R.id.myButton1); button2 = (Button) this.findViewById(R.id.myButton2); myTextView = (TextView) this.findViewById(R.id.myTextView); button1.setOnClickListener(new OnClickListener() { public void onClick(View v) { Intent i = new Intent(Activity01.this, MyService.class); startService(i); Toast.makeText(Activity01.this, "Service启动成功", Toast.LENGTH_SHORT).show(); } }); button2.setOnClickListener(new OnClickListener() { public void onClick(View v) { // 创建Intent Intent i = new Intent(Activity01.this, MyService.class); stopService(i); Toast.makeText(Activity01.this, "Service停止成功", Toast.LENGTH_SHORT).show(); } }); // 创建IntentFilter过滤器 IntentFilter intentFilter = new IntentFilter( "xiaohang.zhimeng.myThread"); MyBroadcasReceiver myBroadcasReceiver = new MyBroadcasReceiver(); registerReceiver(myBroadcasReceiver, intentFilter); } public class MyBroadcasReceiver extends BroadcastReceiver { @Override public void onReceive(Context context, Intent intent) { // 获得Intent中的数据 Bundle myBundle = intent.getExtras(); int myInt = myBundle.getInt("myThread"); if (myInt < 10) { myTextView.setText("后台Service运行了" + myInt + "秒"); } else { Intent i = new Intent(Activity01.this, MyService.class); // 停止服务 stopService(i); myTextView.setText("后台Service在" + myInt + "秒后停止运行"); } } }}

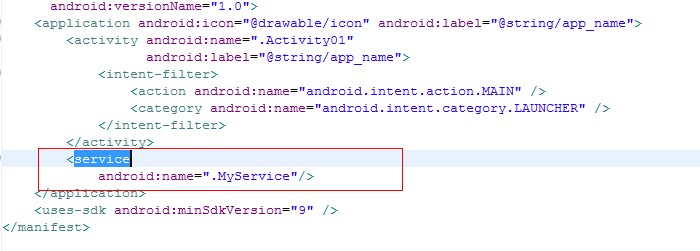

最后在若弱的 提醒大家一句 服务需要在 AndroidManifest.xml中声明一下
源码见附件
1 楼 xujun029 2011-09-18
2 楼 wangkaiyuan_1982 2012-05-04
AndroidManifest.xml中声明
