ESP32 固件头部分析

热度:102   发布时间:2023-09-28 05:28:48.0

1. 在ESP32固件的头部包含了288字节的描述信息。

在ESP32 D:\esp-idf-v4.1\components\bootloader_support\include\esp_app_format.h文件中包含了以下3段头部信息,分别描述了不同的信息,其中第三段描述应用程序的信息。

typedef struct {
    uint8_t magic;              /*!< Magic word ESP_IMAGE_HEADER_MAGIC */
    uint8_t segment_count;      /*!< Count of memory segments */
    uint8_t spi_mode;           /*!< flash read mode (esp_image_spi_mode_t as uint8_t) */
    uint8_t spi_speed: 4;       /*!< flash frequency (esp_image_spi_freq_t as uint8_t) */
    uint8_t spi_size: 4;        /*!< flash chip size (esp_image_flash_size_t as uint8_t) */
    uint32_t entry_addr;        /*!< Entry address */
    uint8_t wp_pin;            /*!< WP pin when SPI pins set via efuse (read by ROM bootloader,
                                * the IDF bootloader uses software to configure the WP
                                * pin and sets this field to 0xEE=disabled) */
    uint8_t spi_pin_drv[3];     /*!< Drive settings for the SPI flash pins (read by ROM bootloader) */
    esp_chip_id_t chip_id;      /*!< Chip identification number */
    uint8_t min_chip_rev;       /*!< Minimum chip revision supported by image */
    uint8_t reserved[8];       /*!< Reserved bytes in additional header space, currently unused */
    uint8_t hash_appended;      /*!< If 1, a SHA256 digest "simple hash" (of the entire image) is appended after the checksum.
                                 * Included in image length. This digest
                                 * is separate to secure boot and only used for detecting corruption.
                                 * For secure boot signed images, the signature
                                 * is appended after this (and the simple hash is included in the signed data). */
} __attribute__((packed))  esp_image_header_t;

typedef struct {
    uint32_t load_addr;     /*!< Address of segment */
    uint32_t data_len;      /*!< Length of data */
} esp_image_segment_header_t;

typedef struct {
    uint32_t magic_word;        /*!< Magic word ESP_APP_DESC_MAGIC_WORD */
    uint32_t secure_version;    /*!< Secure version */
    uint32_t reserv1[2];        /*!< reserv1 */
    char version[32];           /*!< Application version */
    char project_name[32];      /*!< Project name */
    char time[16];              /*!< Compile time */
    char date[16];              /*!< Compile date*/
    char idf_ver[32];           /*!< Version IDF */
    uint8_t app_elf_sha256[32]; /*!< sha256 of elf file */
    uint32_t reserv2[20];       /*!< reserv2 */
} esp_app_desc_t;

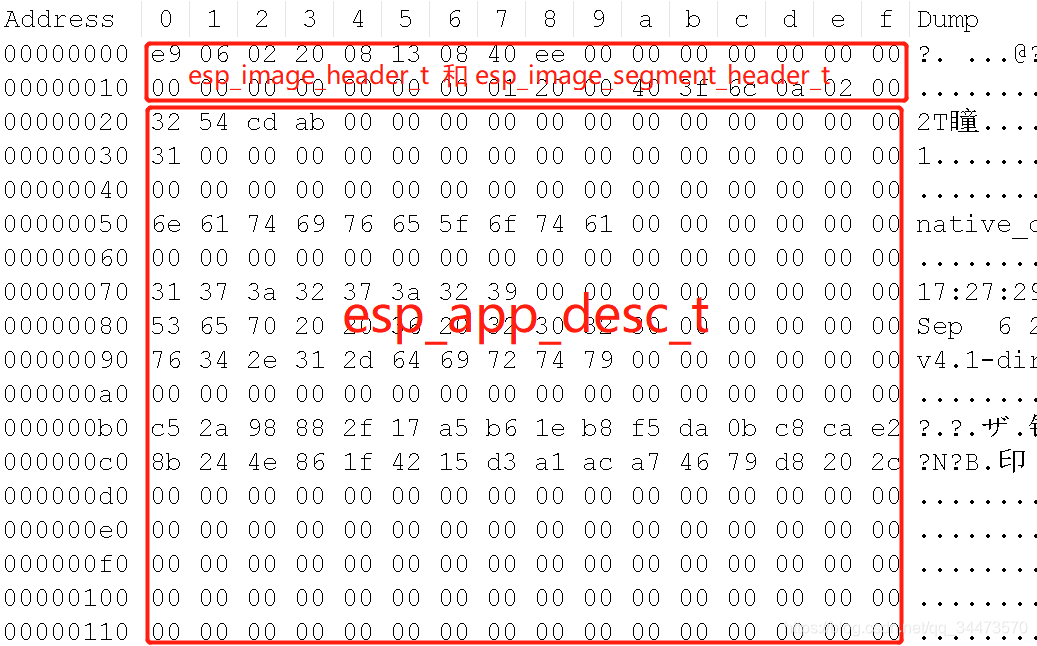

上述结构体字段与编译好的bin文件在字节上的对应关系。
