HTML5 Canvas双缓存实例

转自：http://www.108js.com/article/article3/30046.html?id=255

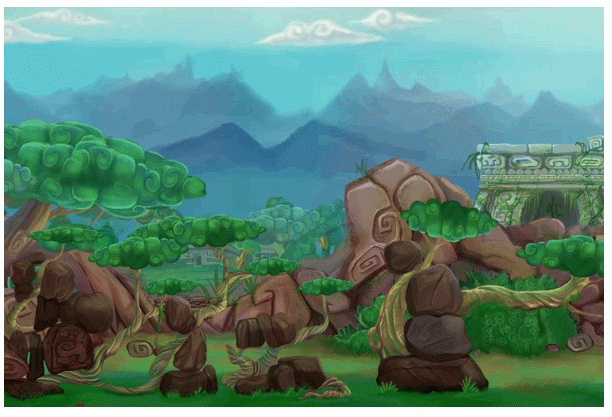

下面是用HTML5的<canvas>标签写的一个视差滚动动画的示例。采用了制作动画或者游戏编程中常用的双缓冲技术：获取到页面中的Canvas对象之后，创建了一个与页面Canvas同样大小的Canvas对象。绘图时先将图像绘制到缓冲Canvas中，等到每一桢的图像绘制完全后在把整个缓冲Canvas绘制到页面Canvas中。前景、中景、远景的视差通过控制移动速度来实现。整个动画的绘制部分只使用了Context对象的drawImage()方法。

<html>
<body>
??<canvas id="canvas" width="600" height="400">?
???<p>Your browser does not support the canvas element</p>?
??</canvas>?
</body>
<script>

const FPS = 30;
 const SECONDS_BETWEEN_FRAMES = 1 / FPS;

 var bg0 = new Image();
 var bg1 = new Image();
 var bg2 = new Image();

 var x = 0;
 const RATE = 50 * SECONDS_BETWEEN_FRAMES;
 const WIDTH = 600;
 const HEIGHT = 320;

 var canvas;
 var canvasBuffer;
 var context;
 var contextBuffer;

 window.onload = init;

 function init() {
    bg0.src = "b0.png";
    bg1.src = "b1.png";
    bg2.src = "b2.png";

    canvas = document.getElementById("canvas");
    canvasBuffer = document.createElement("canvas");
    canvasBuffer.width = canvas.width;
    canvasBuffer.height = canvas.height;
    context = canvas.getContext("2d");
    contextBuffer = canvasBuffer.getContext("2d");
    context.clearRect(0, 0, canvas.width, canvas.height)
    contextBuffer.clearRect(0, 0, canvasBuffer.width, canvasBuffer.height);

    setInterval(animation, SECONDS_BETWEEN_FRAMES);
}

function animation() {
    x += RATE;

    context.clearRect(0, 0, canvas.width, canvas.height)
    contextBuffer.clearRect(0, 0, canvasBuffer.width, canvasBuffer.height);

    drawBuffer(bg0, 0, 0, 0.5);
    drawBuffer(bg1, 0, 100, 0.75);
    drawBuffer(bg2, 0, 100, 1);
    context.drawImage(canvasBuffer, 0, 0);
}

function drawBuffer(image, dx, dy, factor) {
    var left = (x * factor) % image.width;
    if (left + WIDTH >= image.width) {
        var d0 = image.width - left;
        var d1 = WIDTH - d0;
        contextBuffer.drawImage(image, left, 0, d0, HEIGHT, dx, dy, d0, HEIGHT);
        contextBuffer.drawImage(image, 0, 0, d1, HEIGHT, dx + d0, dy, d1, HEIGHT);
    }
    else {
        contextBuffer.drawImage(image, left, 0, WIDTH, HEIGHT, dx, dy, WIDTH, HEIGHT);
    }
}

</script>
</html>
??顺带一提的是在Canvas画布中绘制图形，一般情况下后绘制的会覆盖先绘制的，所以在绘制图像的时候需要先绘制远景b0，再绘制中景b1，最后绘制近景b2。
